Connection and Network Setup:

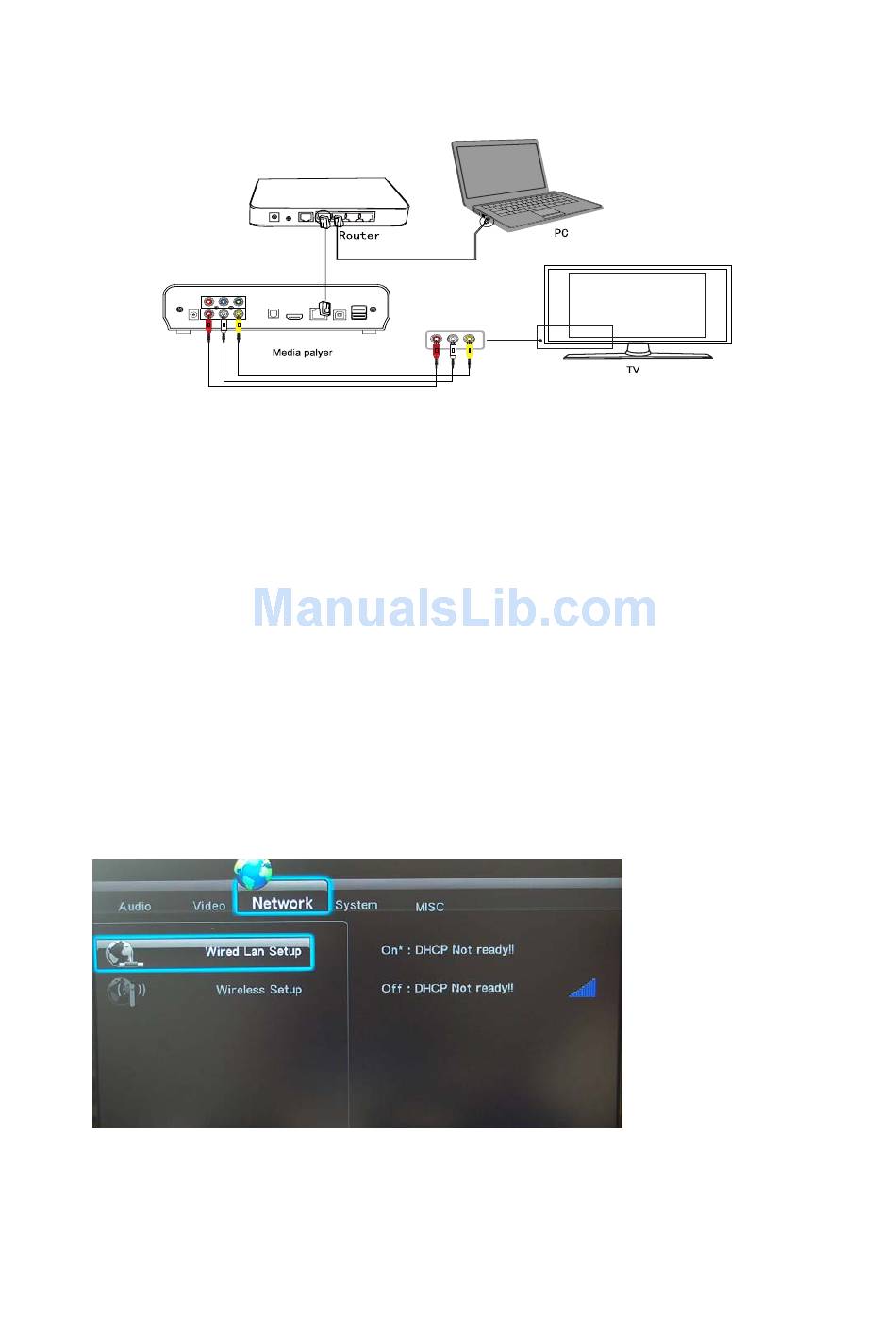

With UPnP and Samba Client support your Cyclone MKV 2 is able to play
media files stored on a PC directly through the local area network via a router.
Connect a RJ45 Ethernet cable* into the Ethernet port. Connect the other
end of the cable into your router.
The Cyclone MKV 2 also allows wireless connectivity. To connect to your
network wirelessly plug in a compatible Wireless N USB Adapter into an
available USB port on the Cyclone MKV 2.
This section should be done once you have setup your video output and the
TV is displaying the main menu.
To setup your network select the "setup" icon on the main menu. Alternatively,
press the SETUP button on the remote control.
Navigate to the "Network" setup screen. On this screen you will be given the
option "Wired LAN Setup" and "Wireless Setup".
* Please note RJ45 cable is not supplied with this product.
