Basic Setup:

Important Notice:
To setup up your media enclosure you will need to connect it to your TV set
and supply power to the MKV 2 enclosure. You may also wish to connect the
Cyclone MKV 2 to your surround sound system, wireless or wired network
and attach an external hard drive.
First of all examine the back of your TV set and locate its AV ports. Please
make sure you have the correct cables for your chosen setup.

Connecting Power:

Please ensure the power socket switch is in the off position before plugging in
the power adapter to the wall.
Connect the power adapter (supplied) to the back of your Cyclone MKV 2 and
plug the power into the power socket. You will notice the standby LED is now
lit.

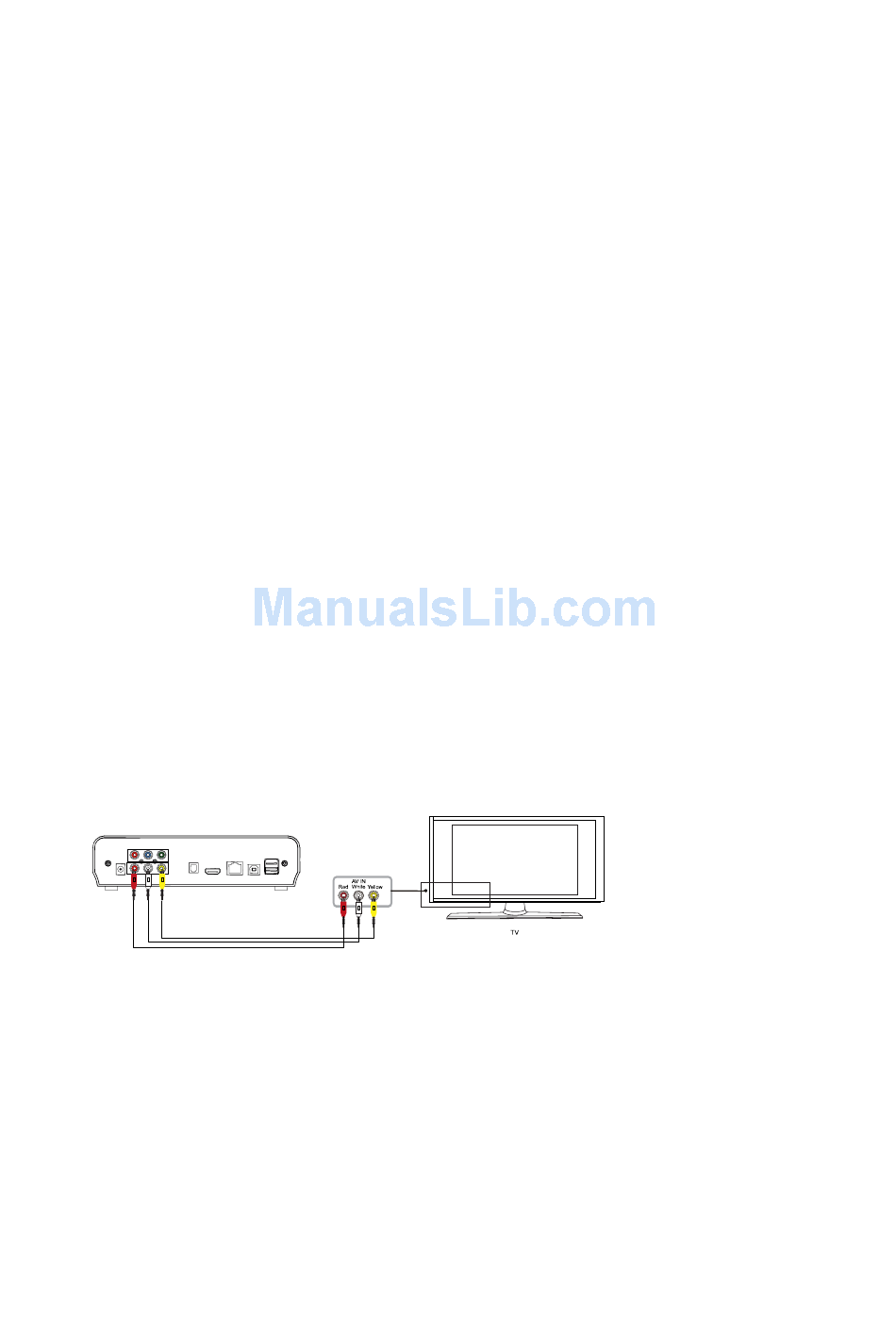

AV Cable:

Connecting the Cyclone MKV 2 to your TV will allow you to view multimedia in
standard definition.
Using the AV lead (supplied), connect the 3.5mm jack into the 3.5mm
composite port on the back of the Cyclone MKV 2. On the other end of the
cable plug the red, yellow and white connectors into the corresponding input
ports of your TV.
Switch on your TV and select AV mode, if required.
If you wish to use the optional BitTorrent and Samba
features, it is advised to install the required files first. This
is because the initial installation requires the HDD to be
formatted after completion and may result in data loss.
Please refer to this manual's BitTorrent and formatting
sections for more information.
Cyclone MKV 2 Multimedia Enclosure
Page 17.
Version 1.2
