Cyclone MKV 2 Multimedia Enclosure
Press the POWER button on the remote control to switch on the Cyclone
MKV 2.

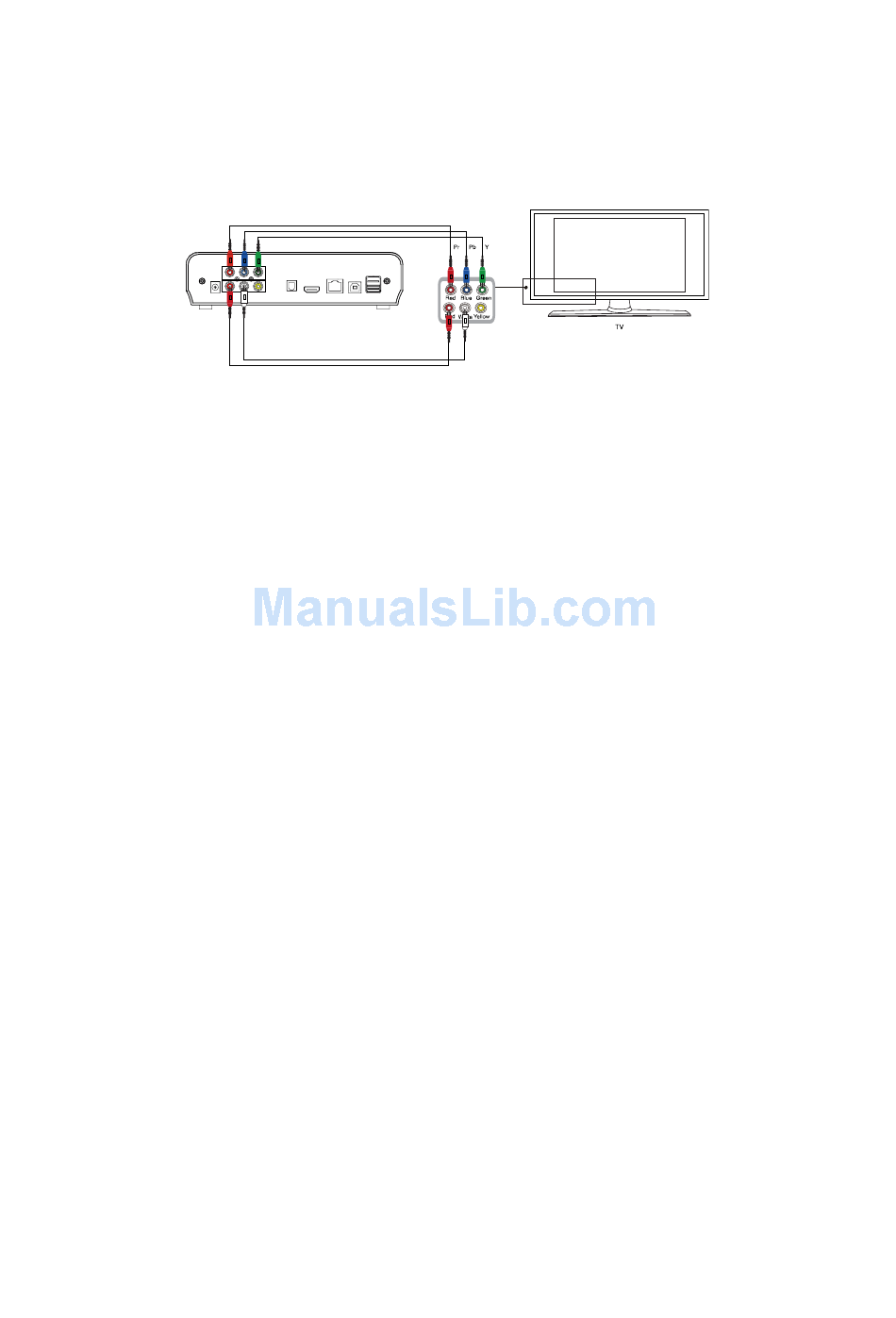

Component output connection (YPbPr)

Connecting the Cyclone MKV 2 to your TV via the component ports (YPbPr)
will provide a higher quality visual output than is possible with composite.
To connect the player via component cable*, plug the Red (Pr), Blue (Pb) and
Green (Y) connectors into the associated ports. On the other end of the cable
plug the Red, Blue and Green connectors into the corresponding input ports
of your TV.
It is important to note that the component cable will only carry video signals;
therefore you will need to plug in a separate AV cable for sound signals.
With the supplied AV cable, connect the Red and White connectors into the
Red and White audio output ports of the media player. At the other end of the
cable plug the Red and White connectors into the corresponding audio input
ports of your TV
Switch on your TV and select the appropriate input mode, if required.
It is not required to plug in the Yellow connector since the video signal is
provided by the component cable.
Press the standby button on the remote control to switch on the Cyclone MKV
2.
* Please note component cable is not included with this product.
Page 18.
Version 1.2
