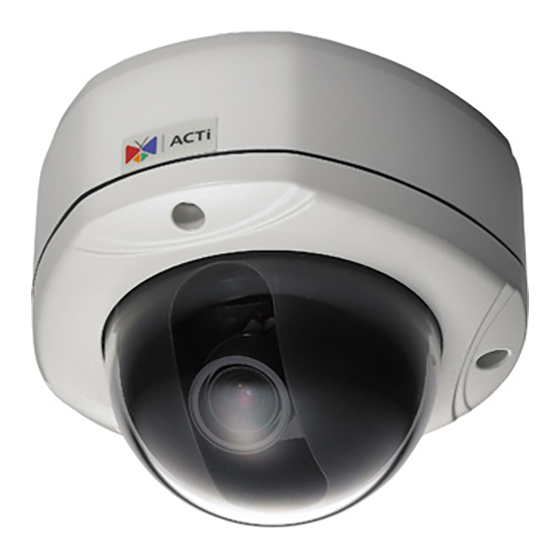

ACTi ACM-7511 Specifications

Fi xe d D o m e C am e ra
ACM-7511
PHOTO INDICATION
1
2
3
1 Reset Button
2 Ethernet Indicator LED
3 Composite Video Output
ACCESSORY OPTIONS
Dome Cover
PDCX-1101
w w w . a c t i . c o m
4
5
4 Audio Input / Output &
Digital Input / Output
5 DC 12V Power Input
4-inch, smoke, vandal proof
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/
IP D/N CCD Outdoor Vandal
Proof PoE Rugged Dome
• 1/3" Sony EXview HAD Interlaced Scan CCD
• Day and night function with mechanical IR cut filter
• Minimum illumination 0.05 lux at F1.2
• Built-in 3.7-12 mm / F1.4 DC iris vari-focal lens
• 25/30 fps at full D1 resolution
• Selectable MPEG-4 SP, MJPEG compressions
• Two-way audio
• Video motion detection
• Digital input and digital output
• Analog video output with 540 TVL
• Vandal proof and weatherproof IP66 rated casing
• Powered by PoE Class 3 / DC 12V
• ACM-7511N (NTSC) / ACM-7511P (PAL)

DIMENSION DIAGRAM

Popular Mounting Solutions
Surface Accessories not required
Wall PMAX-0308
Pendant PMAX-0101
PMAX-0103
Corner PMAX-0101
PMAX-0303
PMAX-0402
Pole PMAX-0101
PMAX-0303
PMAX-0502
Flush PMAX-1003
* For more mounting solutions, please refer to Mounting Accessory section of Buyer's
Guide or Project Planner v2.0 on www.acti.com
Unit: mm [inch]
+
+ +
+ +
100830
