SIDE VENTING (cont.)

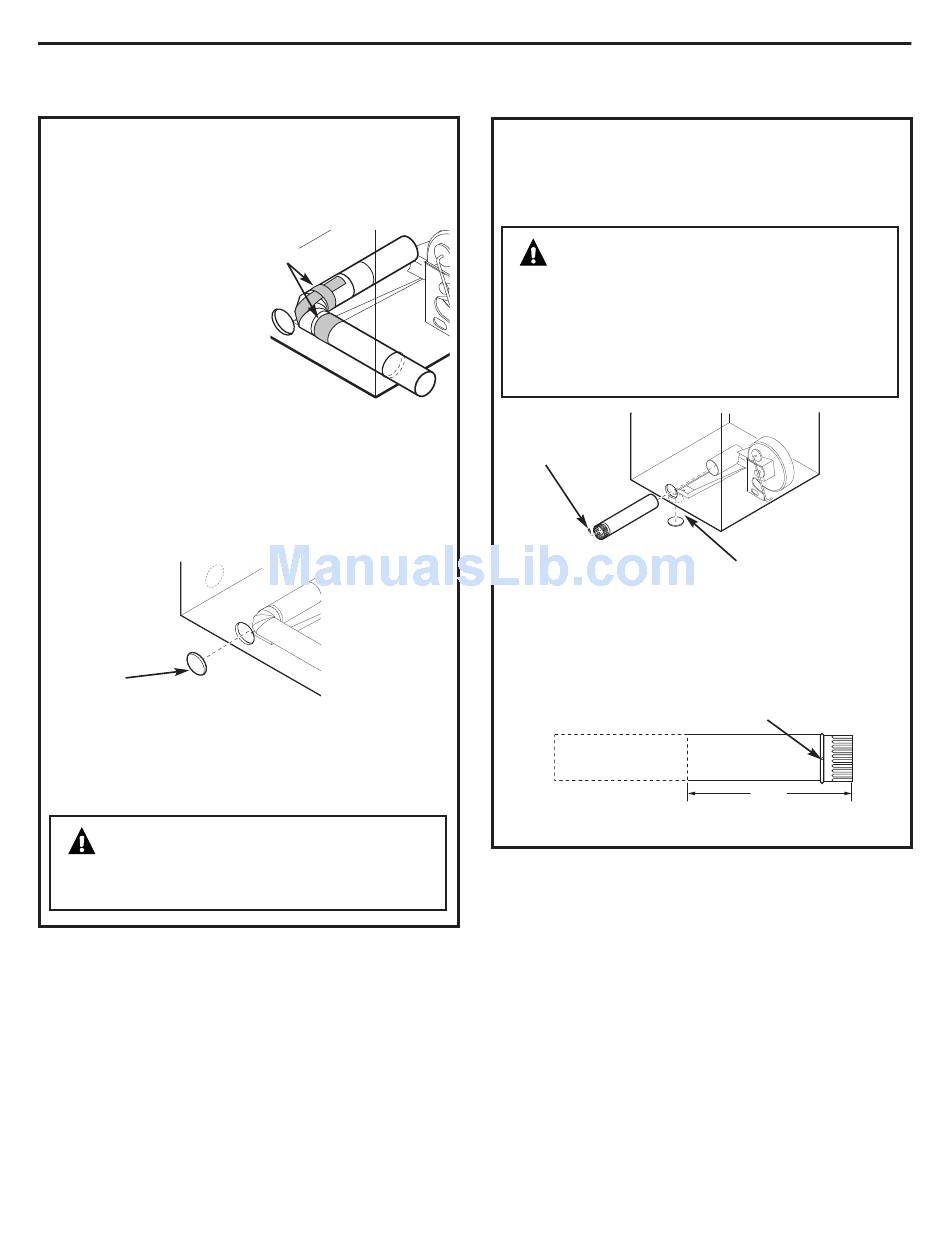

ADDING ELBOW AND DUCT FOR EXHAUST
TO LEFT OR RIGHT SIDE OF CABINET (cont.)
• Apply duct tape as
shown on the joint
between the dryer
internal duct and
the elbow, and also
the joint between the
elbow and the side duct.
CAUTION:
Internal
duct joints must be secured with tape; otherwise,
they may separate and cause a safety hazard.
ADDING COVER PLATE TO REAR OF CABINET
(SIDE EXHAUST)
Plate
(Kit WE1M454)
Connect standard metal elbows and ducts to
complete the exhaust system. Cover back opening
with a plate (Kit WE1M454) available from your
local service provider. Place dryer in final location.
WARNING –
THE BACK OPENING WITHOUT THE PLATE.
(Kit WE1M454)
Installation Instructions
Duct tape
NEVER LEAVE
BOTTOM VENTING:
Dryer Exhaust to the bottom of cabinet
for Gas and Electric models.
WARNING –
PERFORMING THIS EXHAUST INSTALLATION,
BE SURE TO DISCONNECT THE DRYER FROM ITS
ELECTRICAL SUPPLY. PROTECT YOUR HANDS
AND ARMS FROM SHARP EDGES WHEN
WORKING INSIDE THE CABINET. BE SURE
TO WEAR GLOVES.
Remove
screw
and save
Remove the screw inside the dryer exhaust duct
and save. Pull the duct out of the dryer. Detach
and remove the bottom knockout.
Cut the duct as shown and keep portion A.
29
BEFORE
Bottom
Remove desired
knockout (one only)
Fixing hole
A
12 3 ⁄ "
8
