EXHAUSTING THE DRYER (cont.)
SIDE VENTING:
Dryer Exhaust to right of cabinet for Electric
models only.
Dryer Exhaust to left of cabinet for Gas and
Electric models.
WARNING –
PERFORMING THIS EXHAUST INSTALLATION,
BE SURE TO DISCONNECT THE DRYER FROM ITS
ELECTRICAL SUPPLY. PROTECT YOUR HANDS
AND ARMS FROM SHARP EDGES WHEN
WORKING INSIDE THE CABINET. BE SURE
TO WEAR GLOVES.
Remove
Right
screw
and save
Bottom

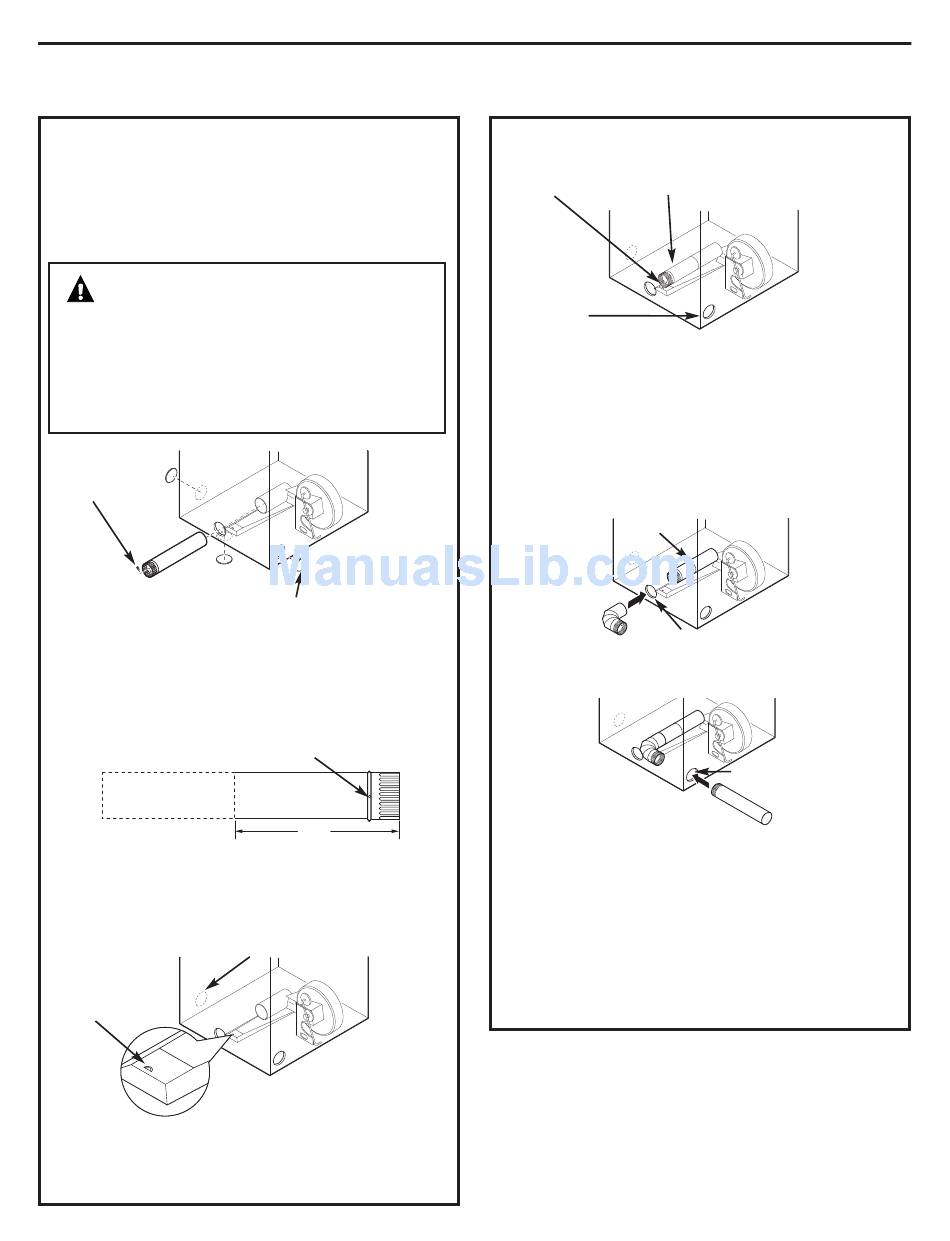

Detach and remove the bottom, right or left side
knockout as desired. Remove the screw inside the
dryer exhaust duct and save. Pull the duct out of
the dryer.
Cut the duct as shown and keep portion A.
TAB LOCATION
Bend tab
up 45°
Through the rear opening, locate the tab in the
middle of the appliance base. Lift the tab to about
45°, using a flat-blade screwdriver.
Installation Instructions
BEFORE
Left
Remove desired
knockout (one only)
Fixing hole
A
13
3
"
8
Not for gas
ADDING A NEW DUCT
Fixing hole
Left side
exhaust
Reconnect the cut portion (A) of the duct to the
blower housing. Make sure that the shortened duct
is aligned with the tab in the base. Use the screw
saved previously to secure the duct in place
through the tab on the appliance base.
ADDING ELBOW AND DUCT FOR EXHAUST
TO LEFT OR RIGHT SIDE OF CABINET
Internal duct
• Insert the 4" elbow through the rear opening and
connect the elbow to the dryer internal duct.
• Insert the 4" duct through the side opening
and connect it to the elbow.
CAUTION:
electrical wires and do not remove the vinyl cover
from the electrical components inside the dryer
when inserting the duct. A slight interference
may occur between the exhaust and the wire
components.
28
Portion "A"
Rear opening
Side opening
Do not pull or damage the
