Ethernet Link
The rear panel Ethernet connector (figure A-1) on the ISS switcher can be connected
to an Ethernet LAN or WAN. This connection makes SIS control of the switcher
possible using a computer connected to the same LAN.

Ethernet connection

The Ethernet cables can be terminated as straight-through cables or crossover
cables (figure A-1) and must be properly terminated for your application:
•
•

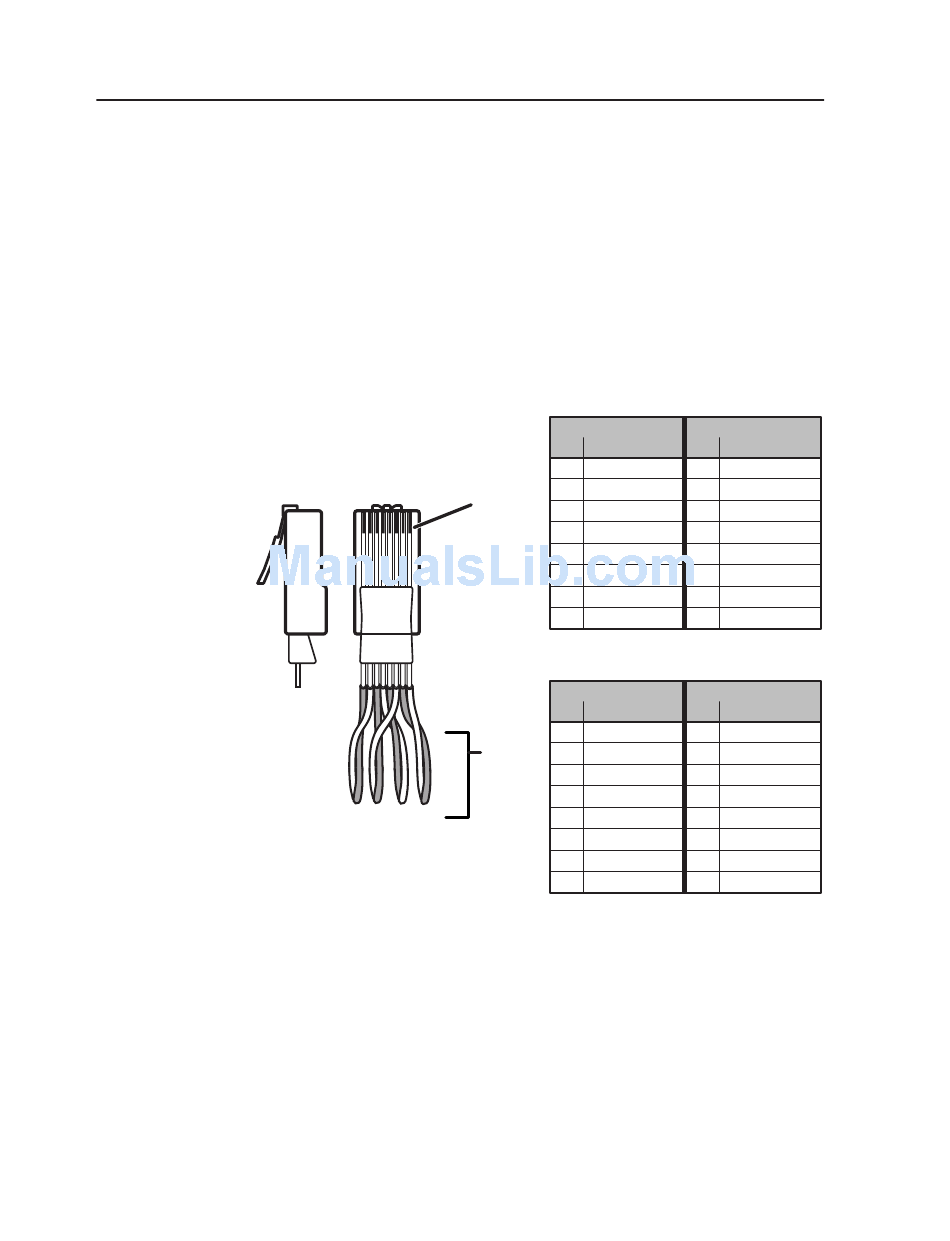

Figure A-1 — RJ-45 connector pinout table
A-2 Integration Seamless Switcher • Ethernet Connection
Patch (straight) cable — Connection of the ISS to an Ethernet hub, router, or
switcher that also hosts a controlling computer.
Crossover cable — Direct connection between the ISS and a controlling
computer.
Side Clip Down
Pins 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1&2 7&8
3&6 4&5
Patch (straight) cable
Side 1
Pin Wire color
1 White-orange
2 Orange
RJ-45
3 White-green
connector
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Crossover cable
Side 1
Pin Wire color
1 White-orange
Twisted
2 Orange
Pairs
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Side 2
Pin Wire color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Side 2
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
