Extron Electronics
ISS 408
Power
on
Integration
2
sec.
Seamless Switcher

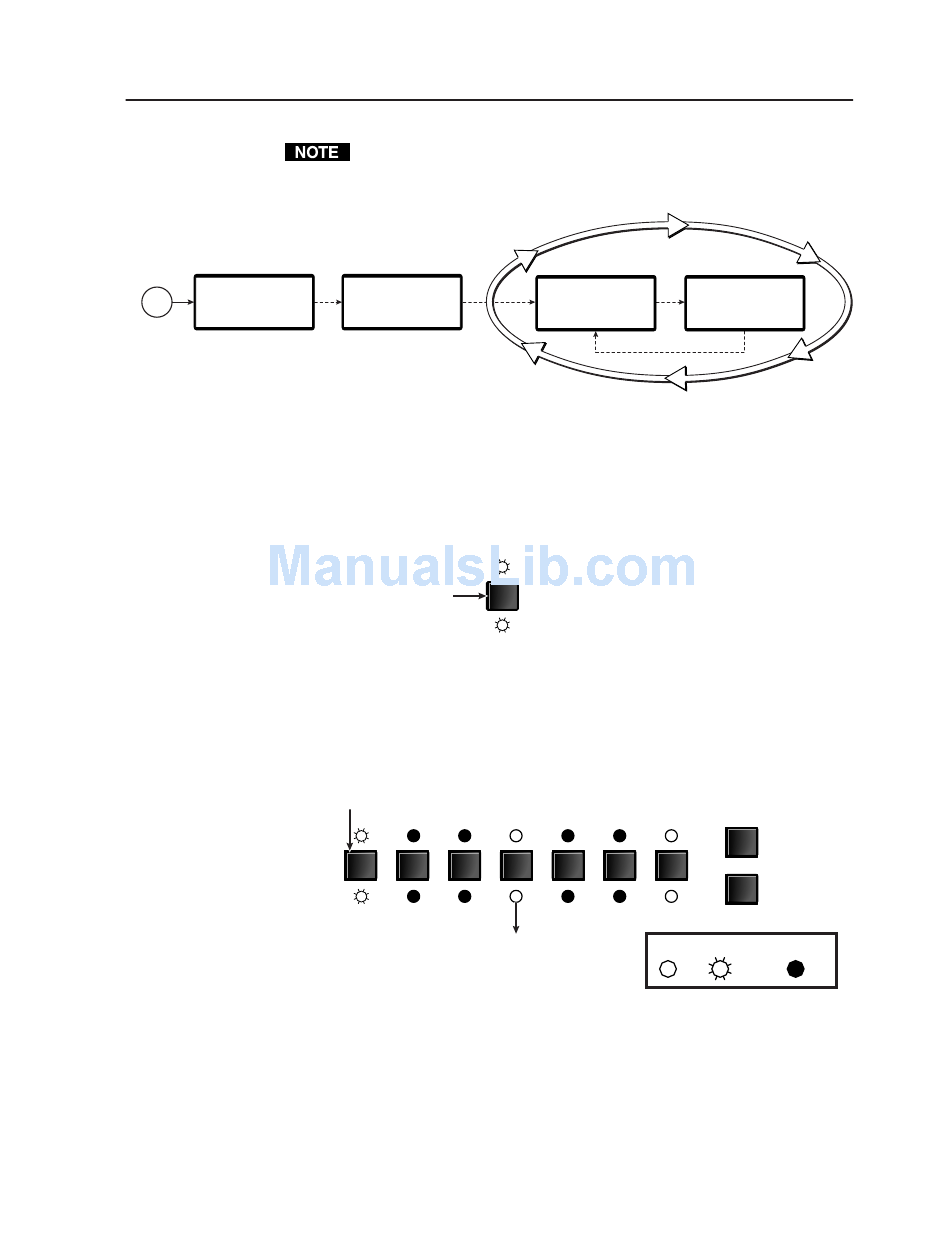

Figure 3-4 — LCD power up and default display cycle

Selecting an input and switching it to the program output

1.
Press and release the Video/Audio button as necessary to select either video
and audio, video only, or audio only (figure 3-5).
Figure 3-5 — Selecting video and audio
2.
Press and release an input button (figure 3-6).
Figure 3-6 — Selecting an input
On figure 3-4 and all other flowcharts in this chapter, solid lines indicate
screen changes initiated by the operator. Dashed lines indicate screen changes
that are the result of a timeout function.
Extron Electronics
ISS 408
60-423-01
2
sec.
Version x . xx
VIDEO
Press the button to cycle
through the selections.
AUDIO
Press and release the input 3 button.
The Input 3 video (upper) LED and Input 3 audio (lower) LED
blink to indicate that the video and audio inputs are selected,
the video is scaled, and output as the preview output.
3
4
5
3
4
5
The Input 6 video (upper) LED and Input 6 audio (lower) LED
remain lit steadily to indicate that the video and audio inputs
are selected, the video is scaled, and output as the program
output.
Integration Seamless Switcher • Operation
Default Display Cycle
Program #1
RGB
0.00 kHz 0.00Hz
Preview #3
S-Video
2
sec.
0.00 kHz 0.00Hz
The video LED lights green
when video is selected.
The audio LED lights red
when audio is selected.
6
7
8
VIDEO
6
7
8
AUDIO
LED key:
= on,
Output Rate
1280 x 1024 @ 60
2
sec.
CUT
DISSOLVE
= blinking,
= off
3-5
