From any menu or submenu, after 10 seconds of inactivity, the ISS saves all
adjustment settings and times out to the default LCD display cycle.
Video & Audio Configuration menu

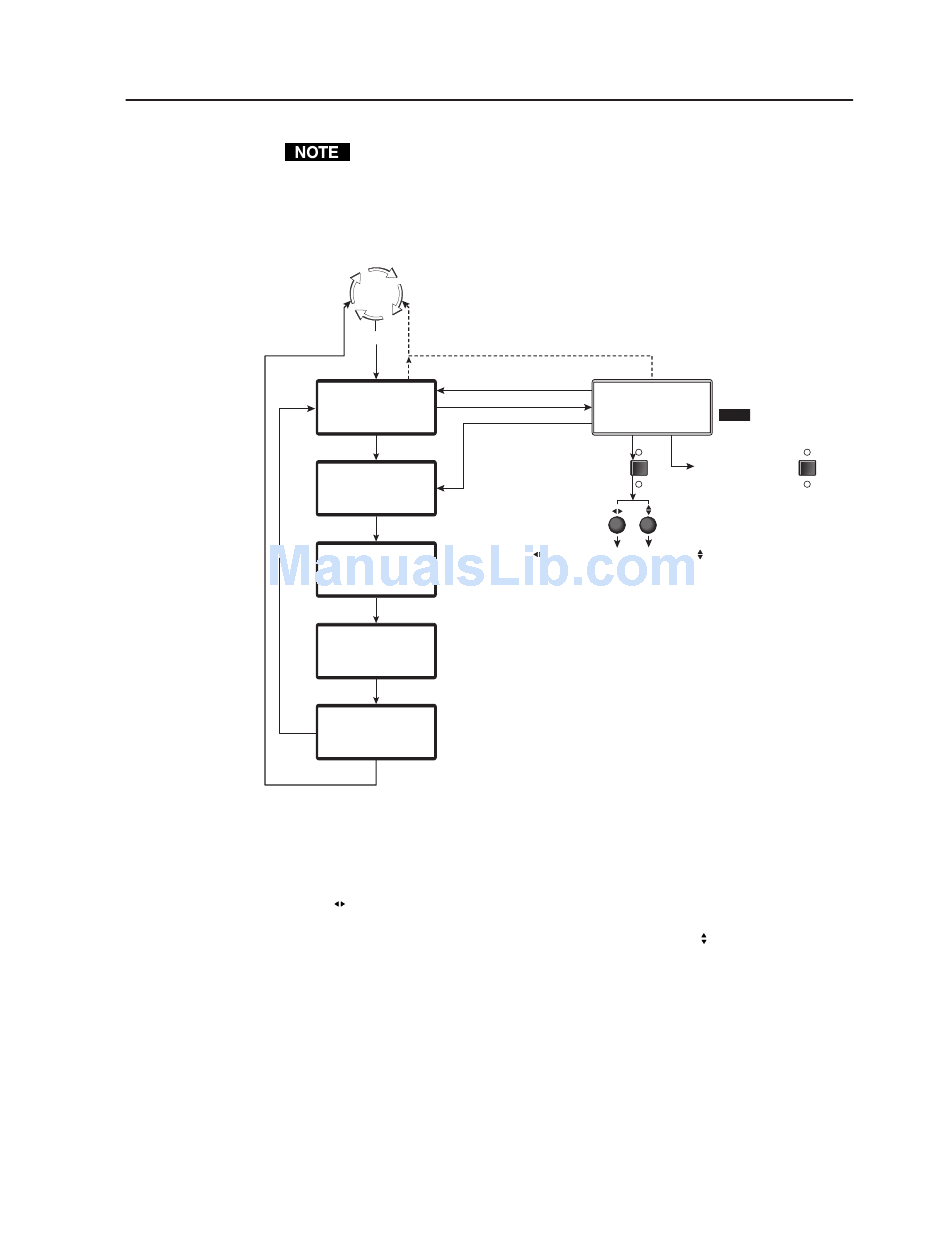

Figure 3-11 is a flowchart that shows an overview of the Video & Audio
Configuration menu and the available settings.
Default
Cycle
Menu
10 sec.
Video & Audio
Configuration
Menu
Output
Configuration
Menu
Advanced
Configuration
Menu
User Presets
Menu
Exit Menu
Menu
Press Next to Exit
Next
Figure 3-11 — Input Configuration menu flowchart

Input Configuration submenu

Select an input to configure by pressing and releasing an input button. Rotate the
Adjust knob while in the Input Configuration submenu to select the correct
video format (RGB, RGBcvS, YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video,
or composite video) for the selected input. Rotate the Adjust knob to select the
audio gain or attenuation value, from -24 dB to +9 dB. The default for each input is
RGB video and a 0 dB audio level.
Next
Video/Audio Config
Next
Input #1 Composite
Menu
Audio #3 Level -12db
Input Configuration:
Select an input to configure
by pressing an Input button.
Rotate the knob to select
the video type.
Input video type
• RGB • Betacam 60
• RGBcvS • HDTV
• YUVi • S-video
• YUVp • Composite
• Betacam 50
Integration Seamless Switcher • Operation
10 sec.
NOTE The audio is broken
away in this example.
1 2
Input Configuration:
If necessary, select
another input and
1 repeat. 2
Rotate the knob to select
the audio level.
Input audio level
-24dB to +9dB
3-9
