Rainbow1 IP Phone User Manual

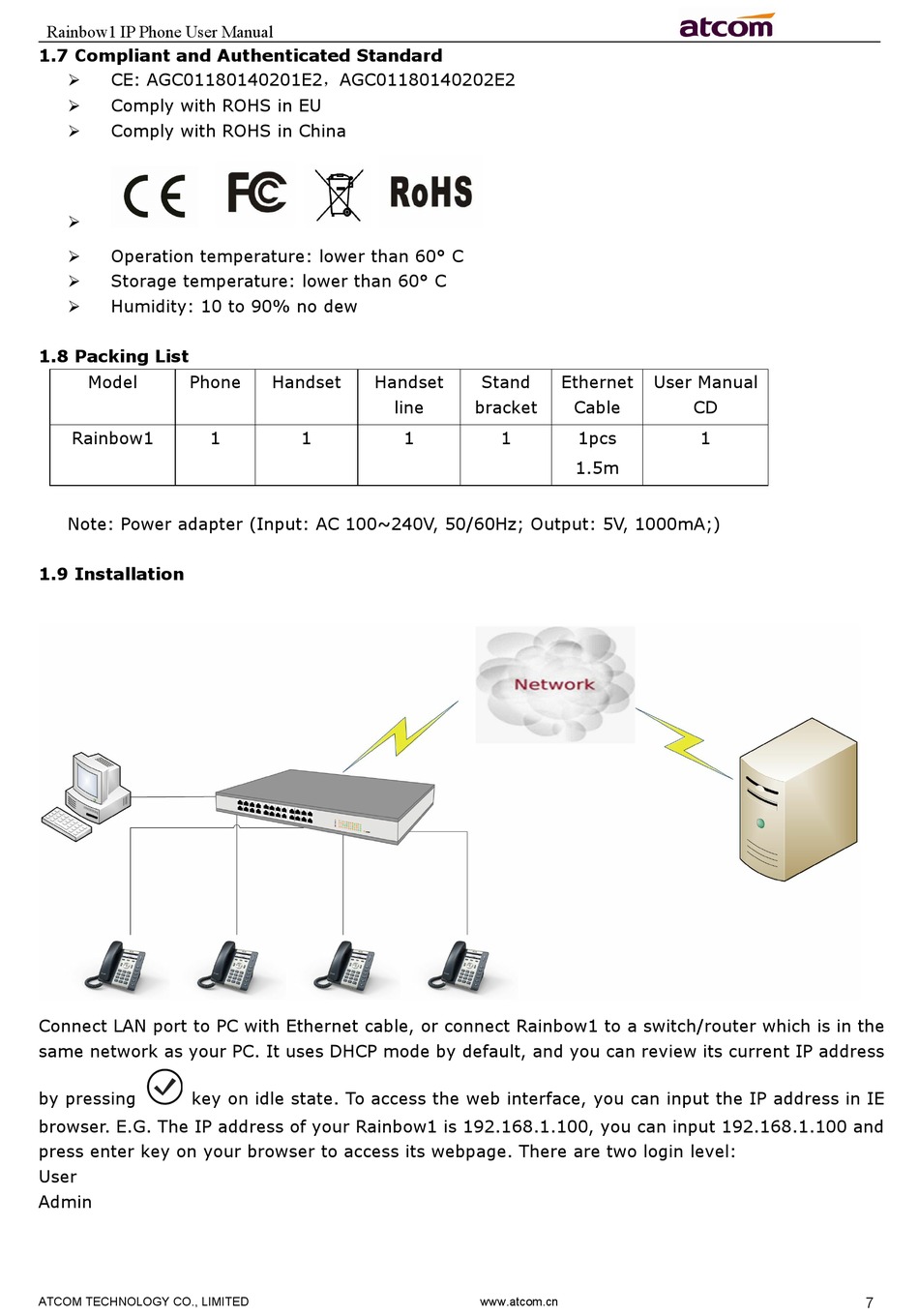

1.7 Compliant and Authenticated Standard

CE: AGC01180140201E2，AGC01180140202E2

Comply with ROHS in EU

Comply with ROHS in China


Operation temperature: lower than 60° C

Storage temperature: lower than 60° C

Humidity: 10 to 90% no dew


1.8 Packing List

Model Phone
Rainbow1 1
Note: Power adapter (Input: AC 100~240V, 50/60Hz; Output: 5V, 1000mA;)

1.9 Installation

Connect LAN port to PC with Ethernet cable, or connect Rainbow1 to a switch/router which is in the
same network as your PC. It uses DHCP mode by default, and you can review its current IP address
by pressing key on idle state. To access the web interface, you can input the IP address in IE
browser. E.G. The IP address of your Rainbow1 is 192.168.1.100, you can input 192.168.1.100 and
press enter key on your browser to access its webpage. There are two login level:
User
Admin
ATCOM TECHNOLOGY CO., LIMITED
Handset Handset
line
1 1
Stand Ethernet
bracket Cable
1 1pcs
1.5m
www.atcom.cn
User Manual
CD
1
7
