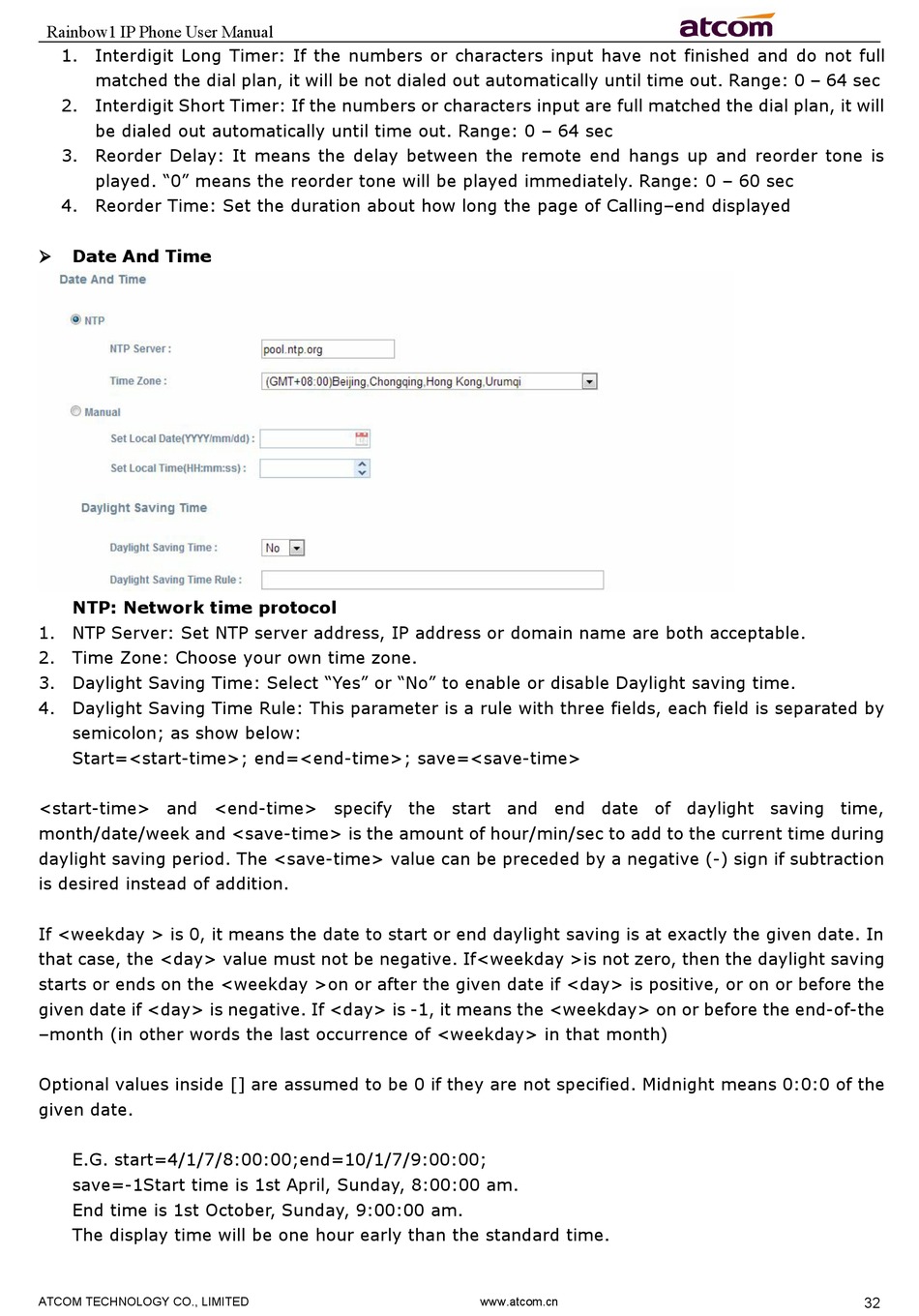

ATCOM Rainbow1 User Manual page 32

Rainbow1 IP Phone User Manual
1. Interdigit Long Timer: If the numbers or characters input have not finished and do not full
matched the dial plan, it will be not dialed out automatically until time out. Range: 0 – 64 sec
2. Interdigit Short Timer: If the numbers or characters input are full matched the dial plan, it will
be dialed out automatically until time out. Range: 0 – 64 sec
3. Reorder Delay: It means the delay between the remote end hangs up and reorder tone is
played. "0" means the reorder tone will be played immediately. Range: 0 – 60 sec
4. Reorder Time: Set the duration about how long the page of Calling–end displayed
Date And Time

NTP: Network time protocol
1. NTP Server: Set NTP server address, IP address or domain name are both acceptable.
2. Time Zone: Choose your own time zone.
3. Daylight Saving Time: Select "Yes" or "No" to enable or disable Daylight saving time.
4. Daylight Saving Time Rule: This parameter is a rule with three fields, each field is separated by
semicolon; as show below:
Start=<start-time>; end=<end-time>; save=<save-time>
<start-time> and <end-time> specify the start and end date of daylight saving time,
month/date/week and <save-time> is the amount of hour/min/sec to add to the current time during
daylight saving period. The <save-time> value can be preceded by a negative (-) sign if subtraction
is desired instead of addition.
If <weekday > is 0, it means the date to start or end daylight saving is at exactly the given date. In
that case, the <day> value must not be negative. If<weekday >is not zero, then the daylight saving
starts or ends on the <weekday >on or after the given date if <day> is positive, or on or before the
given date if <day> is negative. If <day> is -1, it means the <weekday> on or before the end-of-the
–month (in other words the last occurrence of <weekday> in that month)
Optional values inside [] are assumed to be 0 if they are not specified. Midnight means 0:0:0 of the
given date.
E.G. start=4/1/7/8:00:00;end=10/1/7/9:00:00;
save=-1Start time is 1st April, Sunday, 8:00:00 am.
End time is 1st October, Sunday, 9:00:00 am.
The display time will be one hour early than the standard time.
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
32
