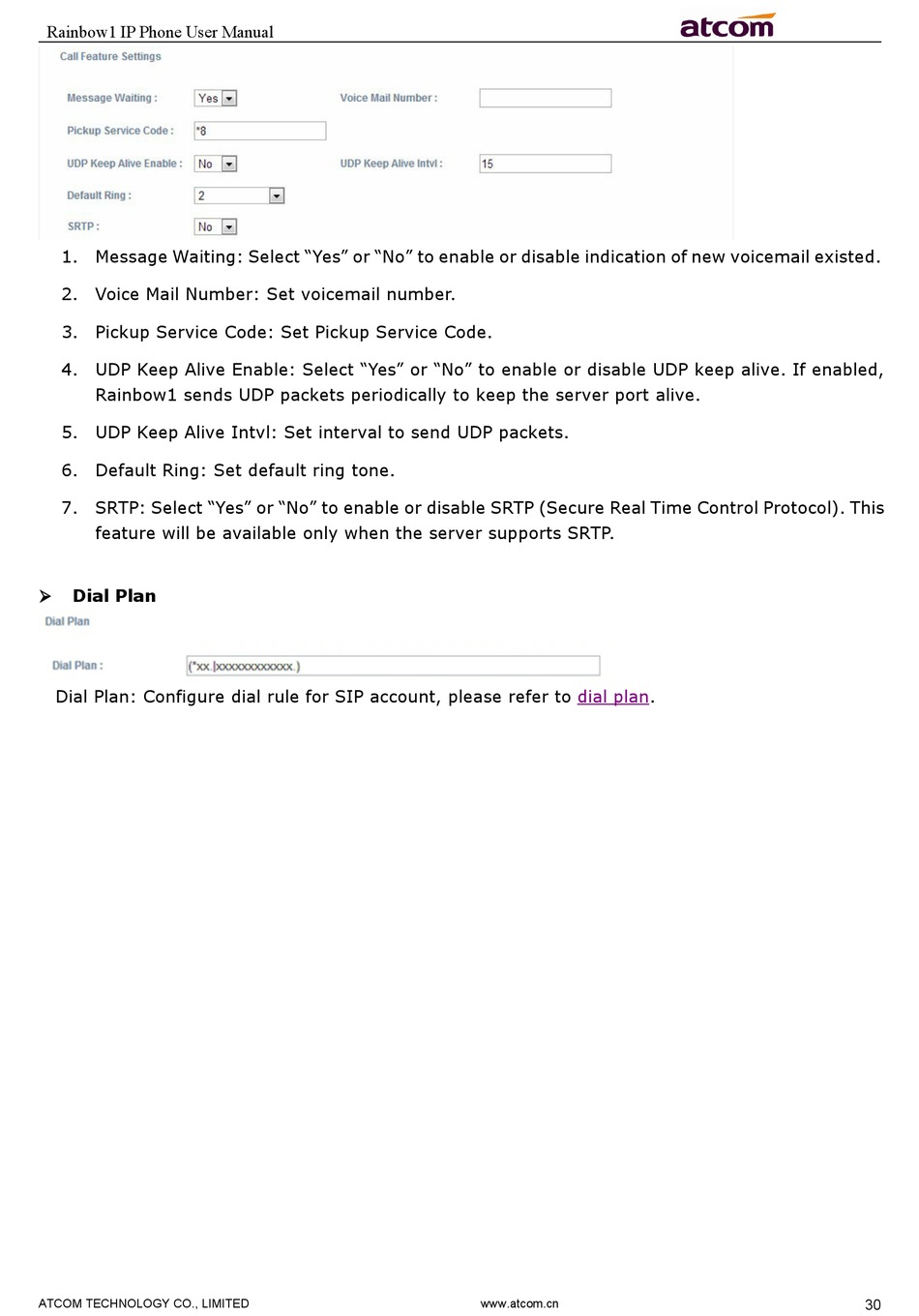

Rainbow1 IP Phone User Manual
1. Message Waiting: Select "Yes" or "No" to enable or disable indication of new voicemail existed.
2. Voice Mail Number: Set voicemail number.
3. Pickup Service Code: Set Pickup Service Code.
4. UDP Keep Alive Enable: Select "Yes" or "No" to enable or disable UDP keep alive. If enabled,
Rainbow1 sends UDP packets periodically to keep the server port alive.
5. UDP Keep Alive Intvl: Set interval to send UDP packets.
6. Default Ring: Set default ring tone.
7. SRTP: Select "Yes" or "No" to enable or disable SRTP (Secure Real Time Control Protocol). This
feature will be available only when the server supports SRTP.
Dial Plan

Dial Plan: Configure dial rule for SIP account, please refer to
ATCOM TECHNOLOGY CO., LIMITED
dial plan.
