REPLACEMENT PARTS
FLAIL BLADES
P/N 350251.
A complete replacement
set. 52 of our high quality
flail blades for your CR.
Includes 8 new lock clips
for replacement installa-
tion.
FLAIL SHAFTS
P/N 350185.
A full set of four shafts for
replacement. Includes 8
new lock clips for replace-
ment installation.
Note: We recommend
replacing the shafts when
you replace flails.
DRIVE BELT
P/N 350207.
Original Equipment drive
belt for your CR.
SPACER BUMPERS
P/N 350258.
A complete replacement
set. 44 of 1/2" spacer
bumpers and 4 of 1/4"
spacer bumpers
ACCESSORIES
SLICING REEL
P/N 350252.
A complete verti-slicing
reel for your CR. 20" wide
reel for use in grasses
that require vertical
cutting, and for assisting
in lawn overseeding
projects.
SLICING BLADES
P/N 350187.
A full set of twenty blades
for replacement. Includes
40 new capscrews, and
lock nuts for replacement
installation.
Part No. 350245
1
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
Operator Owner's Manual
CR550HC, CR550HCV
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP.
ENGINE: OIL CAP.
WEIGHT: UNIT
WEIGHT: SHIPPING
MAX. ENGINE OPERATING SLOPE
Page 1 of 12

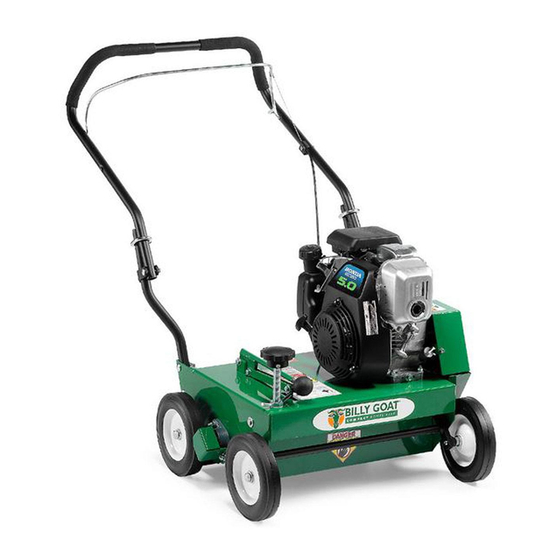

The Powerful CR
POWER RAKE
Specifications
CR550HC
5.0 (3.73 kW)
HONDA OHC
2.1 qt. (2.0 L)
0.63 qt. (0.6 L)
125# (56.8 kg)
150# (68.2 kg)
20°
R
CR550HCV
5.0 (3.73 kW)
HONDA OHC
2.1 qt. (2.0 L)
0.63 qt. (0.6 L)
125# (56.8 kg)
150# (68.2 kg)
20°
Form No. F021805A
