2
REPLACEMENT PARTS
FLAIL BLADES
P/N 350251.
A complete replacement
set. 52 of our high quality
flail blades for your CR.
Includes 8 new lock clips
for replacement installa-
tion.
FLAIL SHAFTS
P/N 350185.
A full set of four shafts for
replacement. Includes 8
new lock clips for replace-
ment installation.
Note: We recommend
replacing the shafts when
you replace flails.
DRIVE BELT
P/N 350207.
Original Equipment drive
belt for your CR.
SPACER BUMPERS
P/N 350258.
A complete replacement
set. 44 of 1/2" spacer
bumpers and 4 of 1/4"
spacer bumpers
ACCESSORIES
SLICING REEL
P/N 350252.
A complete verti-slicing
reel for your CR. 20" wide
reel for use in grasses
that require vertical
cutting, and for assisting
in lawn overseeding
projects.
SLICING BLADES
P/N 350187.
A full set of twenty blades
for replacement. Includes
40 new capscrews, and
lock nuts for replacement
installation.
Part No. 350245
All manuals and user guides at all-guides.com
1
T h a n k Y o u f o r S e l e c t i n g
Operator Owner's Manual
CR450S, CR550, CR550HC, CR550H
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP.
ENGINE: OIL CAP.
WEIGHT: UNIT
WEIGHT: SHIPPING
MAX. ENGINE OPERATING SLOPE
Page 1 of 12

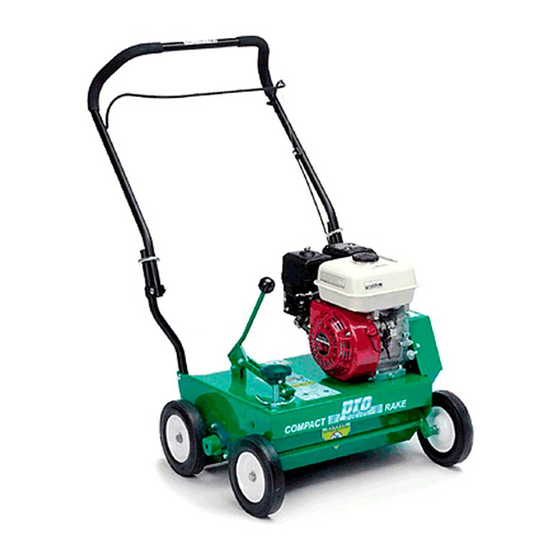

The Powerful CR
POWER RAKE
Specifications
CR450S
CR550HC
4.5 (3.35 kW)
5.0 (3.73 kW)
SUBARU OHV
HONDA OHC
2.8 qt. (2.7 L)
2.1 qt. (2.0 L)
0.63 qt. (0.6 L)
0.63 qt. (0.6 L)
125# (56.8 kg)
125# (56.8 kg)
150# (68.2 kg)
150# (68.2 kg)
20°
20°
R
CR550
CR550H
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.41 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
125# (56.8 kg)
129# (58.6 kg)
150# (68.2 kg)
150# (68.2 kg)
15°
20°
Form No. F011003A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Billy Goat CR450S
Summary of Contents for Billy Goat CR450S
- Page 1 4 of 1/4" spacer bumpers POWER RAKE ACCESSORIES Operator Owner's Manual SLICING REEL P/N 350252. CR450S, CR550, CR550HC, CR550H A complete verti-slicing reel for your CR. 20" wide reel for use in grasses Specifications that require vertical cutting, and for assisting in lawn overseeding projects.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com IN THE INTEREST OF SAFETY BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL & ENGINE MANUAL.” THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY. WARNING: The Engine Exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. -
Page 3: General Safety
All manuals and user guides at all-guides.com GENERAL SAFETY For your safety and the safety of others, these directions should be followed: Do not operate this machine without first reading owner's manual and engine manufacturer's manual. ·DO NOT operate a machine that exhibits excessive vibration. ·DO NOT operate this machine on slopes greater than19°. -
Page 4: Controls
All manuals and user guides at all-guides.com CONTROLS HONDA ENGINE THROTTLE CONTROL B & S ENGINE THROTTLE CONTROL SUBARU ENGINE THROTTLE CONTROL THROTTLE LEVER THROTTLE LEVER Set lever to choke position when CHOKE LEVER starting a cold engine CHOKE STOP Set lever to desired engine speed. -
Page 5: Operation
All manuals and user guides at all-guides.com Operation INTENDED USE: This machine is designed for removing ADJUSTING BLADE DEPTH thatch from your lawn, renovation of existing lawns, and to assist in overseeding operations. The machine should not be used for any other purpose than that stated above. Do not operate if excessive vibration occurs. - Page 6 All manuals and user guides at all-guides.com OPERATION continued OVERSEEDING OPERATION continued VERTI-CUTTING OPERATION SLICE: Run machine over the area that has been seeded to DO NOT- Use this machine on any surface other than a lawn. incorporate the seed into the soil. If excessive damage DO NOT- Use this machine on slopes in excess of 19°.
-
Page 7: Maintenance
2), key(item 42), and reel spacer(item 10) from the end of the reel. 9. Rotate the reel end to end, and re-install these items on the opposite end of the reel. USE ONLY BILLY GOAT ORIGINAL EQUIPMENT PARTS FOR 10. Re-install the reel in reverse order of removal. Re-install the guards in reverse order of removal. -
Page 8: Parts Drawing & List
All manuals and user guides at all-guides.com PARTS DRAWING CR450S, CR550, CR550HC, CR550H Part No. 350245 Form No. F011003A Page 8 of 12... - Page 9 All manuals and user guides at all-guides.com item PARTS CR550 CR550H CR550HC CR450S LIST Part No. Part No. Part No. Part No. Pulley 3.0" O.D. 350101-01 350101 350101 350101 Pulley 5.5" O.D. X ¾" 350206 350206 350206 350206 Wheel 8" Semi-Pneu White...
- Page 10 All manuals and user guides at all-guides.com FLAIL REEL ASSY 350241 item PARTS CR500 LIST Part No. SHAFT FLAIL BLADE 350141 BLADE FLAIL 350205 SPACER BUMPER 5/8" x 1/4" 350143 SPACER BUMPER 5/8" x 1/2" 350144 SHAFT WA FLAIL REEL 350145 CLIP LOCK 1/2"...
- Page 11 All manuals and user guides at all-guides.com SPACER BUMPER KIT 350258 SLICING BLADE KIT 350187 PARTS item PR500 PARTS item PR500 LIST Part No. LIST Part No. BLADE SLICING REEL 350147 SPACER BUMPER 5/8" x 1/4" 350143 SCREWCAP 1/4-20 x 3/4, GR. 5 350151 SPACER BUMPER 5/8"...
-
Page 12: Troubleshooting
WARRANTY PROCEDURE 22.1 Contact your nearest engine manufacturer's Please fill in the WARRANTY CARD and send the upper part to Billy Goat. authorized servicing dealer. (See page 7) The WARRANTY terms are stated on the lower part which remains with the user.
