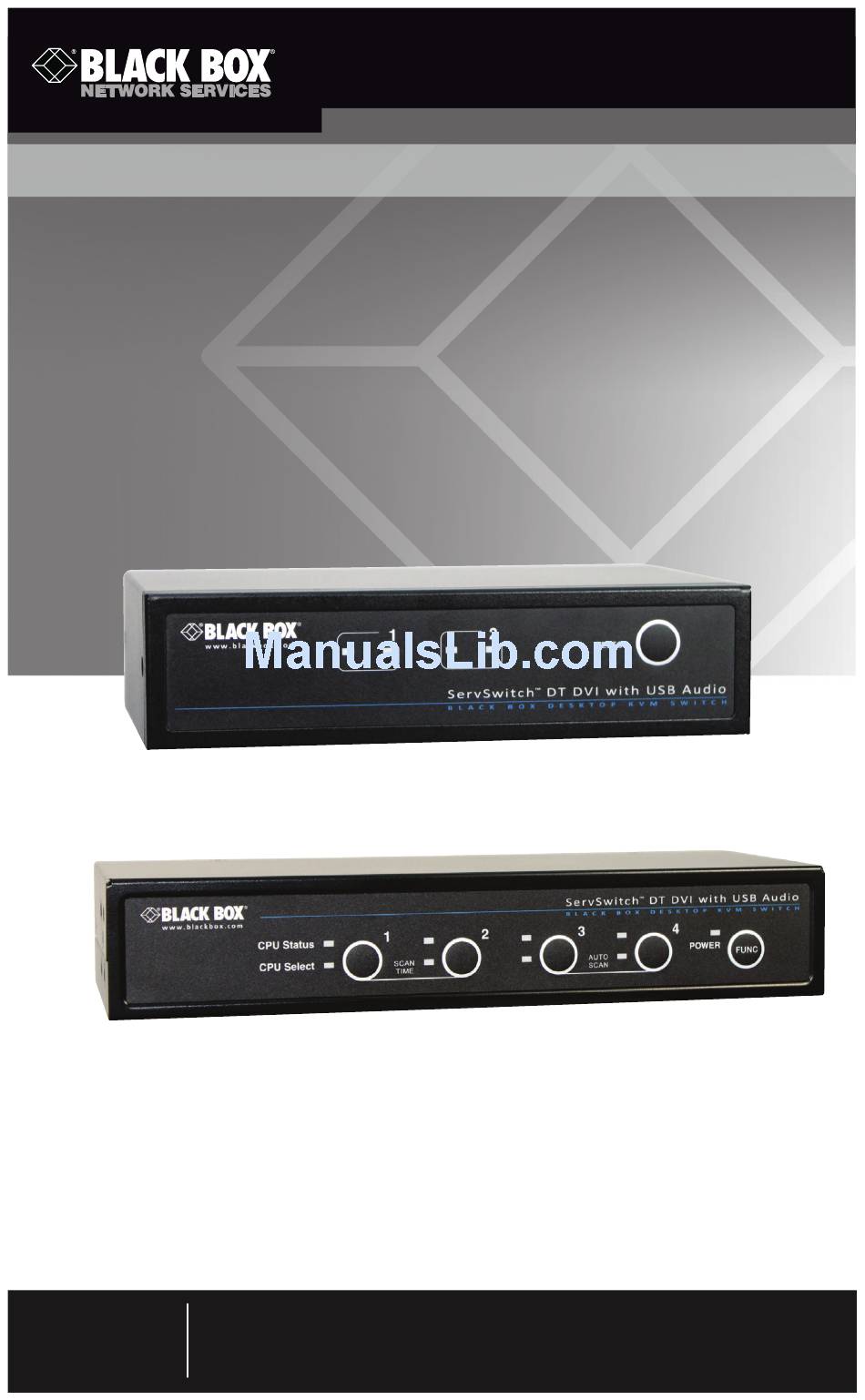

ServSwitch DVI-D USB KVM w/ bidirectional USB and Audio
Combines DVI with USB and audio peripheral
sharing in one unit.
2- and 4-port models are available.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
KV9632A
KV9634A
®
Advertisement
Table of Contents
Related Manuals for Black Box KV9632A
Summary of Contents for Black Box KV9632A
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 FCC and IC RFI Statements FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
- Page 3 NOM Statement 4. Todas las instrucciones de operación y uso deben ser seguidas. 5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6.
- Page 4 NOM Statement 16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo. 17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. 18.
- Page 5 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks, and ServSwitch is a trademark, of BB Technologies, Inc. Macintosh and Mac are registered trademarks of Apple, Inc. Windows is a registered trademark of Microsoft Corporation.
-
Page 6: Table Of Contents
Specifications ....................7 Overview ....................8 Introduction ..................8 Features ....................8 What‘s Included ................9 Hardware Description ...............9 2.4.1 KV9632A Front and Back Panels .........9 2.4.2 KV9634A Front and Back Panels ........10 System Requirements ..............12 2.5.1 Console Side ..............12 2.5.2 Computer Side ..............12 2.5.3 Cables ................12... -
Page 7: Specifications
KV9634A: (8) LEDs: (4) Computer Online, (4) Computer Selected Power: 9 VDC (can accept between 9–12 VDC) Size: KV9632A: 1.6"H x 6.3"W x 3.9"D (4 x 16 x 10 cm); KV9634A: 1.6"H x 8.7"W x 3.5"D (4.1 x 22 x 9 cm) Weight: KV9632A: 1.4 lb. -
Page 8: Overview
The built-in USB hub ensures smooth switching from one computer to the other. It reduces redundant cables and encourages a neat and tidy working environment. The 4-port unit (KV9632A) also includes a FUNC button to adjust video signal strength. 2.2 Features •... -
Page 9: What's Included
• (1) set of rubber feet 2.4 Hardware Description 2.4.1 KV9632A Front and Back Panels Figures 2-1 and 2-2 illustrate the front and back panels of the KV9632A. Table 2-1 describes its components. Figure 2-1. KV9632A front panel. Figure 2-2. KV9632A back panel. -
Page 10: Kv9634A Front And Back Panels
Chapter 2: Overview Table 2-1. KV9632A front and back panel components. Number Component Description (1) computer on-line, (1) computer selected for (2) LEDs Port 1 (1) computer on-line, (1) computer selected for (2) LEDs Port 2 Push button Toggles between Computer 1 and Computer 2 Barrel connector Links to 9–12-VDC power... - Page 11 Chapter 2: Overview 6 13 14 Figure 2-4. KV9634A back panel. Table 2-2. KV9634A front and back panel components. Number Component Description (4) LEDs Indicates which CPU is selected (4) LEDs Lights when CPU is selected (1) LED Lights when power to the unit is on (4) push buttons Press to select computer 1, 2, 3, or 4 (1) FUNC button...
-
Page 12: System Requirements
Chapter 2: Overview 2.5 System Requirements 2.5.1 Console Side • (1) DVI-D monitor • (1) USB keyboard • (1) USB mouse • (1) microphone and speaker (optional) 2.5.2 Computer Side • (1) USB-enabled computer with DVI-D video support 2.5.3 Cables Each computer can interface with the KVM switch with: •... -
Page 13: Installation
Chapter 3: Installation 3. Installation Before installation, power off all devices that will be connected to this system. • Make sure that all devices you will connect are properly grounded. • Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. -
Page 14: Computer Connection
Chapter 3: Installation 3. Plug USB peripherals into the USB 1 and/or USB 2 ports on the console side if needed. Plug up to two USB peripherals into these USB DVI-D monitor, Type A ports USB keyboard/ mouse, audio speaker, and microphone KV9634A Figure 3-1. - Page 15 Chapter 3: Installation KV9634A EHN900024U cable Figure 3-2. Connecting the computer. Figure 3-3. Four computers connected. Page 15 724-746-5500 | blackbox.com...
-
Page 16: Operation
LED lights red when a connected computer is currently selected. 4.1.2 Push Buttons For the KV9632A, press the “SELECT” button to switch PC ports between the two connected computers, and wait for 2–3 seconds after each PC port is switched. -
Page 17: Adjust The Video (Dvi) Signal
Chapter 4: Operation NOTE: Scan Time is set to 3 seconds by default after blackout or reboot. 4.1.5 Adjust the Video (DVI) Signal (KV9634A only) To optimize the video signal strength corresponding to the length or quality of video cable, the user can adjust the signal by pressing the “FUNC” button and then pressing a few more buttons. -
Page 18: Hotkey Commands
Chapter 4: Operation 4.2 Hotkey Commands A Hotkey command is a short keyboard sequence used to select a computer, activate a computer scan, etc. The KVM switch interprets keystrokes for hotkeys all the time. A hotkey sequence starts with two left Ctrl keystrokes (successively in 0.2 seconds) followed by one or two more keystrokes. - Page 19 When set to “ON,” USB-Port selection follows computer selection. When set to “OFF,” USB-Port selection stops following computer selection. USB port setting for 2-Port model (KV9632A): Press the hotkey below to turn ON/OFF both the USB 1 and USB 2 port Rule...
- Page 20 L-Ctrl + L-Ctrl + F8 Force the USB signal to follow the selected computer by pressing the following hotkey (applicable for both 2-Port [KV9632A] and 4-Port [KV9634A]): L-Ctrl + L-Ctrl + U NOTE: Make sure that the USB device is unlinked (safely removed) before switching to the next computer.
-
Page 21: Appendix. Troubleshooting
Appendix A: Troubleshooting Appendix A. Troubleshooting Make sure that all cables associated with each computer are well-seated and labeled to avoid confusion when connected to the unit. The unit has built-in power protection that works automatically when needed. When it works, USB communication halts and the only way to restart the unit properly is to remove all power sources (USB cables and power adapter), wait a few seconds, then apply power sources, and start again. - Page 22 Appendix A: Troubleshooting • If the device does not have a power jack, add a power adapter with 9–12 VDC and less that 1-A current rating to the unit. • Make sure the USB cable is well-seated for good communications. •...
-
Page 23: Contacting Black Box
If you determine that your ServSwitch DT DisplayPort KVM with USB and Audio is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to... -
Page 24: Shipping And Packaging
• Package it carefully. We recommend that you use the original container. • If you are returning the unit, make sure you include everything you received with it. Before you ship for return or repair, contact Black Box to get a Return Authorization (RA) number. - Page 25 NOTES Page 25 724-746-5500 | blackbox.com...
- Page 26 NOTES Page 26 724-746-5500 | blackbox.com...
- Page 27 NOTES Page 27 724-746-5500 | blackbox.com...
- Page 28 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
