DFCS XGT+ Stand Alone Module
Converts 10GBASE-T Ethernet to SFP+ or XFP Fiber
Supports Pluggable 10 Gigabit Transceivers
- RJ45 to SFP+
- RJ45 to XFP
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
LMC11032A
LMC11032AE
LMC11042A
LMC11042AE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LMC11032A
Summary of Contents for Black Box LMC11032A
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 DFCS XGT+ Standalone Module NOM Statement FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
- Page 3 E: El aparato ha sido tirado o su cubierta ha sido dañada. TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 4: Product Overview

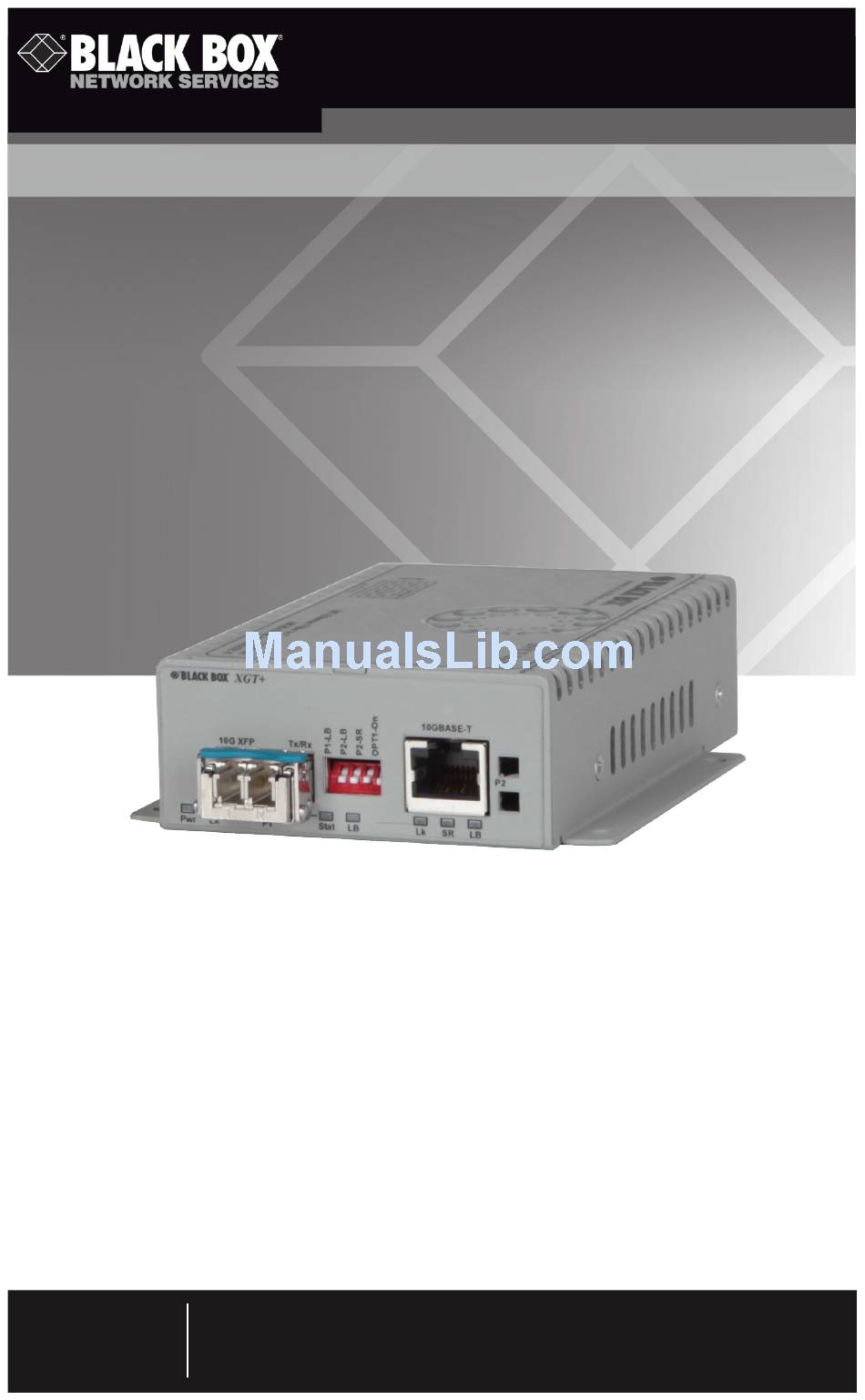

DFCS XGT+ Standalone Module This User Manual describes the functions of the DFCS XGT+ Rev 1. Product Overview The DFCS XGT+ is a 10 Gigabit Ethernet media converter with one 10GBASE-T RJ-45 port and one pluggable transceiver port that provides copper-to-fiber and copper-to-copper media conversion. -
Page 5: Installation Procedure
Installation Procedure SW2 - P2 LOOPBACK “P2-LB” When this DIP-switch is in the DOWN position (factory default), port P2 loopback is disabled. When this DIP-switch is in the UP “P2-LB” position, loopback is enabled on port P2. When enabled, all data received on port P2 is transmitted out port P2 and the connection between port P2 and port P1 is interrupted. - Page 6 DFCS XGT+ Standalone Module SW3 and SW4 - RESERVED These DIP-switches are for factory use only and must always remain in the DOWN (factory default) position. 2) INSTALL STANDALONE MODULE AND CONNECT CABLES The XGT+ is available as a standalone module with built-in mounting brackets. For wall-mounting, attach the XGT+ to a wall, backboard or other flat surface.
- Page 7 Installation Procedure 3) VERIFY OPERATION Once the module has been installed and configured per steps 1 and 2, verify the module is operational by viewing the LED indicators. Legend OFF State Color ON/Blinking State Off – No power. Green Green – Power On Green Green Solid –...
- Page 8 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
