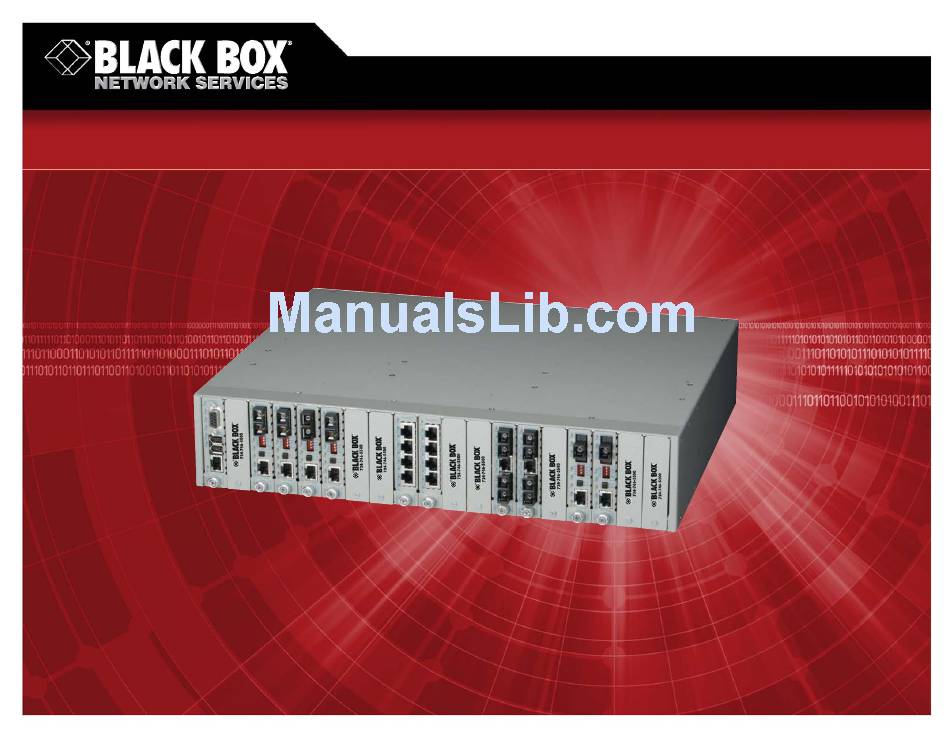

- Page 1 © 2007. All rights reserved. Black Box Corporation. Dynamic Fiber Conversion System Our toughest, most versatile Our toughest, most versatile media conversion system. media conversion system. FREE 24-hour Tech Support: 724-746-5500 blackbox.com...
- Page 2 FEATURES • Dynamic modular system grows with your network. • More module choices than any other media converter system. • Tough construction for hard use: Most modules are NEBS Level 3 certified. • Use with or without management. • Hot-swappable modules.
- Page 3 5/22/2007 724-746-5500 #10841 UTP to Multimode Duplex Fiber Modules These modules convert Ethernet from twisted-pair to standard duplex multimode fiber optic cable. They’re available in 10-Mbps, 100-Mbps, and 1000-Mbps, as well as autosensing 10-/100-Mbps and 10-/100-/1000-Mbps modules. UTP ports are autosensing for half- or full-duplex. An MDI/MDI-X switch eliminates the need for crossover cable.
-
Page 4: Management Features
• Active Port Port • Diagnostic Status • Alarm Threshold Setting • Management • Download Software via • Redundancy • Media Converter Type • Reset Chassis • Slot Occupied • Subnet Mask • Part Number • Default Gateway • Serial Number •... - Page 5 NEBS Level 3, is the most stringent, certifying carrier- class equipment intended for long-term use in variable environments. TECH SPECS for Chassis Power — LMC3004A–LMC3005A, LMC3010A, LMC3080A, LMC3014A: 110–230 VAC, 50–60 Hz, autosensing, internal; LMC3007A–LMC3008A, LMC3012A, LMC3081A–LMC3082A: ± 48 VDC, internal;...
- Page 6 LMC3004A: shown with modules 5/22/2007 724-746-5500 #10841 Item Dynamic Fiber Conversion System First, order the chassis… 19-Slot Power Chassis (Managed, Rackmount) with (1) AC Power Supply LMC3004A with (2) AC Power Supplies LMC3005A with (1) DC Power Supply LMC3007A with (2) DC Power Supplies...
- Page 7 Duplex Multimode to Duplex Single-Mode, 1310-nm/1310-nm 5 km/28 km T1/E1 Copper to 1310-nm Multimode Duplex Fiber Modules 5 km 30 km Managed Media Converter Modules for the Dynamic Fiber Conversion System 10BASE-T/100BASE-TX to 100BASE-FX, 1310-nm Multimode 5 km, ST 5 km, SC...
- Page 8 LMC3108A 5/22/2007 724-746-5500 #10841 Item Desktop Managed Media Converters for the Dynamic Fiber Conversion System, 110 VAC 10BASE-T/100BASE-TX to 100BASE-FX Multimode, 5 km 5 km, ST LMC3100A 5 km, SC LMC3102A Single-Mode, 1310-nm, 30 km 30 km, ST LMC3101A 30-km, SC LMC3103A Single-Mode, Single-Strand, 20 km (Order One of Each.) 1310-nm TX/1550-nm RX, SC...
