Summary of Contents for Black Box LMC5207A-R2

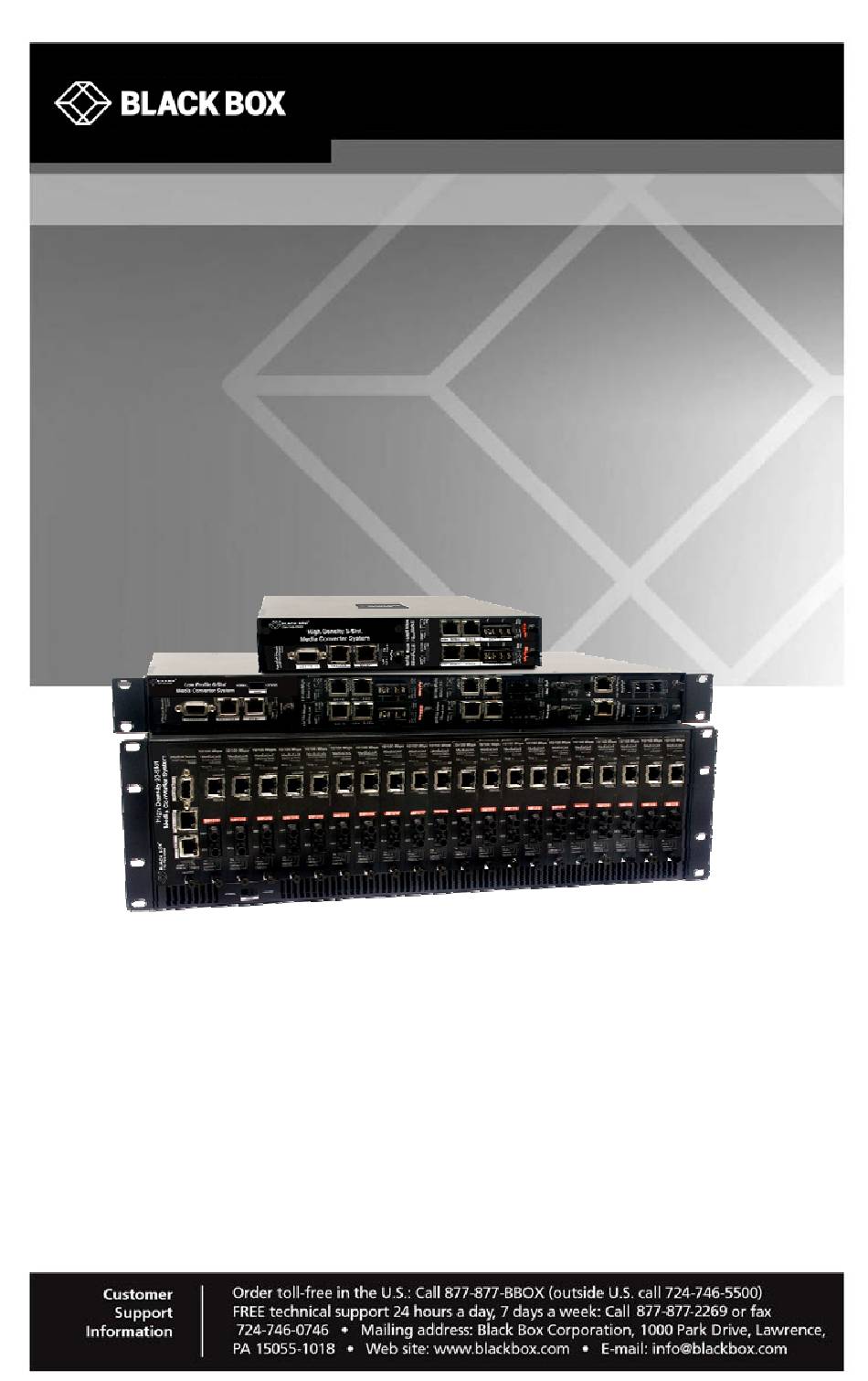

- Page 1 LMC5207A-R2 LMC5228A LMC5205A LMC5234A LMC5227A LMC5208A-R2 LMC5203A LMC5206A LMC5235A LMC5227A-R2 LMC5204A LMC5233A LMC5236A High-Density Media Converter System II Choose from a wide variety of chassis and modules to build a powerful media-converter solution.
- Page 2 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements This equipment generates, uses, and can radiate radio- Class A Digital Device. frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 FCC and IC RFI Statements This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. Product Description Version Class A Class B Dual AC 20-Slot Rackmount Chassis Dual DC ACDC...
- Page 4 NOM Statement Normas Oficiales Mexicanas (NOM) Electrical Safety Statement Instrucciones de Seguridad 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 5 NOM Statement 16. El cable de corriente deberá ser desconectado cuando el equipo no sea usado por un largo período de tiempo. 17. Cuidado debe ser tomado de tal manera que objecos líquidos no sean derramados sobre la cubierta u orificios de ventilación. 18.
- Page 6 Certifications Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
-
Page 7: Table Of Contents
Alarm Reset, Last Gasp, and Temperature Gauge ......27 4.3.2 SNMP Write Lock ................28 4.3.3 SNMP Management Module LEDs ..........28 5. Contacting Black Box................29 6. Fiber Optic Cleaning Guidelines ............. 30 7. Electrostatic Discharge Precautions ............31 LMC5208A 877-877-2269 | blackbox.com... -
Page 8: Part Numbers
20-Slot, W/Fixed Single AC Power LMC5228A 20-Slot, w/ACDC Power Back Up, Spares, Sold Separately Part Number Description LMC5210A-R2 Power Supply Module for LMC5207A-R2 LMC5212A-R2 Power Supply Module for LMC5208A-R2 LMM090 Serial Cable for SNMP, DB9 Male to DB9 Female 6-Slot Rackmount/Desktop Chassis Part Number... - Page 9 Part Numbers Back Up, Spares, Sold Separately Part Number Description LMC5200A SNMP Management Module includes Black Box and View² LMC5238A 19 inch Rackmount shelf and screws LMC5208A 877-877-2269 | blackbox.com Page 9...
-
Page 10: Specifications
Chapter 1: Specifications 1. Specifications 1.1 20-Slot Rackmount Chassis Specifications Input Dual AC 100 to 240V AC, 50/60Hz, 3.5/1.5A Specifications: Dual DC -48V DC, 5A ACDC 100 to 240V AC, 50/60HZ, 2A -48V DC, 4.4A Operating 0° C to +50° C (+32° F to +122° F) Temperature: Storage Dual AC &... -
Page 11: 3-Slot Desktop Chassis Specifications
Chapter 1: Specifications 1.3 3-Slot Desktop Chassis Specifications Input 100 to 240V AC, 50/60Hz, 0.75A Specifications: 35V DC to 75V DC Max, 1.6A Operating 0° C to +50° C (+32° F to 122° F) Temperature: -40° C to +50° C (-40° F to +122° F) Storage -40°... -
Page 12: Overview: About The High-Density Media Converter System Ii
2.1 The 20-Slot Rackmount Chassis The 20-Slot Rackmount Chassis series is a modular chassis platform designed for use with Black Box Simple Network Management Protocol (SNMP) manageable series of modules. The 20-Slot Rackmount Chassis is a 3U high, Rackmountable chassis that features 20 slots for installing application series modules plus an additional slot for installing an SNMP Management Module. -
Page 13: The 3-Slot Desktop Chassis
2.3 The 3-Slot Desktop Chassis The 3-Slot Desktop Chassis series is a modular chassis platform designed for use with Black Box Simple Network Management Protocol (SNMP) manageable series of modules. The 3-Slot Desktop Chassis is a 1U high, rackmountable chassis that can use redundant power supply modules, and supports a SNMP Management Module. -
Page 14: Install The High-Density Media Converter System Ii
Install the equipment in an environment that is compatible with the maximum ambient temperature (Tma) specified by Black Box. 5. Reduced Air Flow - Install the equipment in a rack so that the amount of air flow required for safe operation of the equipment is not compromised. -
Page 15: Installing Snmp Management And Application Modules
To install a module: 1. Remove the blank bracket (if present) covering the slot where the module will be installed. Black Box recommends installing blank brackets in unused module slots. 2. Slide the module into the chassis using the card guides. -
Page 16: Replacing Power Supply Modules
(Power supply modules are hot-swappable). 5. Install a new power supply module. If module is equipped with an ON/OFF switch install the module with the switch in the OFF position. Dual AC, Part Number LMC5207A-R2 Page 16 877-877-2269 | blackbox.com LMC5208A... - Page 17 Chapter 3: Install the High-Density Media Converter System II Dual DC, Part Number LMC5208A-R2 NOTE Do not mix AC and DC power supply modules. ACDC, Part Number LMC5228A Status Reset Alarm Release Release Switch Screw Screw Power DC Power Supply Connector Module 1 (PS1)
-
Page 18: Installing The 6-Slot Rackmount Chassis
Install the equipment in an environment that is compatible with the maximum ambient temperature (Tma) specified by Black Box. 5. Reduced Air Flow - Install the equipment in a rack so that the amount of air flow required for safe operation of the equipment is not compromised. -
Page 19: Dc Power Wiring, Replacing Power Supply And Fans
6-Slot Rackmount or Desktop. User-Replaceable Power Supply Modules The 6-Slot Rackmount/Desktop Chassis ships from Black Box with one or two power supplies installed depending on the model. Chassis ordered with one power supply come with a filler tray installed in the second slot. -
Page 20: Installing Management And Application Modules
To install a module: 1. Remove the blank bracket (if present) covering the slot where the module will be installed. Black Box recommends installing blank brackets in unused module slots. 2. Slide the module into the chassis using the card guides. -
Page 21: Dc Power Wiring, Replacing Power Supply And Fans
Rackmounting requires a Rackmount shelf for mounting up to two units side by side. The Rackmount shelf is sold separately. To purchase the Rackmount shelf (part number (LMC5238); visit the Black Box Product Accessories page: http://www.blackbox.com/Store/Results.aspx/search-LMC5238%5e%5e%5e/p-0 4. Attach the cables between the chassis and the device that will be interconnected, and then plug the unit into a reliable, filtered power source. -
Page 22: Installing Management And Application Modules
To test the fans’ operation, hold the Alarm Reset Button down for 4 to 5 seconds. The fans will activate and then they will turn off when the button is released. If the fans do not activate, contact Black Box. Fans are not end-user replaceable. - Page 23 Chapter 3: Install the High-Density Media Converter System II • Install the 3-Slot Desktop Chassis SNMP Management Module into the bottom left slot. NOTE This slot is ONLY for the Management Module; do not install Application Modules such as media conversion and mode conversion modules in this slot. LMC5208A 877-877-2269 | blackbox.com Page 23...
-
Page 24: Operation
Chapter 4: Operation 4. Operation 4.1 The 20-Slot Rackmount Chassis 4.1.1 Alarm Reset, Last Gasp, and Temperature Gauge The 20-Slot Rackmount Chassis series supports power supply modules, so that worn parts can be replaced without having to send an entire unit in for repair. User-Replaceable Power Supply Modules Reset Alarm Button... -
Page 25: Snmp Management Module Leds
Chapter 4: Operation board from re-configuring the application module settings (e.g., the status of features such as LinkLoss, FiberAlert, Force mode, etc.) made via SNMP on any previous Management Modules. NOTE Leave this switch in the NORMAL position during day-to-day operation; the LOCKED position should only be used when changing the SNMP management board. -
Page 26: Snmp Write Lock
Chapter 4: Operation module. If this occurs, remove and replace the power supply module immediately. (LEDs on the Management Module and the power supply itself also indicate power supply failures.) After stopping the alarm, remove the power supply and replace the power supply module. Last Gasp Alarm The 6-Slot Rackmount/Desktop Chassis includes the Last Gasp trap feature, “Remote Chassis Down,”... -
Page 27: Snmp Management Module Leds
The alarm can be silenced by pressing the Alarm Reset Button, located next to the power connector on the power supply module. If this occurs the unit needs to be returned to Black Box for repair. -
Page 28: Snmp Write Lock
Chapter 4: Operation to the administrator. There is also an LED indicator on the SNMP Management Module for chassis temperature. 4.3.2 SNMP Write Lock The SNMP Write Lock switch is located on the back of the 3-Slot Desktop Chassis. The SNMP Write Lock switch prevents a new management board from re-configuring the application module settings (e.g., the status of features such as LinkLoss, FiberAlert, Force mode,... -
Page 29: Contacting Black Box
Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 877-877-2269 or Fax: 724-746-0746... -
Page 30: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you need to disconnect the fiber device, reinstall the protective dust caps. -
Page 31: Electrostatic Discharge Precautions
Chapter 7: Electrostatic Discharge Precautions 7. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 32 LMC5208A, Rev. 2 50-80954BB-01 B1...
