© 2007. All rights reserved. Black Box Corporation.

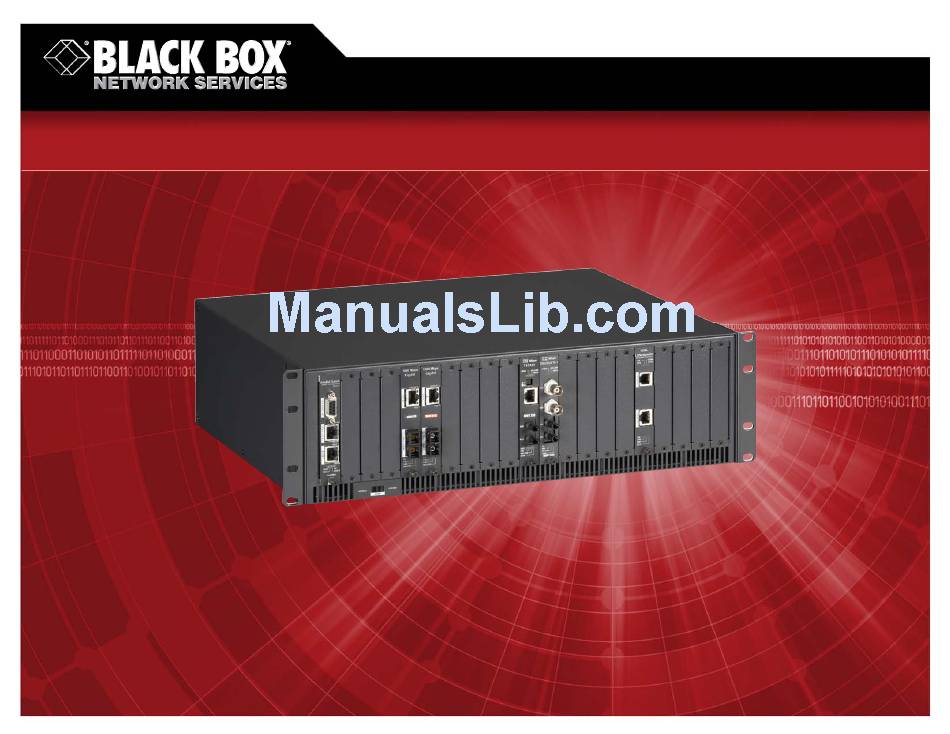

High-Density Media Converter System II
Fully manageable systems with Layer 1
Fully manageable systems with Layer 1
or Layer 2 conversion options.
or Layer 2 conversion options.
OVERVIEW (SUBHEAD)
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Advertisement
Table of Contents
Related Manuals for Black Box LMC5207A
Summary of Contents for Black Box LMC5207A
- Page 1 OVERVIEW (SUBHEAD) © 2007. All rights reserved. Black Box Corporation. High-Density Media Converter System II Fully manageable systems with Layer 1 Fully manageable systems with Layer 1 or Layer 2 conversion options. or Layer 2 conversion options. FREE 24-hour Tech Support: 724-746-5500...
-
Page 2: Table Of Contents
All media converter modules are hot-swappable—you never need to power down a chassis in order to change a module. The High-Density Media Converter System II is easy to integrate into any managed network. Not only does it support industry-standard SNMP, but fiber modules include LinkLoss and/or FiberAlert to alert you if a fiber link is interrupted. -
Page 3: Managed Chassis
SNMP, but it comes with a CD-ROM that contains iView management software. This software enables you to configure the chassis and the media converter modules plugged into it in minutes and provides you with a cross-platform application for managing intelligent networking devices from virtually any 32- bit Windows ®... -
Page 4: Media Converter
LMC5214A To add a spare power supply to LMC5206A, order… DC Module LMC5213A If you need a replacement AC power supply for the LMC5207A or a spare AC power supply for the LMC5227A, order… AC Module LMC5210A To replace the LMC5208A’s DC power supply, order…... -
Page 5: Blackbox.com
Although these models are designed primarily to work as remote chassis when paired with a larger, managed High- Density Media Converter System II Chassis, you can also use them on their own, particularly in applications where you don’t require an SNMP card or chassis management. -
Page 6: Media Converter
(with a bandwidth setting accuracy of +0% to -5%) Connectors — Network: (2) shielded RJ-45 (10BASE-T); Serial DTE: (1) DB9 F (RS-232) Indicators — (4) LEDs: LINK, RCV, XMT, HDX/FDX Power — From the High-Density Media Converter System II Chassis Item Bandwidth Manager LE1028C... -
Page 7: Blackbox.com
“silent failures” on copper-to- fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter’s Link LED— the link status of the fiber segment will always be reflected by the twisted-pair segment so you’re informed quickly of fiber problems. -
Page 8: Layer 1 Media Converter Modules
LMC5014C-R2 5/4/2007 724-746-5500 #24435 Item High-Density Media Converter System II Layer 1 Media Converter Modules 10BASE-T to 10BASE-FL Multimode, 850-nm, 4 km LMC5014C-R2 LMC5015C-R2 Multimode, 1300-nm, 10 km LMC5016C-R2 LMC5017C-R2 Single-Mode, 1310-nm, 20 km LMC5018C LMC5019C Single-Mode Plus, 1310-nm, 40 km... -
Page 9: Blackbox.com
LAYER 2 MEDIA CONVERTER MODULES Unlike Layer 1 media converters, which only convert one Ethernet media type to another, Layer 2 Media Converter Modules for the High-Density Media Converter System II are true switches— they actively store, filter, and forward Ethernet packets like any other MAC layer switch. -
Page 10: Layer 2 Media Converter Modules
5/4/2007 724-746-5500 #24435 Item High-Density Media Converter System II Layer 2 Media Converter Modules 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX Multimode, 850-nm, 300 m LMC5040C LMC5041C Multimode, 1300-nm, 2 km LMC5196C LMC5195C Single-Mode, 1310-nm, 40 km LMC5194C LMC5193C 10BASE-T/100BASE-TX to 100BASE-FX Multimode, 300-nm, 2 km... -
Page 11: Media Converter
Connectors — T1/E1/J1: (1) RJ-48; Fiber optic: (1) pair of ST , SC, or MT-RJ ® Power — From the High-Density Media Converter System II chassis blackbox.com Item T1/E1/J1 Modules for the High-Density Media Converter System II Twisted Pair (RJ-48) to Multimode, 1300-nm, 2 km... -
Page 12: Blackbox.com
Speed (Maximum) — DS3: 45 Mbps; E3: 34 Mbps; STS-1: 52 Mbps CE Approval — Yes Connectors — DS3/E3/STS-1: (1) BNC; Fiber optic: (1) pair of ST or SC Power — From the High-Density Media Converter System II chassis blackbox.com Item DS3/E3/STS-1 Modules for the High-Density Media Converter... -
Page 13: Blackbox.com
5/4/2007 724-746-5500 #24435 VDSL LAN EXTENDER MODULES FOR THE HIGH-DENSITY MEDIA CONVERTER SYSTEM II Save on wiring costs by extending Ethernet over ordinary phone-grade wiring. VDSL LAN Extender Modules for the High-Density Media Converter System II are the perfect way to extend your Ethernet network past the 100-meter (328-ft.) -
Page 14: Media Converter
No more time wasted searching for them! You can check a link by observing the status of the media converter’s Link LED. The FiberAlert function informs you when a fault occurs on one fiber strand and the link can’t carry bidirectional communications between two fiber devices. -
Page 15: Managed Copper To Fiber Converters
Or you can use an individual 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX Module as a single CPE solution, situated as a standalone converter linked to a media converter at the CO or directly to a fiber optic switch. In this setup, you’d manage the module from the central office.
