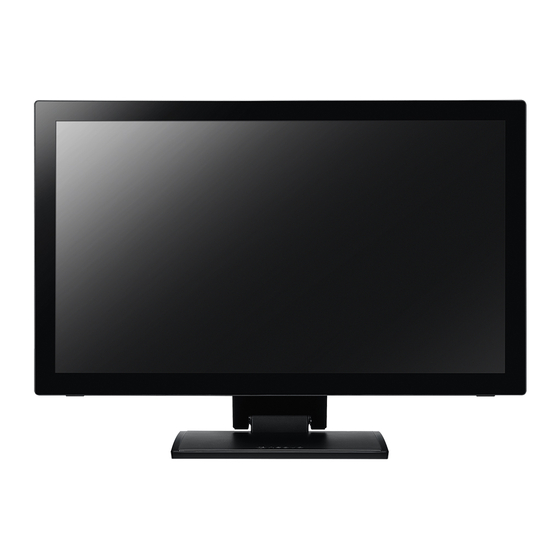

- Page 1 TM-22, TM-23 & TM-27 Multi-touch Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ..............3 FOR YOUR SAFETY ..............3 SPECIAL NOTES ON LCD MONITOR ........5 BEFORE YOU OPERATE THE MONITOR ........6 FEATURES ..................6 CHECKING THE CONTENTS OF THE PACKAGE .....6 INSTALLATION INSTRUCTIONS ..........6 ADJUSTING THE VIEWING ANGLE ...........6 CONNECTING CABLES .............7 GENERAL INSTRUCTIONS ............9 EXTERNAL CONTROLS .............9 OPERATING INSTRUCTIONS ............9... -
Page 3: Safety Precautions
FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. SAFETY PRECAUTIONS FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) This device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. - Page 4 FOR YOUR SAFETY PRECAUTIONS • Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. • Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance.
-
Page 5: Special Notes On Lcd Monitor
FOR YOUR SAFETY WEEE DECLARATION Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste... -
Page 6: Before You Operate The Monitor
6. USB Cable INSTALLATION INSTRUCTIONS For optimal viewing it is recommended to look at the full face of the monitor. You are able to adjust the monitor’s height (H): 120mm-385mm(TM-22) 129mm-409mm(TM-23) 145mm-454mm(TM-27) Figure 1 Installation Instruction ADJUSTING THE VIEWING ANGLE Hold the stand so that the monitor does not topple when you change the monitor’s angle.You are able to adjust the... -
Page 7: Connecting Cables
BEFORE YOU OPERATE THE MONITOR Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an External universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. - Page 8 BEFORE YOU OPERATE THE MONITOR Figure 3 Connecting Cables Label Cable Type AC-IN socket DP input socket HDMI input socket D-SUB input socket AUDIO-IN socket USB upstream USB downstream...
-
Page 9: General Instructions
• Connect the video cable from the monitor to the video card. • Press the power button to turn on the monitor position. The power indicator will light up. WebCam TM-22/TM-23:without WebCam TM-27: with WebCam Figure 4 External Control Button EXTERNAL CONTROLS No. -
Page 10: Front Panel Control
OPERATING INSTRUCTIONS FRONT PANEL CONTROL • / Power Button: Press this button to turn the monitor ON or OFF, and display the monitor’s state. • Power Indicator: Blue — Power On mode. Orange — Standby mode. • MENU / ENTER: Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit OSD menu when in Volume Adjust OSD status. -
Page 11: How To Adjust A Setting
OPERATING INSTRUCTIONS HOW TO ADJUST A SETTING 1. Press the MENU-button to activate the OSD window. 2. Press UP or DOWN to navigate through the functions. Once the desired function ishighlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press UP or DOWN again to navigate through the submenu functions. -
Page 12: Adjusting The Picture
OPERATING INSTRUCTIONS ADJUSTING THE PICTURE The descriptions for function control LEDS. Main Main Menu Sub Menu Menu Description Item Item Menu Icon Contrast Contrast from Digital-register Brightness Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Luminance Game Game Mode Movie Movie Mode... - Page 13 OPERATING INSTRUCTIONS Main Main Menu Sub Menu Menu Description Item Item Menu Icon Full Disable or Enable Full Enhance on or off Mode. Enhance Nature Disable or Enable Nature Skin on or off Mode. Skin Green Disable or Enable Green Field Color on or off Mode.
- Page 14 OPERATING INSTRUCTIONS Main Main Menu Sub Menu Menu Description Item Item Menu Icon D-Sub Select analog input source. Input Select Select DP input source. HDMI Select HDMI input source. DDC/CI Turn ON/OFF DDC/CI Support. Extra Reset Reset the menu to default. Show the information of the Information main image and sub-image...
-
Page 15: Plug And Play
OPERATING INSTRUCTIONS PLUG AND PLAY Plug & Play DDC1/2B Feature This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 16: Technical Support (Faq)
TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution Power LED is not on. • Check if the Power Switch is in the ON position. • Power Cord should be connected. No Plug & Play • Check if the PC system is Plug & Play compatible. •... -
Page 17: Error Message & Possible Solution
TECHNICAL SUPPORT (FAQ) ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected. If the connector is loose, tighten the connector’s screws. 2. Check the signal cable connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.(page 20) -
Page 18: Appendix
APPENDIX SPECIFICATIONS Specifications TM-22 TM-23 TM-27 LED-backlit LED-backlit LED-backlit Panel Type TFT LCD TFT LCD TFT LCD Panel Size 21.5" 23.0" 27.0" LCD Panel Pixel Pitch (mm) 0.248 x 0.248 0.265 x 0.265 0.311 x 0.311 Max. Resolution 1920 x 1080 Display Colour 16.7 M... - Page 19 APPENDIX Specifications TM-22 TM-23 TM-27 • UP/Volume+ • DOWN/ECO • AUTO/SOURCE/EXIT Switch • MENU/ENTER • POWER BUTTON External • Luminance Control • Image Setup • Color Temp. Functions • Color Boost • Picture Boost • OSD Setup • Extra Plug & Play...
-
Page 20: Factory Preset Timing Table
APPENDIX FACTORY PRESET TIMING TABLE Preset Display Modes Horizontal Vertical Standard Resolution Frequency (KHz) Frequency (Hz) 640×480 @60Hz 31.469 59.940 640×480 @67Hz 35.000 66.667 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 800×600 @56Hz 35.156 56.250 800×600 @60Hz 37.879... -
Page 21: Connector Pin Assignment
APPENDIX HDMI & DP Timing Table Format Resolution Vertical Frequency 480P 640 x 480 60Hz 480P 720 x 480 60Hz 576P 720 x 576 50Hz 720P 1280 x720 50Hz,60Hz 1080I 1920 x 1080 50Hz,60Hz 1080P 1920 x 1080 50Hz,60Hz CONNECTOR PIN ASSIGNMENT Figure 6 15-Pin Color Display Signal Cable Pin No. - Page 22 APPENDIX Figure 7 20-Pin Display Port Signal Cable Pin No. Mnemonic Signal ML Lane 3 (n) Lane 3 - Ground ML Lane 3 (p) Lane 3 + ML Lane 2 (n) Lane 2 - Ground ML Lane 2 (p) Lane 2 + ML Lane 1 (n) Lane 1 - Ground...
- Page 23 APPENDIX Figure 8 HDMI Signal Cable Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock TMDS Data 2 TMDS Data 1+ Reserved (N.C. on device) TMDS Data 1 Shield TMDS Data 1 TMDS Data 0+ DDC/CEC Ground...
-
Page 24: Product Dimensions
PRODUCT DIMENSIONS TM-22 522.4 mm ► Front View ► Side View 57.2 mm ► Top View 229.9 mm... - Page 25 TM-23 561.0 mm ► Front View 57.2 mm ► Side View ► Top View 229.9 mm...
-
Page 26: Front View
TM-27 659.5 mm ► Front View 56.0 mm ► Side View ► Top View 318.8 mm Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
