- Page 1 TBX-2201 LCD Monitor User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information WEEE ............................... 4 Precautions Notice ............................... 5 Cautions When Setting Up ........................5 Cleaning and Maintenance ........................6 Cautions When Using ..........................6 Notice for the LCD Monitor ........................7 Chapter 1: Product Description 1.1 Package Contents ..........................8 1.2 Wall Mounting Installation Preparation .................... - Page 3 TABLE OF CONTENTS 5.9 EcoSmart Sensor ..........................32 5.10 Network ............................34 Chapter 6: Appendix 6.1 Warning Messages ..........................35 6.2 Supported Resolutions ........................36 6.3 Troubleshooting ..........................37 6.4 Transporting the LCD Monitor ......................39 Chapter 7: Specifications 7.1 Monitor Specifications ........................40 7.2 Monitor Dimensions ..........................
-
Page 4: Safety Information Weee
SAFETY INFORMATION Safety Information WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 5: Precautions
PRECAUTIONS Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cleaning And Maintenance
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and monitor experience. -
Page 7: Notice For The Lcd Monitor
PRECAUTIONS Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 8: Chapter 1: Product Description
CHAPTER 1: PRODUCT DESCRIPTION Chapter 1: Product Description 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor Quick Start Guide Warranty card TBX-2201 Quick Start Guide Note:... -
Page 9: Wall Mounting Installation Preparation
75mm are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. Note: Take measures to prevent the... -
Page 10: Lcd Monitor Overview

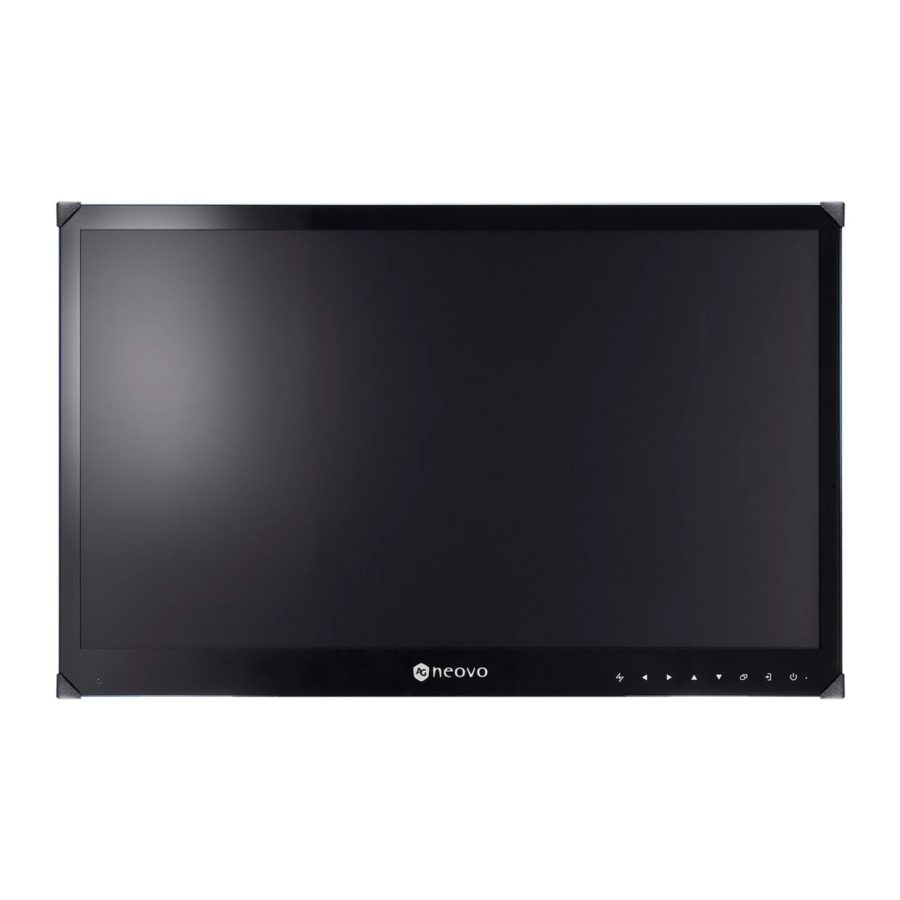

PRODUCT DESCRIPTION 1.3 LCD Monitor Overview 1.3.1 Front View and Keypad Buttons AUTO DOWN Press to close the OSD menu or exit a Hot Key: Picture Mode submenu. • During OSD menu selection, press to select an option or adjust the settings. LEFT MENU Hot Key: Volume Down... -
Page 11: Rear View
PRODUCT DESCRIPTION 1.3.2 Rear View HDMI HDMI SERVICE RS232 SERVICE RS232 DC IN HDMI IN RS232 OUT Connect HDMI signals input. Connect RS232 output to additional displays. HDMI OUT Connect HDMI signals output. For the Internet connection with an Ethernet cable. -
Page 12: Managing Cables
PRODUCT DESCRIPTION 1.4 Managing Cables When shipped, the cable cover is installed on the rear of the LCD monitor. Before making any device connection, you have to remove first the screws securing the cable cover. Then remove the cable cover. After performing the necessary connection, collect the cables together and replace the cable cover back onto its compartment. -
Page 13: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS Chapter 2: Making Connections 2.1 Connecting the Power Connect the power source to the DC power input at the rear of the LCD monitor. HDMI SERVICE RS232 +Vin DC IN Caution: -Vin ♦ Make sure that the LCD monitor is not connected to the power source before making any connections. -
Page 14: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Connecting to Wired Network Connect one end of a LAN cable to the LAN connector of the LCD monitor and the other end to the LAN connector of the computer. HDMI ROUTER SERVICE... -
Page 15: Using Hdmi Cables
MAKING CONNECTIONS Using HDMI Cables Connect one end of an HDMI cable to the HDMI IN connector of the LCD monitor and the other end to the HDMI connector of your device. To create a daisy-chain configuration for applications, connect one end of an HDMI cable to the HDMI OUT connector of the Monitor 1 and the other end to the HDMI IN connector of the Monitor 2. -
Page 16: Chapter 3: Using The Lcd Monitor
CHAPTER 3: USING THE LCD MONITOR Chapter 3: Using the LCD Monitor 3.1 Turning on the Power POWER button LED indicator Connect the power source to the DC power input at the Note: rear of the LCD monitor. ♦ Disconnect the power source to completely cut off power. -
Page 17: Adjusting The Volume
USING THE LCD MONITOR 3.2 Adjusting the Volume VOLUME buttons Press the button to call out the volume bar. Press the button to increase volume or the button to decrease volume. 3.2.1 Muting the Audio Press the buttons simultaneously to mute or unmute the audio. 3.3 Locking the OSD Menu Lock the OSD menu to protect the LCD monitor from unauthorised users or from accidentally pressing the keypad. -
Page 18: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU Chapter 4: On Screen Display Menu 4.1 Using the OSD Menu Operation Display the main menu screen. Press the button. 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R... - Page 19 ON SCREEN DISPLAY MENU Operation Select the submenu item. Press the button. x 1 0 8 0 6 0 H z B R I G H T N E S S I G H T N E S S C O N T R A S T L O U R T E M P .
-
Page 20: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P . - Page 21 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 4. ASPECT RATIO • FULL See page 27. • REAL • NATIVE • ZOOM • OVERSCAN 5. ANTI-BURN-IN • ENABLE See page 28. • INTERVAL (HOURS) • MODE 6. OSD SETTING • TRANSPARENCY See page 29.
-
Page 22: Chapter 5: Adjusting The Lcd Monitor
CHAPTER 5: ADJUSTING THE LCD MONITOR Chapter 5: Adjusting the LCD Monitor 5.1 Brightness 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S OSD window. - Page 23 ADJUSTING THE LCD MONITOR Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...
-
Page 24: Colour Temp
ADJUSTING THE LCD MONITOR 5.2 Colour Temp. 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z N E U T R A L window. W A R M B R I G H T N E S S C O O L U S E R... -
Page 25: Image Setting
ADJUSTING THE LCD MONITOR 5.3 Image Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S H A R P N E S S window. B R I G H T N E S S S A T U R A T I O N C O N T R A S T 2. - Page 26 ADJUSTING THE LCD MONITOR Item Function Operation Range Adjusts black and white levels for video. FULL Press the button to select the setting. LIMIT Note: This menu option is only available if the input source is HDMI. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limit...
-
Page 27: Aspect Ratio
ADJUSTING THE LCD MONITOR 5.4 Aspect Ratio 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z F U L L window. R E A L B R I G H T N E S S N A T I V E Z O O M C O L O U R... -
Page 28: Anti-Burn-In
ADJUSTING THE LCD MONITOR 5.5 Anti-Burn-in 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z E N A B L E OSD window. O F F B R I G H T N E S S I N T E R V A L ( H O U R S ) C O L O U R... -
Page 29: Osd Setting
ADJUSTING THE LCD MONITOR 5.6 OSD Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z T R A N S P A R E N C Y window. -
Page 30: Audio Setting
ADJUSTING THE LCD MONITOR 5.7 Audio Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z V O L U M E window. B R I G H T N E S S A U D I O C O L O U R T E M P . -
Page 31: System
Enables or disables the signal information to SIGNAL INFO be displayed on the screen. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo LOGO logo is briefly displayed after the monitor is powered on. -
Page 32: Ecosmart Sensor
ADJUSTING THE LCD MONITOR Item Function Operation Range Use to reset all to default settings, except Press the button to RECALL Language and NETWORK related settings. execute the function. 5.9 EcoSmart Sensor With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light. - Page 33 ADJUSTING THE LCD MONITOR Item Function Operation Value AUTO Press the button to Sets the auto brightness mode. select the setting. USER The mode can be set to: MODE • AUTO - This mode is the default mode. The LCD brightness automatically adjusts to the ambient brightness.
-
Page 34: Network
ADJUSTING THE LCD MONITOR 5.10 Network 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z N E T W O R K C O N F I G U R A T I O N window. -
Page 35: Chapter 6: Appendix
CHAPTER 6: APPENDIX Chapter 6: Appendix 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the I N P U T S I G N A L the graphics card of the computer refresh rate of the graphics O U T O F R A N G E is set too high. -
Page 36: Supported Resolutions
APPENDIX 6.2 Supported Resolutions Resolution PC Mode Refresh Rate Horizontal Vertical IBM VGA IBM VGA Apple Mac II VESA VESA VESA VESA VESA VESA Apple Mac II VESA 1024 VESA 1024 VESA 1024 VESA 1280 1024 VESA 1280 1024 Apple Mac II 1152 VESA 1152... -
Page 37: Troubleshooting
APPENDIX Resolution Video Mode Refresh Rate Horizontal Vertical HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 6.3 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power source is properly connected to the LCD monitor. •... - Page 38 APPENDIX Problem Possible Cause and Solution Faint shadows from a • Turn off the LCD monitor for extended periods of time. static image appear on the • Use a screen saver or a black and white image and run it for extended screen.
-
Page 39: Transporting The Lcd Monitor
APPENDIX 6.4 Transporting the LCD Monitor To transport the LCD monitor for repair or shipment, place the monitor in its original packaging carton. Place the two foam cushions on each side of the LCD monitor for protection. Place the LCD monitor down in the box. Place the accessories box on the designated area (if necessary). -
Page 40: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS Chapter 7: Specifications 7.1 Monitor Specifications TBX-2201 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 21.5" Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.248 mm Brightness 250 cd/m² Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178°... -
Page 41: Monitor Dimensions
7.2 Monitor Dimensions 7.2.1 TBX-2201 Dimensions 362.7 80.4 112.6 282.3 80.4 507.6(outline dimension) 68.3 505.6 31.3 477.76(opening dimension) M4x10L AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. TBX210_UM_V010...
