Summary of Contents for AG Neovo TX-10

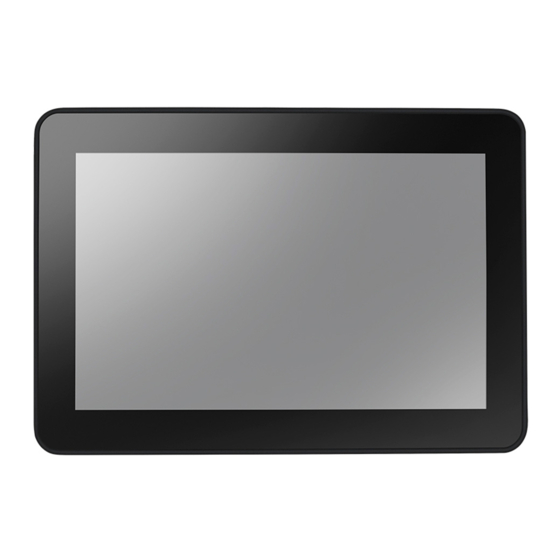

- Page 1 TX-10 LCD Monitor User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Display ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................8 1.2 Removal and Fitting Cable Cover ...................... - Page 3 TABLE OF CONTENTS CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications .......................... 31 7.2 Display Dimensions ..........................32...
-
Page 4: Safety Information
Safety Information SAFETY INFORMATION WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 5: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cautions When Using
Users who have already mounted the display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 7: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD display yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 8: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. Quick Start Guide Warranty Card LCD Display Quick Start Guide TX-10 LCD Monitor TX-10_Quick Guide_V010 displays.agneovo.com Wired OSD Controller Power Adapter Power Cord... -
Page 9: Removal And Fitting Cable Cover
PRODUCT DESCRIPTION 1.2 Removal and Fitting Cable Cover 1. Remove the screw securing the cable cover. Then remove the cable cover from the monitor. Cable Cover 2. Connect the cables and route them through the slots on the cable cover. 3. -
Page 10: Installing An Open Frame Monitor With L-Brackets
PRODUCT DESCRIPTION 4. Secure the cables to the cable cover using the cable ties. Cable Tie 1.3 Installing an Open Frame Monitor with L-Brackets To install an open frame monitor with L-brackets, you need the following items: Bracket 1 X 2pcs Bracket 2 X 2pcs Screw M4 X 8pcs 1. -
Page 11: Wall Mounting
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Lcd Display Overview
PRODUCT DESCRIPTION 1.5 LCD Display Overview Rear Front Audio-Out DC IN HDMI RJ45 Audio OUT: Connect audio signals output (3.5 mm Stereo Audio Jack). Only applicable for DisplayPort or HDMI input signal. DC IN: Connect with the supplied power adaptor. DisplayPort IN: Connect DisplayPort signals input. -
Page 13: Wired Osd Controller
PRODUCT DESCRIPTION 1.6 Wired OSD Controller MENU SELECT MENU: • Press to display OSD menu. • When OSD menu is ON, press to hide OSD menu or return to the previous menu. UP (p): • Press to display the Brightness quick menu. Press the p/q button to adjust the brightness level. •... -
Page 14: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 15: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • DP Connect one end of a DP cable to the DP connector of the HDMI LCD display and the other end to the DP connector of the computer. -
Page 16: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Output Connect a headphone to the headphone jack of the LCD display. Audio-Out 2.4 Connecting the Wired OSD Controller Connect the wired OSD controller to the RJ45 connector of the LCD display. MENU RJ45 SELECT... -
Page 17: Connecting Usb For Touch Screen Control
MAKING CONNECTIONS 2.5 Connecting USB for Touch Screen Control Connect one end of a USB cable to the USB connector of the LCD display and the other end to the USB connector of the computer. 2.6 Ventilation Requirements for Enclosure Locating To allow heat to disperse, avoid installing the LCD display directly on the cabinet wall and make sure the operating/storage temperature/humidity requirements are met as described below: •... -
Page 18: Chapter 3: Using The Lcd Display
Chapter 3: Using the LCD Display CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power 1. Connect the power to the LCD display. Refer to page 14. 2. Connect the wired OSD controller to the LCD display. Refer to page 16. 3. -
Page 19: Adjusting Display Brightness
USING THE LCD DISPLAY 3.3 Adjusting Display Brightness Press the p button to open the Brightness quick menu. MENU UP Button SELECT CONTRAST BRIGHTNESS 1 0 0 The following menu appears on the screen: CONTRAST BRIGHTNESS 1 0 0 Then press the p/q buttons to adjust the LCD display brightness level. 3.4 Adjusting Display Contrast Press the q button to open the Contrast quick menu. -
Page 20: Using Auto Adjustment Function
USING THE LCD DISPLAY 3.5 Using Auto Adjustment Function Auto Adjustment function automatically tunes the LCD display to its optimal setting, including horizontal position, vertical position, clock, and phase. Press the SELECT button to perform auto adjustment if the source is VGA. MENU SELECT Button SELECT... -
Page 21: Chapter 4: On Screen Display Menu
Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Operation MENU Display the main menu screen. Press CONTRAST BRIGHTNESS 1 2 8 0 8 0 0 F H : 4 9 KHZ F V : 5 9 . -
Page 22: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference CONTRAST Refer to page 23. Brightness BRIGHTNESS AUTO ADJUST Refer to page 24. VGA Setting LEFT/RIGHT DOWN/UP HORIZONTAL SIZE FINE OSD LEFT/RIGHT Refer to page 25. System OSD DOWN/UP OSD TIMEOUT FACTORY RESET INPUT SELECT... -
Page 23: Chapter 5: Adjusting The Lcd Display
Chapter 5: Adjusting the LCD Display CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Brightness Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select and then press SELECT to enter the chosen menu. 3. -
Page 24: Vga Setting Menu
ADJUSTING THE LCD DISPLAY 5.2 VGA Setting Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select and then press SELECT to enter the chosen menu. 3. Press SELECT (repeatedly if necessary) to select the submenu item. AUTO ADJUST LEFT/RIGHT DOWN/UP... -
Page 25: System Menu
ADJUSTING THE LCD DISPLAY 5.3 System Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select and then press SELECT to enter the chosen menu. 3. Press SELECT (repeatedly if necessary) to select the submenu item. OSD LEFT/RIGHT OSD DOWN/UP OSD TIMEOUT... -
Page 26: Language Menu
ADJUSTING THE LCD DISPLAY 5.4 Language Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select and then press SELECT to enter the chosen menu. ENGLISH ESPAÑOL FRANÇAIS DEUTSCH ITALIANO 1 2 8 0... -
Page 27: Chapter 6: Appendix
Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The LCD display cannot detect the √ Check if the input source is input source signal. turned ON. -
Page 28: Cleaning
CHAPTER 6: APPENDIX 6.3 Cleaning Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. -
Page 29: Troubleshooting
APPENDIX 6.4 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power adapter is properly connected to the LCD display. • Check if the power cord is plugged into the power outlet and to the power adapter. -
Page 30: Transporting The Lcd Display
APPENDIX 6.5 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging box. 1. Place the two foam cushions on each side of the LCD display for protection. 2. Place the LCD display down in the box. 3. - Page 31 Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications TX-10 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 10.1” Max. Resolution 1280 x 800 Pixel Pitch 0.169 mm Brightness 500 cd/m Contrast Ratio 1300:1 Viewing Angle (H/V) 170°/170°...
- Page 32 260.7(outline dimension) 39.4 255.8(glass outline dimension) 78.35 78.35 16.4 218(opening dimension) 10.4 M4x6L Cable cover 20.35 20.35 220.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. TX1000_UM_V011...
