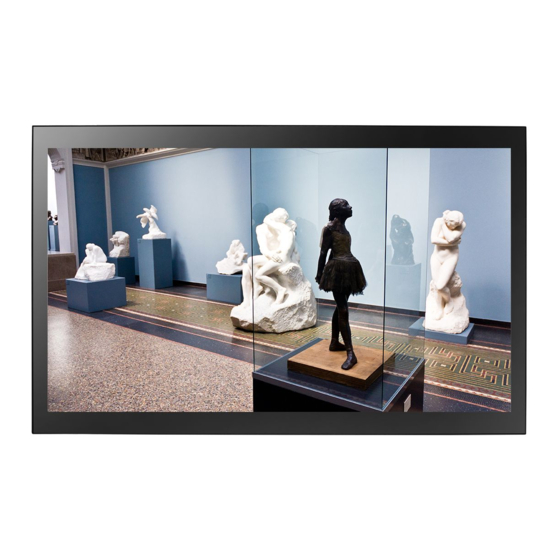

- Page 1 TX-32P & TX-42P LED-Backlit Touch Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Contents SAFETY INFORMATION ................1 Federal Communications Commission (FCC) Notice (U.S. Only) ............1 CE Declaration of Conformity ........................2 Polish Center for Testing and Certification Notice ..................3 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................3 Information for U.K. - Page 3 3.2 Selecting the Input Source Signal ...................... 28 3.3 Adjusting the Volume .......................... 29 3.4 Setting Up the IR Sensor (For TX-42P only) ..................30 CHAPTER 4: ON SCREEN DISPLAY MENU ..........31 4.1 Using the OSD Menu ......................... 31 4.2 OSD Menu Tree ..........................
-
Page 4: Safety Information
SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Ce Declaration Of Conformity
SAFETY INFORMATION CE Declaration of Conformity We declare under our responsibility that the product is in conformity with the following standards: • EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 (Safety requirement of Information Technology Equipment). • EN55032:2012+AC:2013 (Radio Disturbance requirement of Information Technology Equipment). • EN55024:2010 (Immunity requirement of Information Technology Equipment). •... -
Page 6: Polish Center For Testing And Certification Notice
SAFETY INFORMATION Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. -
Page 7: Information For U.k. Only
SAFETY INFORMATION Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fit new fuse which should be a BS 1362 5A,A.S.T.A. -
Page 8: North Europe (Nordic Countries) Information
SAFETY INFORMATION How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) • The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E”... -
Page 9: End-Of-Life Disposal
SAFETY INFORMATION End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. -
Page 10: Turkey Rohs
SAFETY INFORMATION Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. -
Page 11: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 12: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not... -
Page 13: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 14: Chapter 1: Product Description
TX-32P & TX-42P ENTER ♦ For all other regions, apply a Quick Start Guide SLIDE SHOW EXIT SOURCE TX-32P & TX-42P LED-Backlit Touch Display Quick Start Guide PHOTO MUSIC MOVIE power cord that conforms to TX-32P/TX-42P_Quick Guide_V010 16:9/4:3 ROTATE www.agneovo.com... -
Page 15: Preparing For The Installation
PRODUCT DESCRIPTION 1.2 Preparing for the Installation • Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is Warning: required, please consult your service agent. • The product should be installed on a flat surface to avoid tipping. ♦... -
Page 16: Carrying The Display
PRODUCT DESCRIPTION 1.3.2 Carrying the Display When carrying the display, always hold it with two people using both hands and the touch screen facing forward. Caution: ♦ Avoid applying force or using sharp objects on the LCD panel at all times. 1.3.3 Setting Down the Display When setting the display down, place the screen face down on a flat... -
Page 17: Installing And Removing Table Stands (Optional)
PRODUCT DESCRIPTION 1.4 Installing and Removing Table Stands (optional) To install table stands: Ensure your display is powered off. Spread a protective sheet on a flat surface. Carefully place the display face-down on the protective sheet. Align the stand by the screw holes and then tighten the supplied screws on both sides of the display. -
Page 18: Wall Mounting Installation
10 mm longer than the thickness of the mounting bracket) and tighten them securely. TX-42P ♦ Unit weight= 12.5 kg (TX- 32P) or 24.5 kg (TX-42P). The 1.5.1 VESA Grid equipment and its associated mounting means still remain Model Name VESA Grid secure during the test. -
Page 19: Ventilation Requirements For Enclosure Locating
PRODUCT DESCRIPTION Caution: To prevent the display from falling: ♦ For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation instructions, refer to the guide received with the respective bracket. ♦... -
Page 20: Lcd Display Overview
PRODUCT DESCRIPTION 1.7 LCD Display Overview 1.7.1 Control Panel AUTO MINUS PLUS MENU POWER TX-32P AUTO MINUS PLUS MENU POWER TX-42P... - Page 21 PRODUCT DESCRIPTION AUTO MENU • Automatically selects the video input • Displays the On Screen Display source when the OSD menu is off. (OSD) menu. • Exits the current menu when the • Selects items or accepts the settings OSD menu is on. made in the OSD menu.
-
Page 22: Input/Output Terminals
PRODUCT DESCRIPTION 1.7.2 Input/Output Terminals TX-32P TX-42P... - Page 23 PRODUCT DESCRIPTION Audio in Connects with a host computer using a Connects with the audio out connector of a USB cable for touch screen support. video source such as a computer, VCR, or DVD player when the display is connected Main Power switch to the source via the VGA or DVI connector.
-
Page 24: Remote Control
PRODUCT DESCRIPTION 1.8 Remote Control 1.8.1 General Functions POWER POWER MUTE Turns the display on or off. Note: MENU ♦ If the power indicator is not lit then the controls will not function. MENU Displays the OSD menu. Please refer to page 34. ENTER ] NAVIGATION buttons Navigates through menus, selects items, and... -
Page 25: Inserting The Batteries In The Remote Control
RC operational distance display is under direct sunlight TX-32P θ= ±30º (for H & V) ≤3m or strong illumination, or when TX-42P θ= ±30º (for H & V) ≤1m there is an obstacle in the path of signal transmission. 30° 30°... -
Page 26: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect one end of the power cord to the AC IN connector at the side of the LCD display. Connect the other end of the power cord to a power outlet or a power supply. Set the Main Power switch to ON. -
Page 27: Connecting A Computer
MAKING CONNECTIONS 2.2 Connecting a Computer 2.2.1 Using VGA Input Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end of a D-sub cable to the VGA OUT (D-Sub) connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 28: Using Dvi Input
MAKING CONNECTIONS 2.2.3 Using DVI Input Connect one end of a DVI cable to the DVI connector of the LCD display and the other end of a DVI cable to the DVI OUT connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 29: Using The Touch Screen
USB port of the display and a computer. After completing the driver installation, you can operate the computer by tapping, swiping, or scrolling the display. TX-32P Computer TX-42P Computer Note: ♦ The touch driver will be installed automatically for the systems running Microsoft Windows 7, Windows 8, Windows 10, Linux 2.6/3.6, Mac OS, OSX, and Android (2.3 or above). -
Page 30: Connecting External Equipment (Dvd / Dvd-B)
MAKING CONNECTIONS 2.3 Connecting External Equipment (DVD / DVD-B) 2.3.1 Using HDMI Video Input Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the video player (DVD / DVD-B). HDMI DVD / DVD-B HDMI OUT... -
Page 31: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power POWER button Plug the power cord to a power POWER MUTE Note: outlet or power supply. ♦ The LCD display still consumes Set the Main Power switch to MENU power as long as the power cord is connected to the power outlet. -
Page 32: Adjusting The Volume
POWER MUTE MENU USING THE LCD DISPLAY 3.3 Adjusting the Volume ENTER Note: SLIDE SHOW SOURCE EXIT ♦ After pressing the button, the volume adjustment bar is displayed on the screen PHOTO MUSIC MOVIE automatically. 16:9/4:3 ROTATE ZOOM Volume BACKMUSIC VOLUME buttons ♦... -
Page 33: Setting Up The Ir Sensor (For Tx-42P Only)
USING THE LCD DISPLAY 3.4 Setting Up the IR Sensor (For TX-42P only) Before using the remote control, the IR sensor must be positioned correctly. The IR sensor is located on the right side of the rear of the display as illustrated below. -
Page 34: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Control Panel Remote Control Press the MENU button. Display the main menu screen. Color Image Setting OSD Menu Signal Source Audio Special 640 X 480 60H z Enter the submenu. - Page 35 ON SCREEN DISPLAY MENU Menu Navigation Control Panel Remote Control Close the OSD window. Press the AUTO Press the EXIT button repeatedly if button repeatedly if necessary. necessary. When settings are modified, all changes are saved when the user does the following: •...
-
Page 36: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Color Image Setting OSD Menu Signal Source Audio Special 6 40 X 4 8 0 6 0H z Main Menu Submenu Remarks 1. Color • Contrast See page 34. • Brightness • Color Adjust •... -
Page 37: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Color Adjusts the LCD display’s color settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. Color Contrast Image Setting Brightness 2 Select Color, then press the MENU OSD Menu Color Adjust button on the control panel or the... - Page 38 5800 sRGB Press the PLUS / MINUS button USER Adjusts the color temperature of the on the control panel or the Color Temp display. button on the remote control to For TX-42P: select the setting. 11500k 9300k 6500k sRGB USER...
-
Page 39: Image Setting
ADJUSTING THE LCD DISPLAY 5.2 Image Setting Adjusts the LCD display’s image settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. Color Clock Image Setting Phase 2 Select Image Setting, then press the OSD Menu H. -
Page 40: Osd Menu
OSD Timer seconds the OSD menu is displayed button on the remote control to For TX-42P: before it automatically closes (if 0 adjust the value. 0 to 100 is selected the OSD menu will not close automatically). -
Page 41: Signal Source
0 to 16 on the control panel or the Volume Adjusts the volume. button on the remote control to For TX-42P: adjust the value. 0 to 20 Press the MENU button on the control panel or the ENTER button Mute Mutes or unmutes the audio. - Page 42 ADJUSTING THE LCD DISPLAY Item Function Operation Range Press the MENU button on the HDMI control panel or the ENTER button Audio Select Chooses an audio source on the remote control to select the setting.
-
Page 43: Special
For TX-32P: Press the PLUS / MINUS button 0 to 16 Sets a unique 2-digit number for on the control panel or the Monitor Id button on the remote control to the display. For TX-42P: adjust the value. 0 to 60... -
Page 44: Chapter 6: Appendix
CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics Out of Range is set too high. card. - Page 45 APPENDIX DVI Resolution: Horizontal Pixel Frequency Resolution Refresh Rate (Hz) Standard Type Frequency (KHz) (MHz) 31.5 25.175 Industrial Standard 640x480 37.5 31.5 1280x1024 1920x1080 67.5 148.5 HDMI Resolution: Horizontal Pixel Frequency Resolution Refresh Rate (Hz) Standard Type Frequency (KHz) (MHz) 1920x1080 67.5 148.5...
-
Page 46: Cleaning
APPENDIX 6.3 Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 47: Troubleshooting
APPENDIX 6.4 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The main power switch on the 1 Plug in the power cord. side of the display is not switched 2 Make sure the Main Power switch is switched on. •... -
Page 48: Transporting The Lcd Display
3 Place the monitor inside the supplied protective bag (c). 4 Place the LCD display down in the box. 5 Place the upper foam cushion (b) on top of the LCD display. 6 Place the accessories box on the designated area (if necessary). TX-32P TX-42P... -
Page 49: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications Display TX-32P TX-42P Resolution (Pixel) 1,920(H)x1,080(V) Typical Contrast Ratio (Typ.) 3000:1 4000:1 Aspect Ratio 16:9 Brightness (cd/m Vertical Viewing Angle (degrees) Horizontal Viewing Angle (degrees) Typical Color gamut (%) Color depth (colors) 8 bit (16.7M Colors) Active Area (mm) 698.4(H) x 392.85(V) - Page 50 SPECIFICATIONS Environment TX-32P TX-42P Operation Temp (°C) 0°C - 40°C Power consumption (Watt) -20°C - 60°C Storage Humidity 20% - 80% RH Operating Humidity 20% - 80% RH Display Orientation Landscape / Portrait Usage (hrs/days) 24 / 7 Note: ♦...
-
Page 51: Display Dimensions
TX-42P Dimensions 71.7 982.3(outline dimension) 34.7 289.7 289.7 932.2(opening dimension) 23.6 (M6XL10) x4 258.7 258.7 23.6 258.7 258.7 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2017 AG Neovo. All rights reserved. TX-32P/TX-42P_UM_V011...
