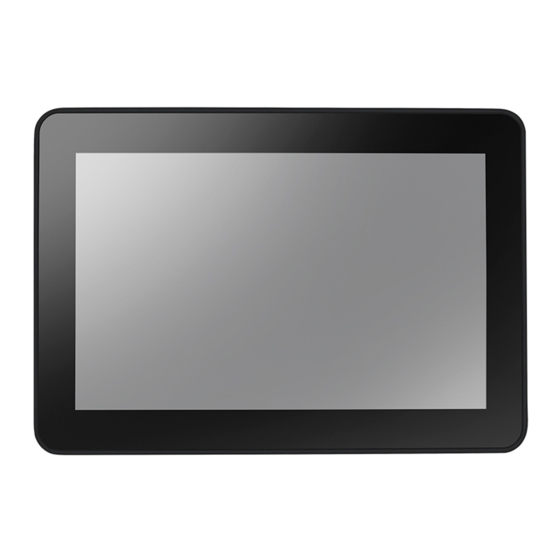

- Page 1 TX-10 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Monitor ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................8 1.2 Removal and Fitting Cable Cover ...................... - Page 3 TABLE OF CONTENTS CHAPTER 7: SPECIFICATIONS 7.1 Monitor Specifications .......................... 34 7.2 Monitor Dimensions ..........................35...
-
Page 4: Safety Information
Safety Information SAFETY INFORMATION WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 5: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 7: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 8: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. Quick Start Guide Warranty Card LCD Monitor Quick Start Guide TX-10 LCD Monitor TX-10_Quick Guide_V010 displays.agneovo.com Wired OSD Controller Power Adapter Power Cord... -
Page 9: Removal And Fitting Cable Cover
PRODUCT DESCRIPTION 1.2 Removal and Fitting Cable Cover 1. Remove the screw securing the cable cover. Then remove the cable cover from the monitor. Cable Cover 2. Connect the cables and route them through the slots on the cable cover. 3. -
Page 10: Installing An Open Frame Monitor With L-Brackets
PRODUCT DESCRIPTION 4. Secure the cables to the cable cover using the cable ties. Cable Tie 1.3 Installing an Open Frame Monitor with L-Brackets To install an open frame monitor with L-brackets, you need the following items: Bracket 1 X 2pcs Bracket 2 X 2pcs Screw M4 X 8pcs 1. -
Page 11: Wall Mounting
Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Lcd Monitor Overview
PRODUCT DESCRIPTION 1.5 LCD Monitor Overview Rear Front Audio-Out DC IN HDMI RJ45 Audio OUT: Connect audio signals output (3.5 mm Stereo Audio Jack). Only applicable for DisplayPort or HDMI input signal. DC IN: Connect with the supplied power adaptor. DisplayPort IN: Connect DisplayPort signals input. -
Page 13: Wired Osd Controller
PRODUCT DESCRIPTION 1.6 Wired OSD Controller MENU SELECT MENU: • Press to display OSD menu. • When OSD menu is ON, press to hide OSD menu or return to the previous menu. UP (p): • Press to display the Brightness quick menu. Press the p/q key to adjust the brightness level. •... -
Page 14: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 15: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • DP Connect one end of a DP cable to the DP connector of the HDMI LCD monitor and the other end to the DP connector of the computer. -
Page 16: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Output Connect a headphone to the headphone jack of the LCD monitor. Audio-Out 2.4 Connecting the Wired OSD Controller Connect the wired OSD controller to the RJ45 connector of the LCD monitor. MENU RJ45 SELECT... -
Page 17: Connecting Usb For Touch Screen Control
MAKING CONNECTIONS 2.5 Connecting USB for Touch Screen Control Connect one end of a USB cable to the USB connector of the LCD monitor and the other end to the USB connector of the computer. 2.6 Ventilation Requirements for Enclosure Locating To allow heat to disperse, avoid installing the LCD monitor directly on the cabinet wall and make sure the operating/storage temperature/humidity requirements are met as described below: •... -
Page 18: Chapter 3: Using The Lcd Monitor
Chapter 3: Using the LCD Monitor CHAPTER 3: USING THE LCD MONITOR 3.1 Turning on the Power 1. Connect the power to the LCD monitor. Refer to page 14. 2. Connect the wired OSD controller to the LCD monitor. Refer to page 16. 3. -
Page 19: Adjusting Monitor Brightness
USING THE LCD MONITOR The following menu appears on the screen: Picture Colour System Contrast Brightness H-Position V-Position Phase Clock Auto Adjust <Se lec t>=Ente r, <▲,▼>=M ov e , <M e nu >=E x it 3.3 Adjusting Monitor Brightness Press the p key to open the Brightness quick menu. -
Page 20: Adjusting Monitor Contrast
USING THE LCD MONITOR 3.4 Adjusting Monitor Contrast Press the q key to open the Contrast quick menu. MENU DOWN Key SELECT Contrast Pr ess<▲,▼> to Adjust and <Menu> to Exit The following menu appears on the screen: Contrast Pre ss<▲, ▼> to A djus t a n d < M e n u> t o Ex i t Then press the p/q keys to adjust the LCD monitor contrast level. -
Page 21: Using Auto Adjustment Function
USING THE LCD MONITOR 3.5 Using Auto Adjustment Function Auto Adjustment function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. Press the SELECT key to perform auto adjustment if the source is VGA. MENU SELECT Key SELECT... -
Page 22: Chapter 4: On Screen Display Menu
Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN MONITOR MENU 4.1 Using the OSD Menu Menu Navigation Operation Display the main menu screen. MENU on the wired OSD controller Press Picture Colour System Contrast Brightness H-Position V-Position Phase Clock Auto Adjust <... - Page 23 ON SCREEN MONITOR MENU Menu Navigation Operation Adjust the settings or select the value. 1 Press p q to adjust the value or select the setting. For example: 2 Press SELECT to confirm the setting (if necessary). Picture Colour System Auto Adjust P re ss <...
-
Page 24: Osd Menu Tree
ON SCREEN MONITOR MENU 4.2 OSD Menu Tree Main Menu Submenu Reference Picture Contrast Refer to page 25. Brightness H-Position V-Position Phase Clock Auto Adjust Colour Colour Refer to page 27. Green Blue Sharpness OSD Timeout Refer to page 28. OSD Position OSD H-Position OSD V-Position... -
Page 25: Chapter 5: Adjusting The Lcd Monitor
Chapter 5: Adjusting the LCD Monitor CHAPTER 5: ADJUSTING THE LCD MONITOR 5.1 Picture Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select Picture and then press SELECT to enter the menu. 3. - Page 26 ADJUSTING THE LCD MONITOR Item Function Operation Range V-Position Moves the screen image up or down. 0 to 100 Press p q to adjust the (Vertical Position) value. Note: This menu item is only available if the source is VGA. Phase Adjusts the phase timing to synchronise 0 to 100...
-
Page 27: Colour Menu
ADJUSTING THE LCD MONITOR 5.2 Colour Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select Colour and then press SELECT to enter the menu. 3. Press p / q to select the submenu item and then press SELECT to enter its settings. Picture Colour System... -
Page 28: Osd Menu
ADJUSTING THE LCD MONITOR 5.3 OSD Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select OSD and then press SELECT to enter the menu. 3. Press p / q to select the submenu item and then press SELECT to enter its settings. Picture Colour System... -
Page 29: System Menu
ADJUSTING THE LCD MONITOR 5.4 System Menu 1. Press MENU on the wired OSD controller to call out the OSD window. 2. Press p / q to select System and then press SELECT to enter the menu. 3. Press p / q to select the submenu item and then press SELECT to enter its settings. Picture Colour System... -
Page 30: Chapter 6: Appendix
Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The LCD monitor cannot detect the √ Check if the input source is input source signal. turned ON. -
Page 31: Timing
CHAPTER 6: APPENDIX 6.2 Timing Resolution Timing Mode Refresh Rate Horizontal Vertical IBM VGA VESA VESA 1024 VESA 1280 6.3 Cleaning Front Panel Cleaning Instructions • The front of the monitor has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. -
Page 32: Troubleshooting
APPENDIX 6.4 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power adapter is properly connected to the LCD monitor. • Check if the power cord is plugged into the power outlet and to the power adapter. -
Page 33: Transporting The Lcd Monitor
APPENDIX 6.5 Transporting the LCD Monitor To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box. 1. Place the two foam cushions on each side of the LCD monitor for protection. 2. Place the LCD monitor down in the box. 3. - Page 34 Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Monitor Specifications TX-10 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 10.1” Max. Resolution 1280 x 800 Pixel Pitch 0.169 mm Brightness 500 cd/m Contrast Ratio 1300:1 Viewing Angle (H/V) 170°/170°...
- Page 35 78.35 16.4 218(opening dimension) 10.4 M4x6L Cable cover 20.35 20.35 220.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2021 AG Neovo. All rights reserved. TX1000_UM_V013 TX-10 Eprel registration number : 456257...
