Summary of Contents for AG Neovo TX-15
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Usage Notice Precautions ............................4 Chapter 1: Introduction 1.1 About TX-15/TX-17/TX-19 ........................5 1.2 Touch Screen for TX-15/TX-17/TX-19 ....................6 1.3 Package Overview ..........................7 Chapter 2: Installation 2.1 Product Overview ..........................8 2.1.1 Front View ..........................8 2.1.2... -
Page 4: Usage Notice
- Extremely hot, cold or humid environment. - Areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field. - In direct sunlight. TX-15, TX-17 & TX-19 is to be used as commercial and light industrial equipment only. -
Page 5: Chapter 1: Introduction

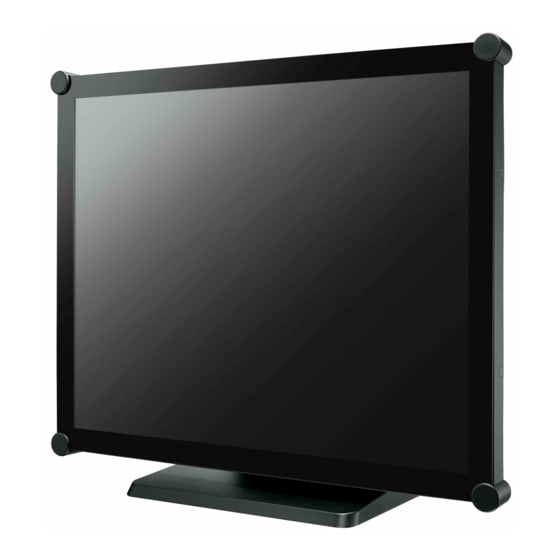

CHAPTER 1: INTRODUCTION 1.1 About TX-15 The TX-15 is a 15” flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). Features include: • Direct Analog signal input • Direct Digital signal input • Active matrix TFT LCD technology •... -
Page 6: Touch Screen For Tx-15/Tx-17/Tx-19
• Multilingual OSD user controls • 100 mm VESA mount • Bracket mount • Projected Capactive touch screen with USB controller 1.2 Touch Screen for TX-15/TX-17/TX-19 • Projected Capacitive touch screen for finger input only • Surface: Glare treatment • Interface: USB controller •... -
Page 7: Package Overview
PRODUCT DESCRIPTION 1.3 Package Overview LCD Display VGA Signal Cable Power Cord Cable Cover USB Cable ( A to B) DC Power Supply Cable Cover Screw Warranty card... -
Page 8: Chapter 2: Installation
CHAPTER 2: INSTALLATION 2.1 Product Overview 2.1.1 Front View 2.1.2 Bottom View (Without Stand) RJ-TYPE DC IN... -
Page 9: Kensington Security Slot
INSTALLATION 2.2 Kensington Security Slot The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included. -
Page 10: Vesa Mount For Your Monitor
INSTALLATION 2.3 VESA Mount for Your Monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defines a physical mounting interface for flat panel monitors, and corresponding with the standards of flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 11: Start Your Installation
INSTALLATION 2.4 Start Your Installation Please follow these instructions so that you can hook up the cables to associated connectors. 1. Lay the LCD flat on an even surface. 2. Move the stand into position as seen in the step 2 diagram. 3. -
Page 12: Connecting The Display
INSTALLATION 2.5 Connecting the Display To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the DC adapter to the power connector on the monitor and the other end into an electrical outlet. -
Page 13: Remove The Deskstand
INSTALLATION 2.6 Remove the Deskstand Remove 4 screws and then remove stand. -
Page 14: Chapter 3: User Controls
CHAPTER 3: USER CONTROLS 3.1 Back Panel Controls Icon Key Name Menu MENU Down Enter SELECT Power Menu off status Menu on status MENU Menu appear Menu disappear / return to main item Brightness Main item select up / Adjust up Contrast Main item select down / Adjust down Select... -
Page 15: How To Use The Osd Menus
USER CONTROLS 3.2 How to Use the OSD Menus Icon Key Name Menu MENU Down Enter SELECT Power 1. Press the “Menu” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the five functions in the main menu. 2. -
Page 16: On-Screen Display Menus
USER CONTROLS 3.3 On-Screen Display Menus Main OSD Menu: ITEM CONTENT Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. -
Page 17: Chapter 4: Appendix
► Check to see if the resolution of your computer is higher than that of the LCD display. ► Reconfigure the resolution of your computer to make it less than or equal to 1024 x 768 (TX-15), 1280 x 1024 (TX-17, TX-19). Problem: Image has vertical flickering line bars. -
Page 18: Warning Signal
APPENDIX 4.2 Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or our service center for more information. -
Page 19: Product Dimensions
APPENDIX 4.3 Product Dimensions TX-15 348.4 mm ► Front View ► Side View 46.6 mm ► Top View 214.8 mm... - Page 20 APPENDIX TX-17 380.0 mm ► Front View ► Side View 49.5 mm 214.8 mm ► Top View...
- Page 21 APPENDIX TX-19 427.0 mm ► Front View ► Side View 48.8 mm ► Top View 214.8 mm...
-
Page 22: Compatibility Modes
APPENDIX 4.4 Compatibility Modes TX-15 Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA SVGA 800X600 35.16 VESA SVGA 800X600 37.88 VESA SVGA 800X600 48.08... - Page 23 APPENDIX TX-17 Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA SVGA 800X600 35.16 VESA SVGA 800X600 37.88 VESA SVGA 800X600 48.08 VESA SVGA 800X600 46.88 Apple Mac...
- Page 24 APPENDIX TX-19 Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA SVGA 800X600 35.16 VESA SVGA 800X600 37.88 VESA SVGA 800X600 48.08 VESA SVGA 800X600 46.88 Apple Mac...
-
Page 25: Touch Screen Driver Installation
APPENDIX 4.5 Touch Screen Driver Installation The TX-15, TX-17 & TX-19 is available with USB connections. The touch driver is located on the en- ® closed CD-ROM for these operating systems: Windows 7/8, VISTA, XP, 2000, CE, XP Embedded, ®... - Page 26 APPENDIX...
-
Page 27: Driver Install Instructions
APPENDIX 4.5.2 Driver Install Instructions If you are using a PC running Windows ® 7/8, VISTA, XP, 2000, follow the instructions below: 1. Power on the PC. 2. Be sure the USB cable is connected from the PC to the LCD display. 3. -
Page 28: Chapter 5: Specifications
CHAPTER 5: SPECIFICATIONS 5.1 Display Specifications TX-15 TX-17 TX-19 Panel Size 15.0” 17.0” 19.0” Panel Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024 H.Freq 31.47kHz – 60kHz 31.47kHz – 80kHz 31.47kHz – 80kHz Frequency (H/V) V.Freq 56Hz – 75Hz 56Hz –...
