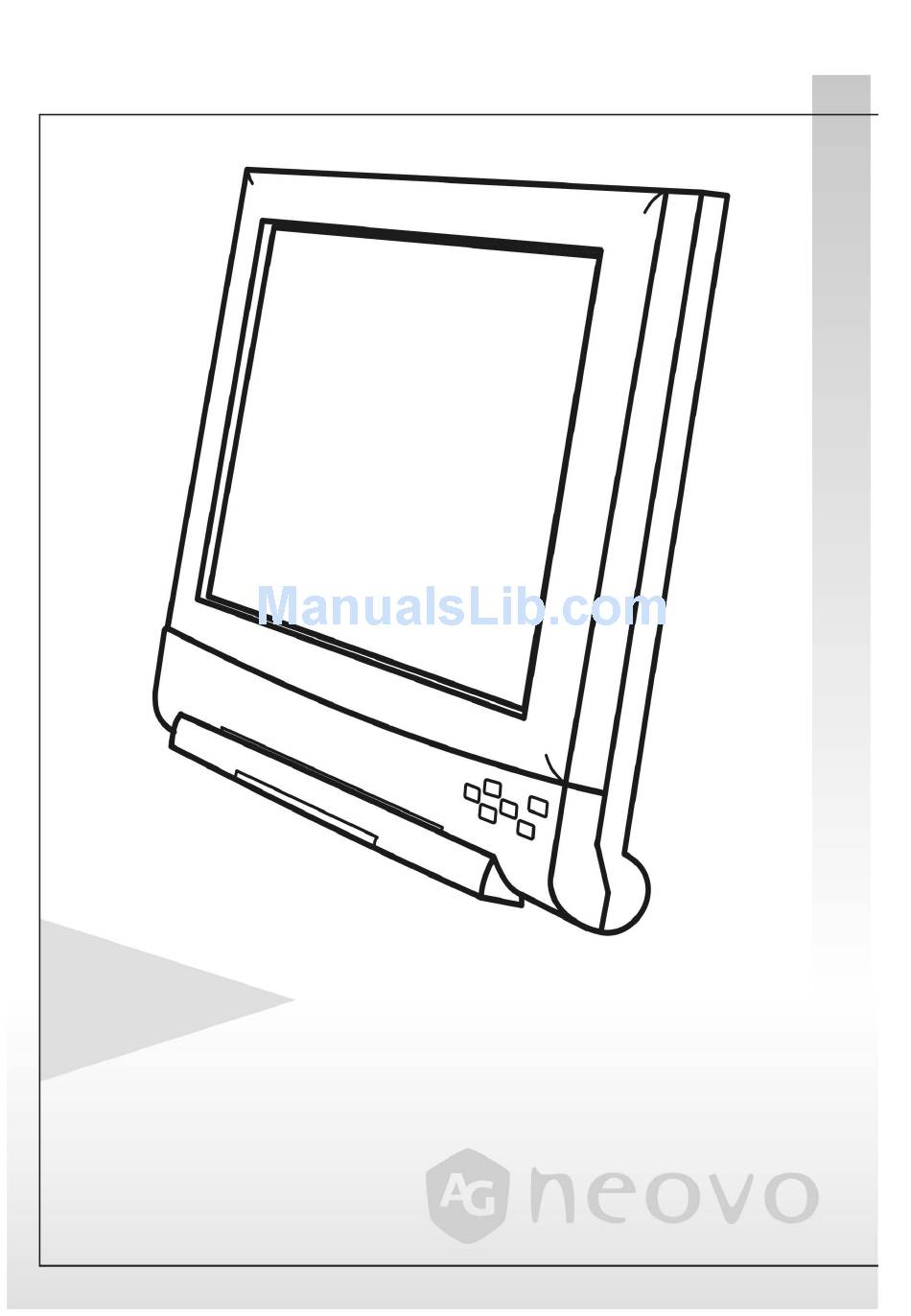

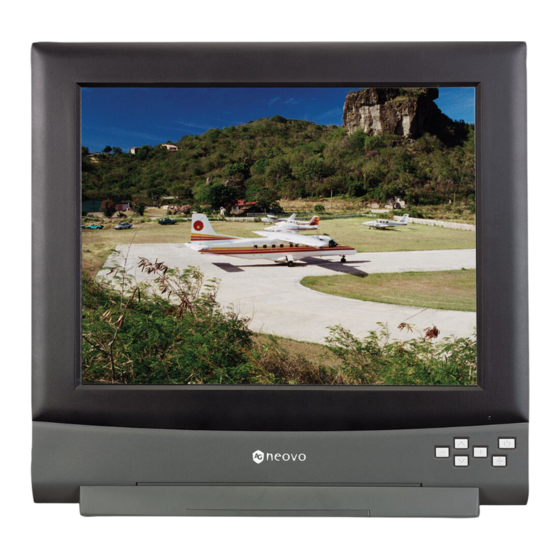

- Page 1 Touch Series TFT LCD Display 15”& 17” User’s manual...
-
Page 2: Table Of Contents
Table of Contents Precautions... 2 Notice... 2 Installation... 2 Warning on power connection... 2 Maintenance ... 3 Transportation ... 3 Wall mounting ... 6 Getting Started... 8 Package Contents... 8 Setup... 10 Connections ... 11 Software Configuration... 15 Identifying Parts and Controls ... 16 Customizing Your Monitor ... -
Page 3: Precautions
Notice Srmation was correct at time of print. All information is subject to • change without notice. Updated content can be downloaded from our web site at http://www.agneova.com. To register online, please go to http://www.agneovo.com. • To protect your rights as a consumer, do not remove any stickers •... -
Page 4: Maintenance
Maintenance Clean the housing, glass panel and controls with a soft cloth lightly • moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene. Do not rub, touch, or tap the surface of the screen with sharp or •... -
Page 5: Base Lock
17” Note: A tilt dial is fitted to the base stand as shown in the figure. Use it to control the angle of tilt of the monitor. This dial has “Base Lock”, “Neutral” and “Tilt Lock” three positions, which are described as follows: Base Lock―... - Page 6 again) and then press down the monitor until it is fully retracted. Remember to turn the dial counterclockwise to “Base Lock” position to ensure that the base stand is really secure.
-
Page 7: Wall Mounting
The base stand has four M4 screw holes, and conforms to the VESA FPMPMI standard, measuring 75 x 75 mm. AG Neovo wall-mountable products (wall mount kit, WMK series) are recommended. 4.6 kg (10.1 lb), and is installed by the... - Page 8 There are two holes on the rear housing and two holes for M4 screws on the base stand which comply with the installation interface standard for a VESA Flat Panel Display (FPD) of 100*100mm。 AG Neovo wall-mountable products (wall mount kit, WMK series) are recommended.
-
Page 9: Getting Started
Package Contents Before using this monitor, check if the following items are included in your carton box: Monitor • Power adapter • Use only the following power adapter: Lien LE-9702B+5012。 Power cable • The included power cable conforms to the IEC 60227 standard or relevant national standard, with conductors providing a cross-sectional area of 3 x 0.75min, type H05VV-F or H03VV-F. - Page 10 Touch screen supporting bracket (1x) and screws (2x) • 15” 17” AG Neovo Disk • Touch-screen Disk (Touch screen driver) • Quick Guide • Stud bolts (for 17”monitor wall mounting only) • (User’s Manual and driver software)
-
Page 11: Setup
Setup Fold the stand of monitor and take off the plastic dust-proof sheet Fold out the stand, so you can place the monitor upright on the table. Take off the plastic dust-proof sheet from the screen surface of the monitor. Attaching the Touch Monitor Support To prevent undesired movement of the display when its touch screen feature is being used, the support strut should be installed prior to using... -
Page 12: Connections
Connections DC +12V Power Jack • Provides +12V DC power to the monitor. VGA-In • D-sub 15-pin connector for the VGA signal. Touch Screen Connector • RS232 connector for the touch screen signal. 15” Rear View... - Page 13 DC +12V Power Jack • Provides +12V DC power to the monitor. VGA-In • D-sub 15-pin connector for the VGA signal. DVI- Input • Connect to a DVI signal source by using the DVI-D 24 pin video cable Touch Screen Connectors（select one of the following connectors） •...
- Page 14 Connect the monitor to the computer or video source; with the computer or other video source switched off, connect the video signal cable to the monitor. Connecting to an IBM or compatible PC Connecting to a Macintosh or compatible computer Connect the touch screen monitor to a computer;...
- Page 15 Turn on the computer or video source. Then press the (Power) switch on the monitor to turn it on. A picture should now appear on your monitor. If not, please check the “Warning Signals and Troubleshooting” section of this User’s Manual for further details.
-
Page 16: Software Configuration
Installing the Microsoft Windows data file You can find the Microsoft Windows data file (also called the driver program) on the included AG Neovo CD. To ensure smooth operation after initial installation, you can refer to the installation guide, which can also be found on the CD. -
Page 17: Identifying Parts And Controls
Identifying Parts and Controls Front view Power switch Turns the monitor on or off. LED indicator The indicator lights up green when the monitor is turned on, and lights up orange when the monitor is in power saving mode. AUTO button Adjusts the picture position and performance automatically. -
Page 18: Customizing Your Monitor
This section covers the LCD monitor’s On-Screen Display (OSD), and front panel control buttons. Important! You can press the “Automatic” button automatic configuration. However, if difficulties in optimization occur because of the particular video card used in your computer, please use the OSD menu to adjust the settings for the monitor’s various parameters and achieve the desired display results. -
Page 19: 15" Osd Menus
15” OSD Menus Brightness Adjustment Contrast Adjustment Horizontal Position Adjustment Vertical Position Adjustment... - Page 20 Sharpness Adjustment OSD Transparency Adjustment Phase Adjustment Frequency Adjustment Note 15”: If the computer resolution is 1024 X 768, it is not possible to adjust sharpness.
- Page 21 Color Temperature Selection Horizontal OSD Position Adjustment Vertical OSD Position Adjustment Graphic/Text Selection Note The RGB color temperature can be adjusted in the “User” sub menu. Note If the resolution is 640×350 or 640× 400, please select “Text”.
- Page 22 Recall Selection Language Selection EUR&USA Auto adjustment Selection Exit Selection Note Please use the “Recall” function to return to the previous settings in case the adjustments made were not satisfactory.
-
Page 23: 17" Osd Menus
OSD Menus 17” Brightness Adjustment Contrast Adjustment Horizontal Position Alignment Vertical Position Alignment Note: If the color temperature is set to sRGB, the brightness function is fixed and cannot be adjusted. Note: If the color temperature is set to sRGB, the contrast function is fixed and cannot be adjusted. - Page 24 Sharpness Adjustment OSD Transparency Adjustment Phase Adjustment Frequency Adjustment Note: 17”: If the computer resolution is 1280 X 1024, it is not possible to adjust the sharpness.
- Page 25 Color Temperature Selection OSD Horizontal Position Alignment OSD Vertical Position Alignment Graphic / Text Mode Selection Note: When you are in the menu, you can make individual RGB color adjustments. When sRGB brightness and contrast functions are fixed and cannot be adjusted. Note: When the resolution is 640*350or 640*400, it is recommended the user...
- Page 26 Recall Selection Language Selection Signal Switching Exit Selection Note: Please use the “Recall” function to return to the previous settings in case the adjustments made were not satisfactory.
-
Page 27: Warning Messages And Troubleshooting
Warning Messages and Troubleshooting Warning Messages Screen Message Input Signal Out of Range No Signal OSD Lock Out Auto Adjusting Action to be taken The input signal is not acceptable by the monitor. • Please check if the video resolution and frequency range is within the range specified for the monitor. -
Page 28: Troubleshooting
Each defective transistor will cause a red, green, or blue dot. • Under AG Neovo’s warranty AG Neovo guarantees no more than 3 missing dots in every single monitor. This is inline with the current industry standard... -
Page 29: Technical Features And Specifications
Technical Features and Specifications Specifications 15” Electrical characteristics Screen size Pixel format Horizontal frequency Vertical frequency Maximum pixel frequency Connections Power Standby Physical characteristics Weight Tilting angle Touch Screen TS-15S Panel connection Panel pixel Action force Position accuracy Note: Specifications are based on those of the delivered product. Any change of the above specifications will be made without prior notice. -
Page 30: Plug & Play
17” Electrical Characteristics Screen size Pixel format Horizontal frequency Vertical frequency Maximum pixel frequency Connection Power Ready Physical Properties Weight Tilting angle Touch Screen TS-17S Panel connection Panel pixel Action force Position accuracy TS-17R Panel connection Panel pixel Action force Position accuracy Note: The specifications are based on those of the delivered product. -
Page 31: Regulations
FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 32: Weee
WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.
