WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER
USER S MANUAL
´
MODEL: DRY 300 & 500 PLASTIK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRY 500 PLASTIK and is the answer not in the manual?

Questions and answers

Related Manuals for MICROWELL DRY 500 PLASTIK

Summary of Contents for MICROWELL DRY 500 PLASTIK

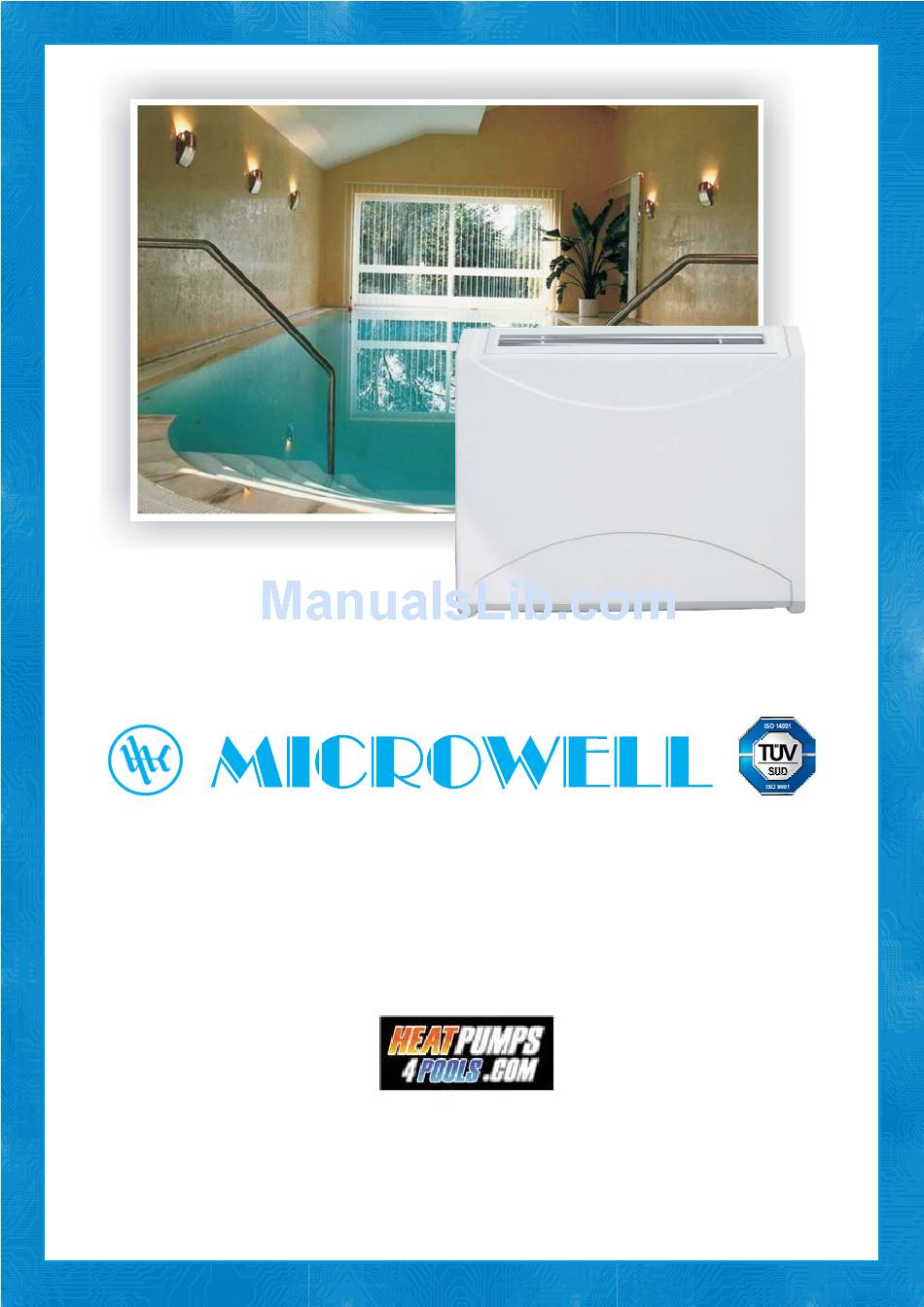

  • Page 1 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER USER S MANUAL ´ MODEL: DRY 300 & 500 PLASTIK...

  • Page 2: Safety Measures

    The Microwell DRY 300 PLASTIK is designed for halls with a swimming pool surface area of up to 30 m . The Microwell DRY 500 PLASTI is designed for halls with a swimming pool surface area of up to 60 m .
  • Page 3 INSTRUCTIONS FOR USE 3.1. Humidity control by means of the built-in humidistat The built-in humidistat is located at the bottom of the unit, on the left. The built-in hygrostat reads the humidity of the incoming air and, depending on the set value, does or does not switch the compressor on. In the central position of the regulator, the unit secures the average relative humidity of 60%.
  • Page 4 Automatic function during a power failure: If the power supply of the dehumidifier is interrupted during the operation of the remote humidistat, then, once the power supply is renewed, the dehumidifier will automatically return to the latest setting. This recovery will occur within 15 minutes after the power supply return.

  • Page 5: Maintenance Instructions

    3.3. Control of the fan Under the inside cover of the unit, there is a two-position fan mode switch. In the first position, the fan runs even if the compressor of the appliance has stopped continuous operation of the fan. In the second position, the fan only runs simultaneously with the compressor periodical duty of the fan.
  • Page 6 PLASTIK). Once the bracket is mounted to the wall, it is possible to mount the unit without disassembling its cover. Model DRY 300 PLASTIK TOP EDGE OF THE UNIT SPIRIT LEVEL BRACKET MOUNTING HOLES Model DRY 500 PLASTIK TOP EDGE OF THE UNIT SPIRIT LEVEL BRACKET MOUNTING HOLES 6.3.
  • Page 7 (FROM THE REAR) CYSY WIRE 3C x 1.5 (3C x 2.5) mm CONNECTIONS ARE VALID FOR MODELS DRY 300 PLASTIK AS WELL DRY 500 PLASTIK - FRONT VIEW Connection of the unit onto the mains Connection of the unit onto the mains must conform to relevant safety standards. Connection requirements: Power supply: 220- 240V / 50Hz.
  • Page 8 LOCATION OF THE EQUIPMENT The location must be in compliance with the HD 384.7.702 S1, IEC 60364-7-702 standard. It is recommended to situate the unit outside zones 0, 1 and 2. In case the unit is situated into zones 2 or 1, it must be adhered to the HD, IEC standard. ZONE 1, IPX4 Swimming pools which are not cleaned by jet water...
  • Page 9 6.7. LPHW heater element - to order The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a closing screw joint.

  • Page 10: Technical Data

    (PIPING 1075x65mm - DRY 500 PLASTIK) MOUNT THE GRID. DRY 300 PLASTIK FLANGED CONNECTION DRY 500 PLASTIK ELBOW 135° 615x65mm - DRY 300 PLASTIK (ELBOW 135° 1075x65mm - DRY 500 PLASTIK) R100 25 mm WIDE FLANGE DEHUMIDIFIER 300 PLASTIK R100...

  • Page 11: Side View

    PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm POWER SUPPLY (FROM THE REAR) CYSY WIRE 3C x 1.5 mm VIEW FROM BELOW DIMENSIONS DRY 500 PLASTIK SIDE VIEW FRONT VIEW ATTACHMENT OF THE LPHW HEATER ELEMENT TO THE DISTRIBUTION OF THE HEATING WATER - (MODELS WITH THE LPHW HEATER ELEMENT ONLY) THREAD G ½...
  • Page 12 COMPRESSOR violet blue blue COMPRESSOR blue blue WIRING DIAGRAM OF MODEL MICROWELL DRY 500 PLASTIK without inbuilt wireless humidistat DRY EASY 200 inbuilt wireless humidistat DRY EASY 200 MECHANICAL FAN MODE SWITCH MECHANICAL HUMIDISTAT FAN MODE SWITCH HUMIDISTAT...
  • Page 13 OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 300 PLASTIK) (l/24h) (°C) Air temperature OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 500 PLASTIK) (l/24h) (°C) Air temperature WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...

  • Page 14: Warranty Conditions

    When applying applicable warranty, the registration card that ensures applicable warranties must be returned. In case you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. - indicated your name, address and serial number of your dehumidifier.
  • Page 16 MICROWELL, Ltd. Distributed by: SNP 2018/42 927 01 Šaľa, Slovakia Phone: +421 31 7020 540-1 Fax: +421 31 7020 542 E-mail: microwell@microwell.sk www.microwell.eu VERSION: 2012/08/15...
