SWIMMING POOL DEHUMIDIFIER
USER S MANUAL
´
MODEL: DRY 800 & 1200 METAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRY 800 METAL and is the answer not in the manual?

Questions and answers

Related Manuals for MICROWELL DRY 800 METAL

Summary of Contents for MICROWELL DRY 800 METAL

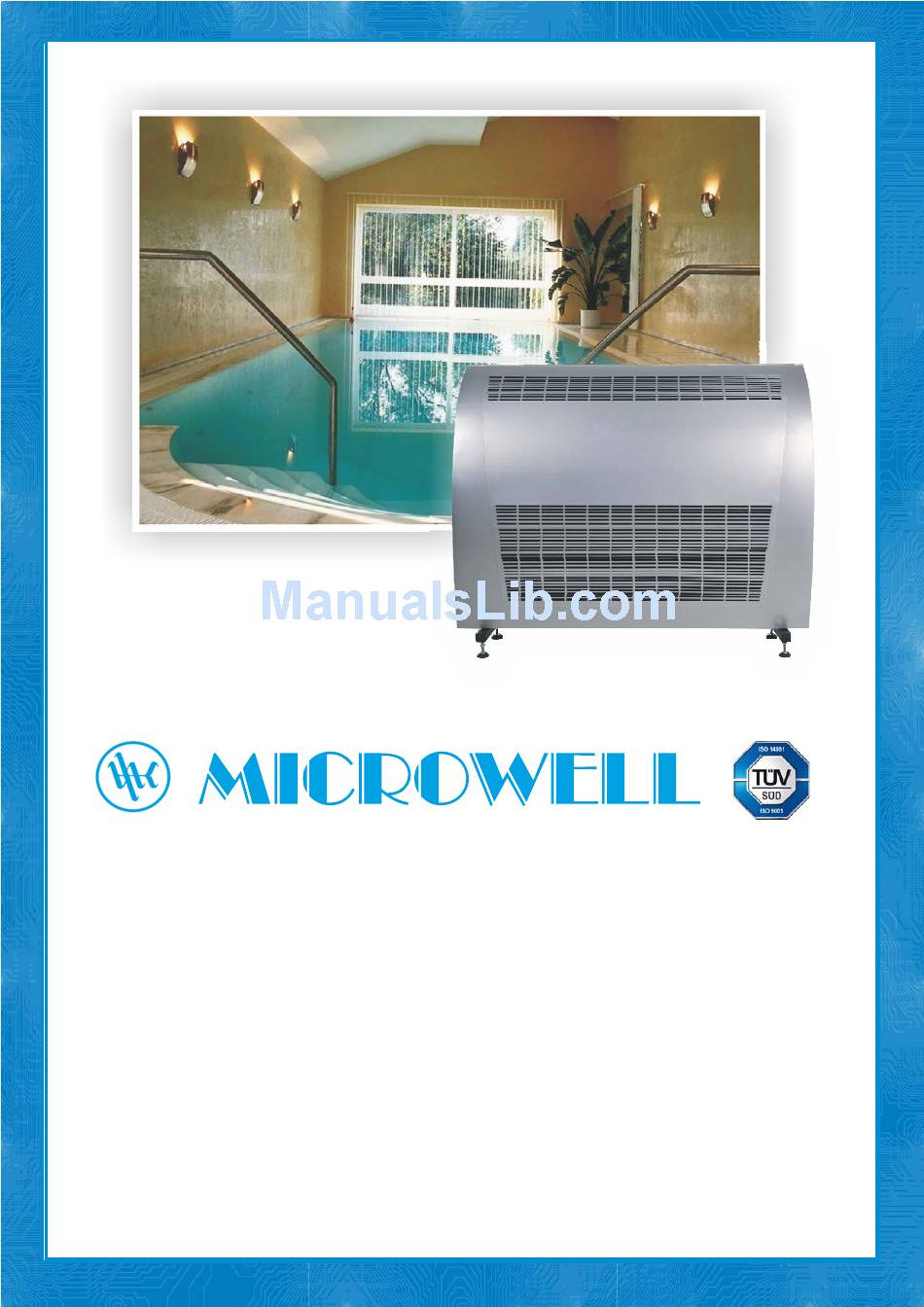

  • Page 1 SWIMMING POOL DEHUMIDIFIER USER S MANUAL ´ MODEL: DRY 800 & 1200 METAL...

  • Page 2: Safety Measures

    The units are designed especially for use in indoor swimming pools, spas and saunas. They can also be very useful in laundries, drying rooms and elsewhere. Microwell DRY 800 METAL is designed for use in swimming pool halls with 60 to 90m ² swimming pools Microwell DRY 1200 METAL is designed for use in swimming pool halls with 90 to 120m ²...
  • Page 3 INSTRUCTIONS FOR USE 3.1. Humidity regulation with an inbuilt digital humidistat located in the cover of the equipment The inbuilt humidistat is located in the cover of the device. It reads the humidiy of the incoming air, and depending on the set value, switches on the compressor.
  • Page 4 Program setting Current humidity or current temperature display. Keep the “set” button pressed for longer than 5 secs. Setting of the additional output Programming point “1” which is not connected. Setting of the main output´values Don´t perform any settings here and return to the point Function s etting...

  • Page 5: Maintenance Instructions

    3.3. Compressor regulation The compressor´s operation starting is for securing its protection, delayed by min. 3 minutes. Depending on the humidity of environment, it may last even longer. The user must not manipulate with the setting element of a time relay. MAINTENANCE INSTRUCTIONS It is necessary to make sure that the intake and exhaust outlets are not covered.
  • Page 6 Connecting the device to the mains The unit´s connection into the mains and its protection must meet the requirements of relevant norms. The connection requirements are the following: 220-240 V/50Hz, 16A protection secured by a current protector with a nominal differential shut-off current not exceeding 30mA.
  • Page 7 Technical data TECHNICAL DATA UNITS DRY 800 METAL DRY 1200 METAL For swimming pools with max. water surface 60 - 90 90 - 120 EXTRACTION RATE AT: 30°C and 60 % RH l/24 h Operating range - temperature °C 22-35...
  • Page 8 WIRING DIAGRAM OF MODEL MICROWELL DRY 800 METAL DRY 800 Standard DRY 800 DRY 800 LPHW / EASY 200 / Solenoid HYG 6001 METAL DRY 800.1 DRY 800.1 DRY 800.2 DRY 800.1 Note: Producer reserves right to make changes on wiring.
  • Page 9 DRY 800.2 Note: Producer reserves right to make changes on wiring. Note: Producer reserves right to make changes on wiring. SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 10 WIRING DIAGRAM OF MODEL MICROWELL DRY 1200 METAL DRY 1200 DRY 1200 DRY 1200 LPHW / Standard EASY 200 / Solenoid HYG 6001 METAL DRY 1200.1 DRY 1200.1 DRY 1200.2 DRY 1200.1 Note: Producer reserves right to make changes on wiring.
  • Page 11 DRY 1200.2 Note: Producer reserves right to make changes on wiring. Note: Producer reserves right to make changes on wiring. SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...

  • Page 12: Warranty Conditions

    When applying applicable warranty, the registration card that ensures applicable warranties must be returned. In case you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. - indicated your name, address and serial number of your dehumidifier.
  • Page 14 MICROWELL, Ltd. Distributed by: SNP 2018/42 927 01 Šaľa, Slovakia Phone: +421 31 7020 540-1 Fax: +421 31 7020 542 E-mail: microwell@microwell.sk www.microwell.eu VERSION: 2013/07/17...
