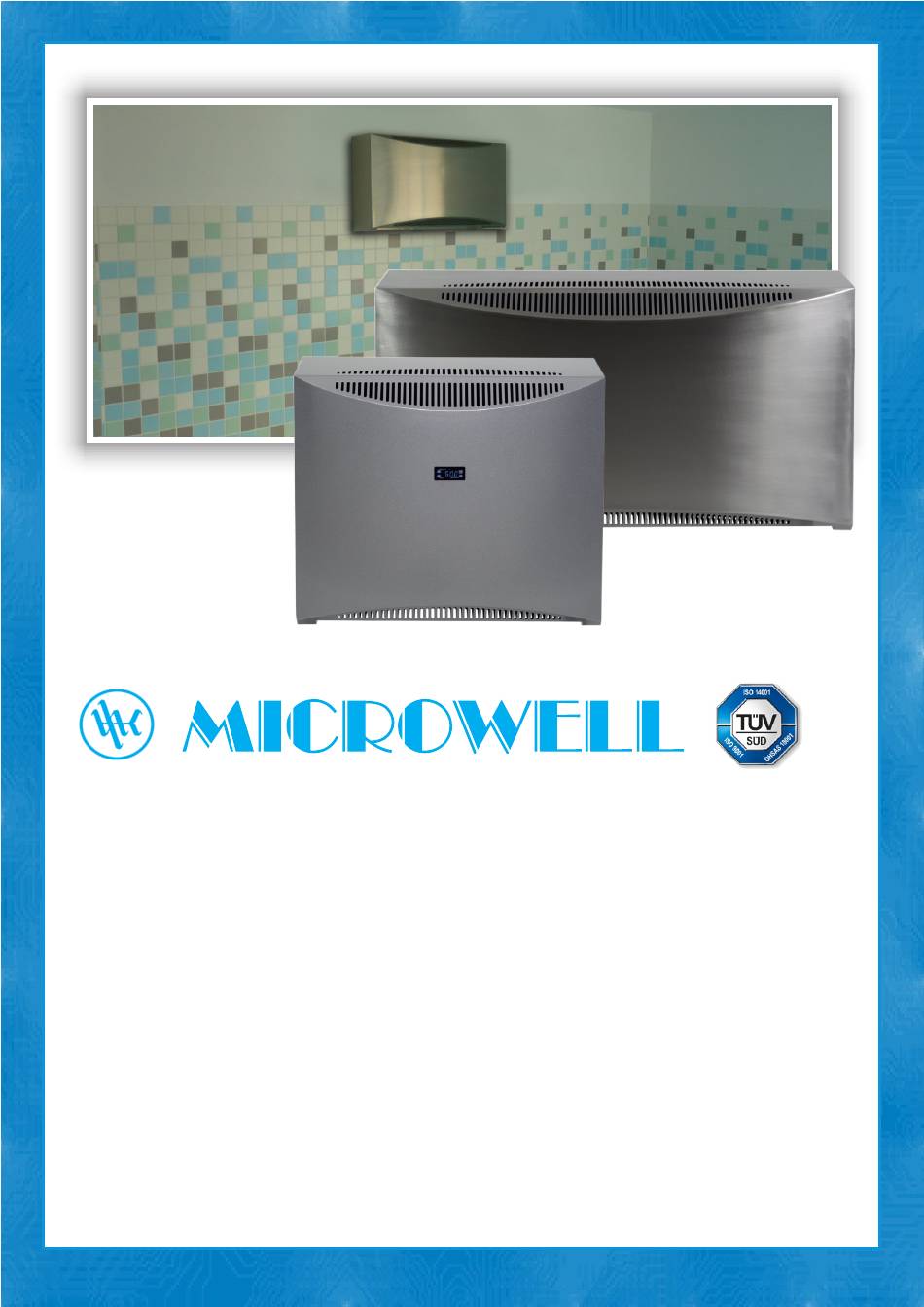

- Page 1 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER USER´S & INSTALLATION MANUAL MODEL: DRY 300 METAL/SILVER DRY 400 METAL/SILVER DRY 500 METAL/SILVER...
-
Page 2: Safety Measures
30 m². Microwell DRY 400 METAL/SILVER is designed for rooms with a swimming pool, which surface is up to 45 m². Microwell DRY 500 METAL/SILVER is designed for rooms with a swimming pool, which surface is up to 60 m². - Page 3 INSTRUCTIONS FOR USE 3.1. Humidity regulation with an inbuilt digital humidistat located in the cover of the equipment The inbuilt humidistat is located in the cover of the device. It reads the humidiy of the incoming air, and depending on the set value, switches on the compressor.
- Page 4 By keeping the “set” button pressed for longer than 5 secs, the setting gets finished and you return to a mode of current humidity display. In case of inactiveness for longer than 30 secs, this is done automatically. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL...
-
Page 5: Maintenance Instructions
3.2. Humidity regulation with a back-up mechanical humidistat located in the electronic box In the electronic box there is a back-up mechanical humidistat, which is set on the value of 70 % RH. This humidistat has a back-up function in case of digital humidistat failure. User should not perform any regulation of this humidistat. control 3.3. - Page 6 There is an installation bracket included in the equipment accessories, which must be fixed on the wall. The axis of the fixation slots is 210 mm lower than the top edge of the device. The distance between the fixation slots is 420 mm (DRY 300 METAL/SILVER and DRY 400 METAL/SILVER) and 360 mm (DRY 500 METAL/SILVER).
- Page 7 Connecting the device onto the mains and protection securing must satisfy the requirements of relevant norms. Connection requirements are the following: 220-240 V/50Hz, protection 10A (DRY 300 METAL/SILVER and DRY 400 METAL/SILVER) and 16A (DRY 500 METAL/SILVER) with a mains-fuse that has a current-carrying differential disconnecting capacity, not exceeding 30mA.
- Page 8 DEVICE LOCATION Device location must be in accordance with HD 384.7.702 S1 and IEC 60364-7-702 standard. It is recommended to locate the device outside zones 0,1 and 2. In case the device is located into zones 2 or 1, HD and IEC standards´requirements must be satisfied. ZONE 1, IPX4 Swimming pools which are not cleaned by splashing water...
- Page 9 6.7. LPHW heater element - to order The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a closing screw joint.
- Page 10 Technical data TECHNICAL DATA UNITS DRY 300 METAL/SILVER DRY 400 METAL/SILVER DRY 500 METAL/SILVER For swimming pools with max. surface DEHUMIDIFICATION PERFORMANCE: at 30 °C and 60 % RH l/24 h at 30 °C and 70 % RH l/24 h at 30 °C and 80 % RH...
-
Page 11: Front View
DRY 300 METAL/ SILVER DRY 400 METAL/SILVER swimming pool dehumidifier parameters SIDE VIEW FRONT VIEW SLIPPING OUT FROM A CONSOLE PREVENTING SLIPPING OUT FROM A CONSOLE PREVENTING POSITION SECURING (FROM BEHIND) POSITION SECURING (FROM BEHIND) CONSOLE CONDENSATE DRAIN (FROM THE BEHIND) PIPE WITH AN INTERNAL DIAMETER OF MINIMUM 18 mm POWER SUPPLY (FROM THE BEHIND) CYSY WIRE 3C x 1.5 mm... - Page 12 WIRING DIAGRAM OF MODEL MICROWELL DRY 300 METAL/SILVER and DRY 400 METAL/SILVER DRY 300/400 DRY 300/400 DRY 300/400 Standard EASY 200 / LPHW / Solenoid HYG 6001 METAL DRY 300.1 DRY 300.1 DRY 300.2 SILVER DRY 300.1 DRY 300.1 DRY 300.2 DRY 300.1...
- Page 13 DRY 300.2 Note: Producer reserves right to make changes on wiring. Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL...
- Page 14 WIRING DIAGRAM OF MODEL MICROWELL DRY 500 METAL/SILVER DRY 500 Standard DRY 500 DRY 500 LPHW / EASY 200 / Solenoid HYG 6001 METAL DRY 500.1 DRY 500.1 DRY 500.2 SILVER DRY 500.1 DRY 500.1 DRY 500.2 DRY 500.1 Note: Producer reserves right to make changes on wiring.
- Page 15 DRY 500.2 Note: Producer reserves right to make changes on wiring. Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL...
- Page 16 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL...
- Page 17 EXPANDED VIEW OF MODEL MICROWELL DRY 300 METAL/SILVER and DRY 400 METAL/SILVER Number Position Component of pieces Metal / Stainless stell cover Digital humidistat FOX-2SH Humidity sensor DS-SH104 Back metal sheet Ventilator metal sheet Metal sheet in front of the exchanger...
-
Page 18: Warranty Conditions
WARRANTY CONDITIONS The following exceptions stated by Microwell, Ltd. apply within the warranty. No claims will be accepted if: 1. The dehumidifier is used in an incorrect way, not as described in this manual. 2. The dehumidifier is installed in an incorrect way, not as described in this manual. - Page 21 MICROWELL, Ltd. Distributed by: SNP 2018/42 927 01 Šaľa, Slovakia Phone: +421 31 7020 540-1 Fax: +421 31 7020 542 E-mail: microwell@microwell.sk www.microwell.eu Version: 2015/11/13...
