MICROWELL DRY 300 User Manual

Wall-mounted swimming pool dehumidifier
Hide thumbs Also See for DRY 300:
Table of Contents

Advertisement

Quick Links

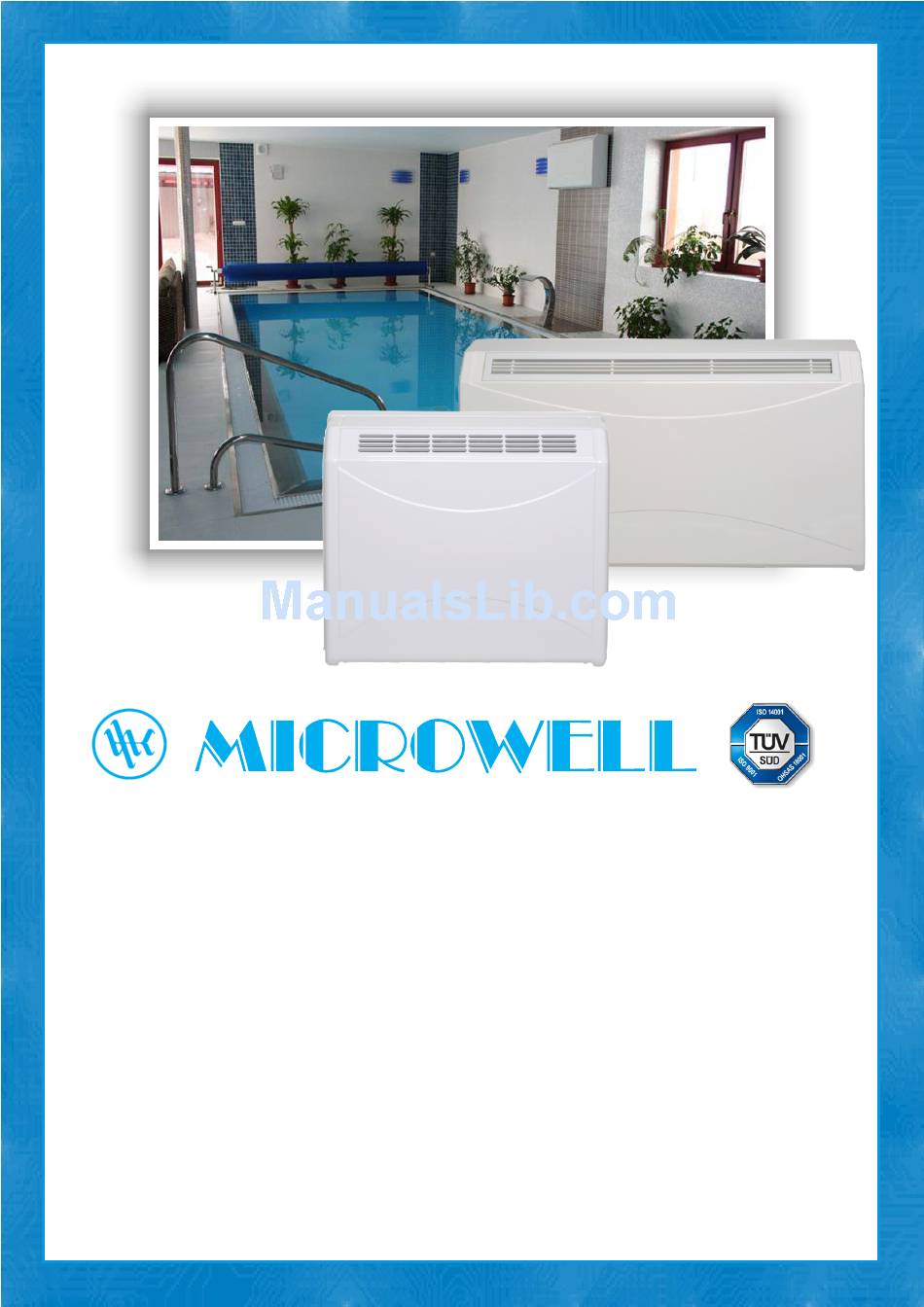

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER
USER´S MANUAL
MODEL: DRY 300/400/500 PLASTIK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRY 300 and is the answer not in the manual?

Questions and answers

Related Manuals for MICROWELL DRY 300

Summary of Contents for MICROWELL DRY 300

  • Page 1 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER USER´S MANUAL MODEL: DRY 300/400/500 PLASTIK...

  • Page 2: Safety Measures

    The Microwell DRY 300 PLASTIK is designed for halls with a swimming pool surface area of up to 30 m . Microwell DRY 400 PLASTIK is designed for rooms with a swimming pool, which surface is up to 45 m².
  • Page 3 INSTRUCTIONS FOR USE 3.1. Humidity control by means of the built-in humidistat The built-in humidistat is located at the bottom of the unit, on the left. The built-in hygrostat reads the humidity of the incoming air and, depending on the set value, does or does not switch the compressor on. In the central position of the regulator, the unit secures the average relative humidity of 60%.

  • Page 4: Maintenance Instructions

    3.3. Control of the fan Under the inside cover of the unit, there is a two-position fan mode switch. In the first position, the fan runs even if the compressor of the appliance has stopped: continuous operation of the fan. In the second position, the fan only runs simultaneously with the compressor: periodical duty of the fan.
  • Page 5 A part of the unit accessories is also an installation bracket, which must be fixed onto the wall. The axis of the fixation openings is 210 mm lower than the top edge of the unit. The fixation openings are 420 mm apart (DRY 300/400 PLASTIK) or 360 mm apart (DRY 500 PLASTIK).
  • Page 6 Connection of the unit onto the mains must conform to relevant safety standards. Connection requirements: Power supply: 220- 240V / 50Hz. Protection: 10A (DRY 300/400 PLASTIK) or 16A (DRY 500 PLASTIK) by a protective switch with nominal differential drop-out current not exceeding 30 mA. The unit's terminal board for connection onto the electric mains is situated on the left hand- side of the unit.
  • Page 7 LOCATION OF THE EQUIPMENT The location must be in compliance with the HD 384.7.702 S1, IEC 60364-7-702 standard. It is recommended to situate the unit outside zones 0, 1 and 2. In case the unit is situated into zones 2 or 1, it must be adhered to the HD, IEC standard. ZONE 1, IPX4 Swimming pools which are not cleaned by jet water...
  • Page 8 6.7. LPHW heater element - to order The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a closing screw joint.
  • Page 9 6.10. Compressor transport protection (DRY 500 PLASTIK only) Your compressor is protected for the transport with plastic zipper strap. Due to compressor size and weight this is necessary in order to have a fully functional unit delivered to you safely. This protection must be removed before starting the unit. Please view below pictures on how to proceed.

  • Page 10: Technical Data

    AFTER HARDENING OF THE PUR FOAM, REMOVE THE FORTIFICATION AND (PIPING 1075x65mm - DRY 500 PLASTIK) MOUNT THE GRID. DRY 300/400 PLASTIK FLANGED CONNECTION DRY 500 PLASTIK ELBOW 135° 615x65mm - DRY 300 PLASTIK (ELBOW 135° 1075x65mm - DRY 500 PLASTIK) R100 25 mm WIDE FLANGE DEHUMIDIFIER 300/400 PLASTIK...
  • Page 11 OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 300 PLASTIK) (l/24h) (°C) Air temperature OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 400 PLASTIK) Air temperature OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 500 PLASTIK) (l/24h) (°C) Air temperature WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...

  • Page 12: Front View

    DIMENSIONS DRY 300/400 PLASTIK FRONT VIEW SIDE VIEW ATTACHMENT OF THE LPHW HEATER ELEMENT TO THE DISTRIBUTION OF THE HEATING WATER - (MODELS WITH THE LPHW HEATER ELEMENT ONLY) THREAD G ½ '’ THE POSITION AGAINST GETTING LOOSE FROM THE POSITION AGAINST GETTING LOOSE FROM...
  • Page 13 WIRING DIAGRAM OF MODEL MICROWELL DRY 300/400 PLASTIK DRY 300/400 DRY 300/400 DRY 300/400 Standard EASY 200 / LPHW / Solenoid HYG 6001 Wiring diagram BASIC DRY 300 BASIC Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 14 DRY 300.1 Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 15 DRY 300.2 Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 16 WIRING DIAGRAM OF MODEL MICROWELL DRY 500 PLASTIK DRY 500 Standard DRY 500 DRY 500 LPHW / EASY 200 / Solenoid HYG 6001 Wiring diagram BASIC DRY 500 BASIC Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 17 DRY 500.1 Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 18 DRY 500.2 Note: Producer reserves right to make changes on wiring. WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 19 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
  • Page 20 EXPANDED VIEW OF MODEL MICROWELL DRY 300/400 PLASTIK Number of Position Component pieces Fiberglass cover Inlet grid SMH2 20 1075 x 75 Outlet grid SMH2 12.5 1075 x 75 Back metal sheet Ventilator metal sheet Metal sheet in front of the exchanger...

  • Page 21: Warranty Conditions

    When applying applicable warranty, the registration card that ensures applicable warranties must be returned. In case you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. - indicated your name, address and serial number of your dehumidifier. The registration card will be then sent to you for filling in.
  • Page 24 MICROWELL, spol. s r.o. Distributed by: SNP 2018/42 927 01 Šaľa, Slovakia Phone: +421 31 7020 540-1 Fax: +421 31 7020 542 E-mail: microwell@microwell.sk www.microwell.eu VERSION: 2015/11/13...

This manual is also suitable for:

Dry 400Dry 500 plastik
