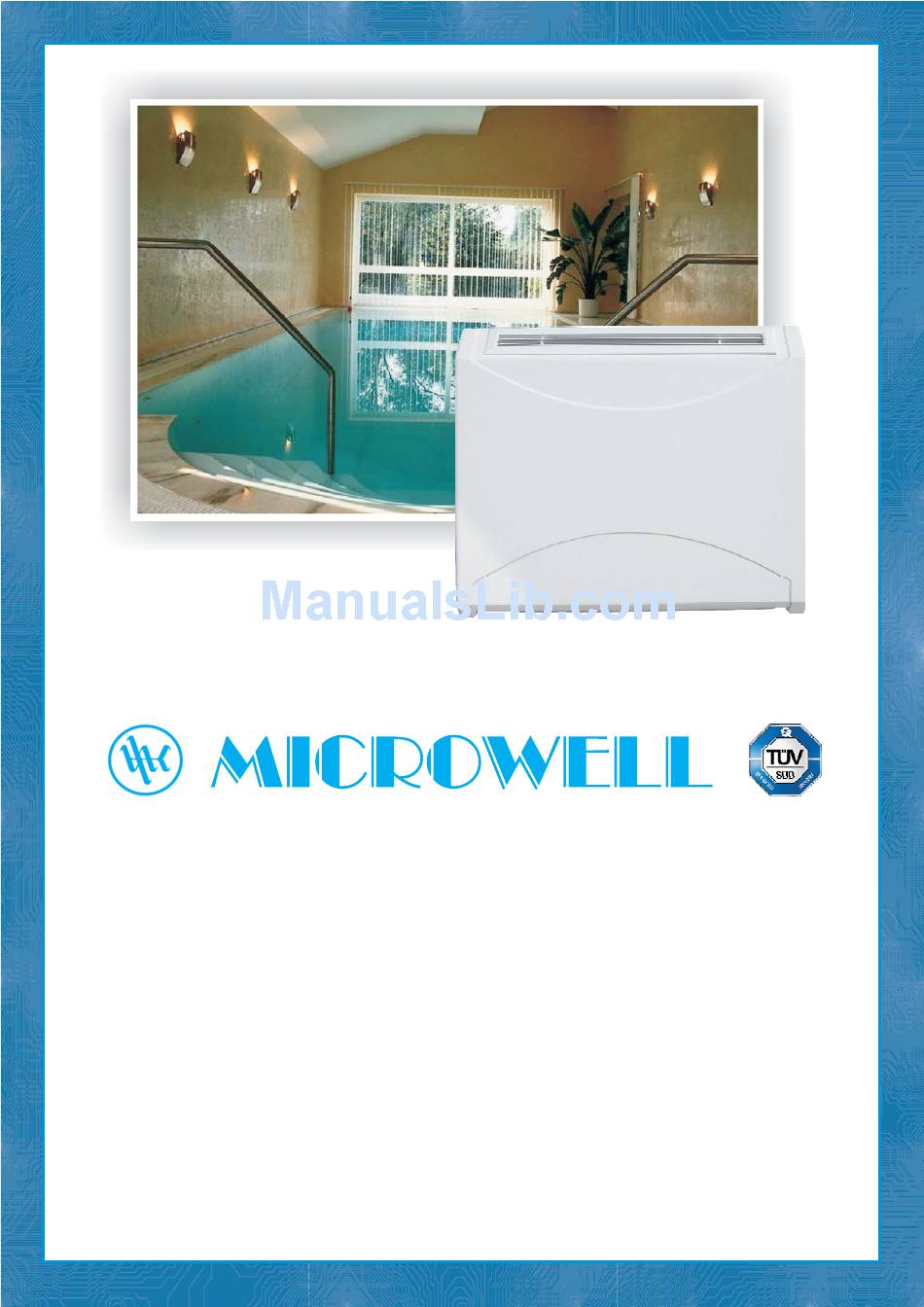

- Page 1 WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER USER´S MANUAL MODEL: DRY 300 & 500 PLASTIK...
-
Page 2: Safety Measures
The Microwell DRY 300 PLASTIK is designed for halls with a swimming pool surface area of up to 30 m . The Microwell DRY 500 PLASTIC is designed for halls with a swimming pool surface area of up to 60 m . - Page 3 INSTRUCTIONS FOR USE 3.1. Humidity control by means of the built-in humidistat The built-in humidistat is located at the bottom of the unit, on the left. The built-in hygrostat reads the humidity of the incoming air and, depending on the set value, does or does not switch the compressor on. In the central position of the regulator, the unit secures the average relative humidity of 60%.
- Page 4 Automatic function during a power failure: If the power supply of the dehumidifier is interrupted during the operation of the remote humidistat, then, once the power supply is renewed, the dehumidifier will automatically return to the latest setting. This recovery will occur within 15 minutes after the power supply return.
-
Page 5: Maintenance Instructions
3.3. Control of the fan Under the inside cover of the unit, there is a two-position fan mode switch. In the first position, the fan runs even if the compressor of the appliance has stopped continuous operation of the fan. In the second position, the fan only runs simultaneously with the compressor periodical duty of the fan. - Page 6 A part of the unit accessories is also an installation bracket, which must be fixed onto the wall. The axis of the fixation openings is 210 mm lower than the top edge of the unit. The fixation openings are 420 mm apart (DRY 300 PLASTIK) or 360 mm apart (DRY 500 PLASTIK).
- Page 7 Connection of the unit onto the mains must conform to relevant safety standards. Connection requirements: Power supply: 220- 240V / 50Hz. Protection: 10A (DRY 300 PLASTIK) or 16A (DRY 500i) by a protective switch with nominal differential drop-out current not exceeding 30 mA. The unit's terminal board for connection onto the electric mains is situated on the left hand-side of the unit.
- Page 8 LOCATION OF THE EQUIPMENT The location must be in compliance with the HD 384.7.702 S1, IEC 60364-7-702 standard. It is recommended to situate the unit outside zones 0, 1 and 2. In case the unit is situated into zones 2 or 1, it must be adhered to the HD, IEC standard. ZONE 1, IPX4 Swimming pools which are not cleaned by jet water...
- Page 9 6.7. LPHW heater element - to order The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a closing screw joint.
-
Page 10: Technical Data
MOUNTING FROM INSIDE: REINFORCE THE PIPING TO THE VALUE OF 65 MM AND FROM THE OUTER SIDE - PUR FOAM HAS TO BE GLUED TO THE MASONRY. PIPING 615x65mm - DRY 300 PLASTIK AFTER HARDENING OF THE PUR FOAM, REMOVE THE FORTIFICATION AND (PIPING 1075x65mm - DRY 500 PLASTIK) MOUNT THE GRID. -
Page 11: Side View
DIMENSIONS DRY 300 PLASTIK FRONT VIEW SIDE VIEW ATTACHMENT OF THE LPHW HEATER ELEMENT TO THE DISTRIBUTION OF THE HEATING WATER - (MODELS WITH THE LPHW HEATER ELEMENT ONLY) THREAD G ½ '’ THE POSITION AGAINST GETTING LOOSE FROM THE POSITION AGAINST GETTING LOOSE FROM... - Page 12 WIRING DIAGRAM (DRY 300 PLASTIK) CIRCUIT LAYOUT AND DETAILED WIRING DIAGRAM OF MODEL MICROWELL DRY 300 PLASTIK LOW PRESSURE HIGH PRESSURE SAFETY CUTOUT SAFETY CUTOUT COMPRESSOR RECEIVER ONLY MODELS WITH REMOTE CONTROL HEAT PROTECTION HUMIDISTAT CONDENS. PERIODICITY CONTINUOUS STARTING RELAY...
- Page 13 OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 300 PLASTIK) (l/24h) (°C) Air temperature OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 500 PLASTIK) (l/24h) (°C) Air temperature WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL...
-
Page 14: Warranty Conditions
When applying applicable warranty, the registration card that ensures applicable warranties must be returned. In case you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. - indicated your name, address and serial number of your dehumidifier. - Page 16 MICROWELL, Ltd. Distributed by: SNP 2018/42 927 01 Ša¾a, Slovakia Phone: +421 31 7020 540-1 Fax: +421 31 7020 542 E-mail: microwell@microwell.sk www.microwell.sk...
