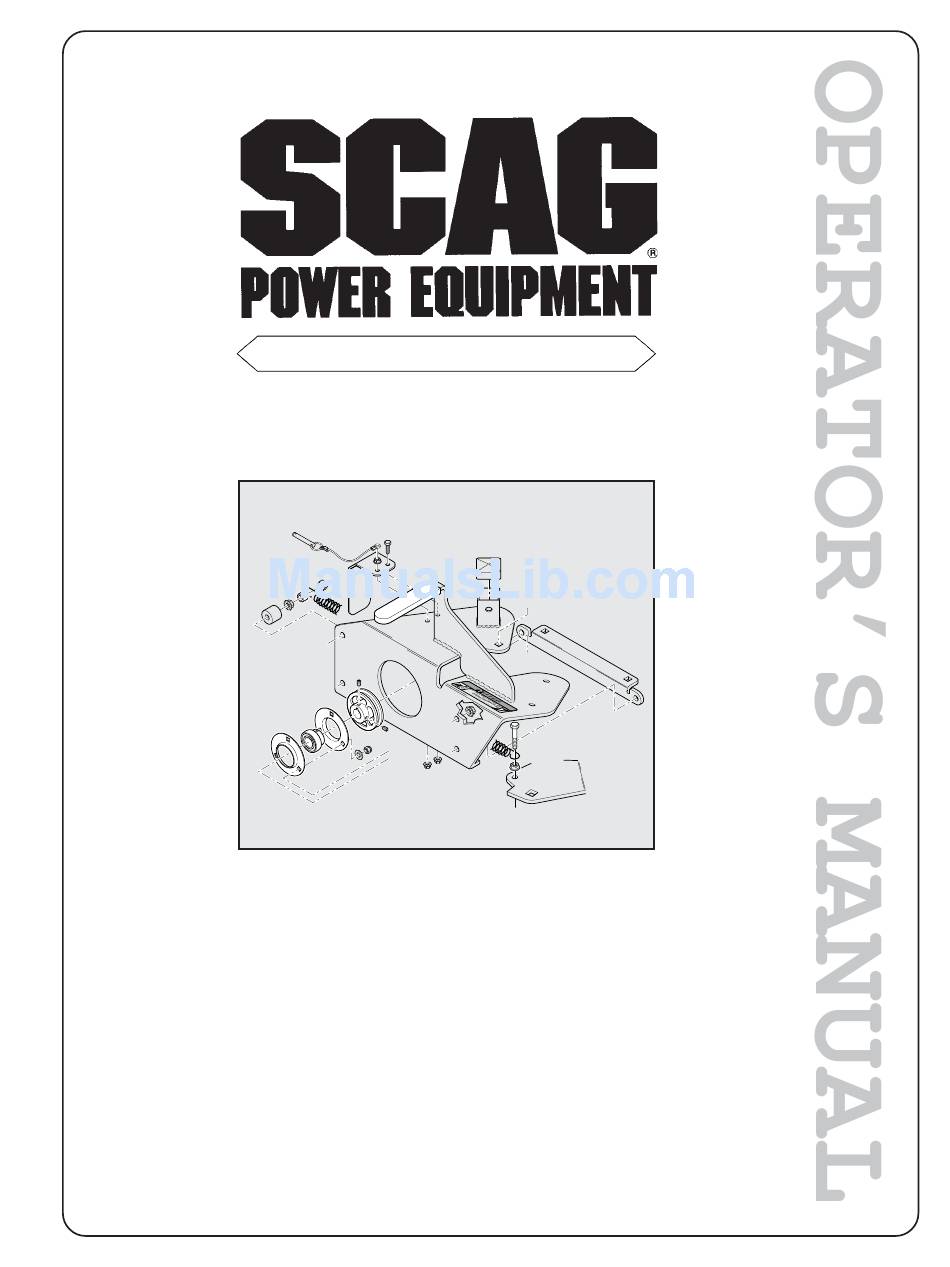

MODEL GC-STC
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03125

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scag Power Equipment GC-STC

Summary of Contents for Scag Power Equipment GC-STC

  • Page 1 MODEL GC-STC THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
  • Page 2 Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the op- eration, transport, maintenance, and storage of the equipment. This manual covers the operating instructions and illustrated parts list for: GC-STC with a part number of 9015...

  • Page 3: Direction Reference

    A replacement manual is available from your authorized Scag Service Dealer or by contacting: USE OF OTHER THAN ORIGINAL SCAG Scag Power Equipment, Service Department at P.O. REPLACEMENT PARTS WILL VOID THE Box 152, Mayville, WI 53050. You may also contact WARRANTY.

  • Page 4: Assembly Instructions

    ON RH SPINDLE SHAFT - ON TOP OF EXISTING REMOVE EXISTING SPINDLE DRIVE RT. SIDE BELT PULLEY COVER REMOVE U-NUT RIGHT SIDE OF CUTTER DECK SHOWN (Note: Some parts not shown for viewing purposes.) Figure 1- GC-STC install art FIGURE 1...
  • Page 5 REAR OF CUTTER DECK FRONT OF DISCHARGE CHUTE OPENING CUTTER DECK VIEW FROM RIGHT SIDE OF CUTTER DECK Figure 2- GC-STC install art FIGURE 2 CATCH PLATE ELASTIC STOP NUT BLOWER ASSEMBLY MOUNTING LOCK BRACKET WASHER ELASTIC STOP NUTS P R O P E R L Y...
  • Page 6 9. Install the belt to the spindle pulley. When 13. Install the hose from the blower assembly replacing the belt, see figure below. adapter to the hopper hood and secure using the 6-1/2" clamps. BACK SIDE BLOWER IDLER PULLEY PULLEY 14.
  • Page 7 MOUNTING ASSEMBLY BRACKET CLEVIS PIN P/N 04064-15 RUE COTTER PIN P/N 04069-03 GC-STC removal art 3 Figure 8 RIGHT SIDE OF CUTTER DECK SHOWN (Note: Some parts not shown for viewing purposes.) GC-STC removal art 1 Figure 6 5. Remove the two (2) pins holding the hood assembly to the mounting posts on the rear of the machine.
  • Page 8 NOTES...
  • Page 9 GC-STC BLOWER HOUSING ASSEMBLY 390S0200...
  • Page 10 GC-STC BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 04001-01 Bolt, Hex Head 1/4-20 x 3/4" 423298 Belt Cover, Rear...
  • Page 11 GC-STC BLOWER MOUNTING COMPONENTS 390S0203-A...
  • Page 12 04029-04 Wingnut, Plastic 3/8 Small 482300 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461387 Adapter, Blower GC-STC, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4" 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 481625-01 Knob W/Stud, 3/8-16 x 1-1/4"...
  • Page 13 GC-STC BUCKET SUPPORT COMPONENTS (UPPER)
  • Page 14 GC-STC BUCKET SUPPORT COMPONENTS (UPPER) Ref. Part Number Description 423302 Screen, Catcher Hood 04090-02 Pop Rivet, 3/16 x .652 04041-19 Flatwasher, 3/16-.196 x .469 x .048 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4" 04041-01 Flatwasher, 3/8-.391 x .938 x .105 461408 Hood Assembly, GC-STT (includes items 1, 2 &...
  • Page 15 GC-STC BUCKET SUPPORT COMPONENTS (LOWER) "A" TO "A" STC 2002 BSC...
  • Page 16 GC-STC BUCKET SUPPORT COMPONENTS (LOWER) Ref. Part Number Description 04090-02 Pop Rivet, 3/16 x .652 482321 Seal, Hood 423262 Tube, Upright 04041-07 Flatwasher, 3/8-.391 x .938 x .105 04021-09 Nut, Elastic Stop 3/8-16 04020-04 Nut, 3/8-16 04021-05 Hex Lock Nut, 3/8-16 04067-07 Pin, Ring 1/2 x 2-1/4"...
  • Page 17 GC-STC DECALS 481039 482275 481327 482293...

  • Page 18: Limited Warranty- Commercial Accessory

    This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
  • Page 19 © 2003 PART NO. 03125 SCAG POWER EQUIPMENT PRINTED 6-2002 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA WWW.SCAG.COM...
