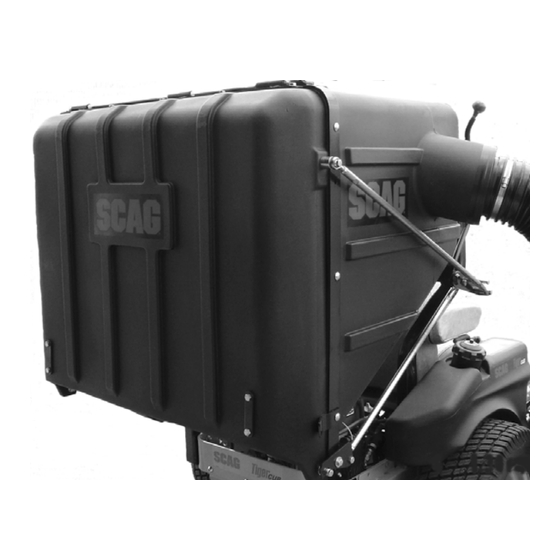

Clam shell grass catcher
Hide thumbs Also See for GC-STT:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Congratulations on owning a Scag mower! This manual contains the operating
instructions and safety information for your Scag mower accessory. Reading
this manual can provide you with assistance in maintenance and adjustment
procedures to keep your mower performing to maximum effi ciency. The
specifi c models that this book covers are listed on the inside cover. Before
operating your machine, please read all the information enclosed.
© 2011
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.

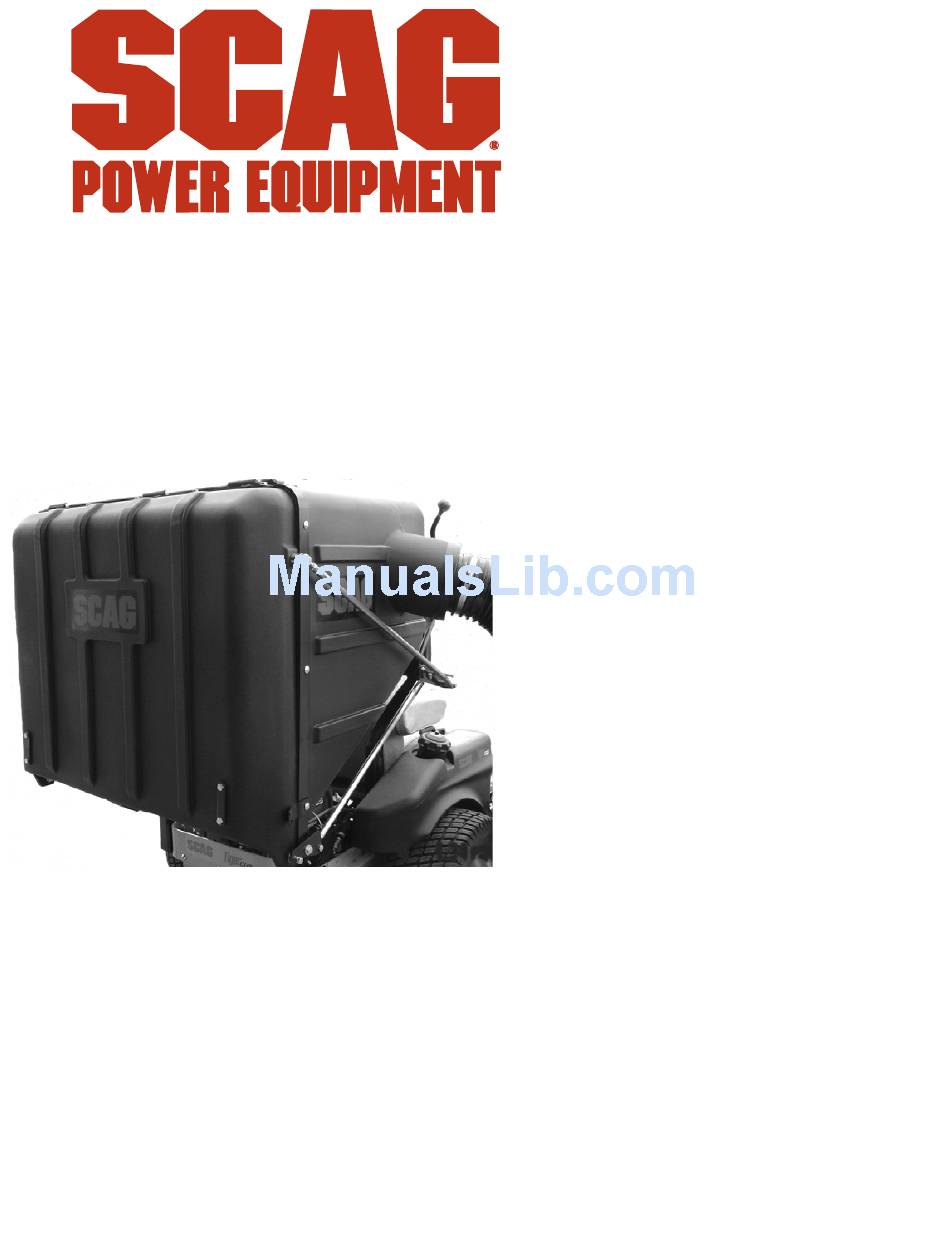

OPERATOR'S
MANUAL
CLAM SHELL
GRASS CATCHER
Models:
GC-STT/SCZ-CS61V
PART NO. 03264 Rev.01
PRINTED 6/2011
PRINTED IN USA

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scag Power Equipment GC-STT

Summary of Contents for Scag Power Equipment GC-STT

  • Page 1 Before operating your machine, please read all the information enclosed. © 2011 PART NO. 03264 Rev.01 Scag Power Equipment PRINTED 6/2011 Division of Metalcraft of Mayville, Inc. PRINTED IN USA...
  • Page 2 CONCERN, PRUDENCE, AND PROPER TRAINING OF THE PERSONNEL INVOLVED IN THE OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EQUIPMENT. This manual covers the operating instructions and illustrated parts list for: GC-STT/SCZ-CS61V with a serial number of F6900001 to F6999999 Always use the entire serial number listed on the serial number tag when referring to this product.

  • Page 3: Direction Reference

    1.1 INTRODUCTION A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. This manual has been prepared to provide the Box 152, Mayville, WI 53050. You may also contact information you need to correctly assemble, operate, us through our website at www.scag.com.
  • Page 4 5. To clean the hopper debris screen; 3. When dumping the hopper into a disposal area: Disengage the deck drive and allow all WARNING WARNING moving parts to come to a complete stop. DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Apply parking brake and shut off the engine.
  • Page 5 3.1 ASSEMBLY INSTRUCTIONS WARNING WARNING -NOTE- Use the illustrated parts list as a part number DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING reference when following the assembly KIT, OR ENTIRE GRASS CATCHER INSTALLED instructions. 3. Remove the right side belt cover to gain access -IMPORTANT- to the spindle assembly.
  • Page 6 61" Cutter Deck REAR OF FRONT OF CUTTER DECK DISCHARGE CHUTE OPENING CUTTER DECK VIEW FROM RIGHT SIDE OF CUTTER DECK Figure 2-61"GC-STT install art FIGURE 3-3 BLOWER ASSEMBLY QUICK HAIR MOUNTING BRACKET P R O P E R L Y...
  • Page 7 7. Install the blower assembly to the mounting bracket and secure with the mounting pin and hair pin. See Figure 3-4, Page 4. 8. Align the blower assembly with the discharge opening of the cutter deck. Tighten the hardware for the mounting bracket. Install the quick pin through the rear hole in the discharge chute mounting bracket.
  • Page 8 Item # Part # Description 04001-19 Bolt, Hex Head 3/8-16 x 1" 04021-09 Nut, Elastic Stop 3/8-16 04066-03 Quick Pin 423670 Spacer, Hitch 451512 Hitch Bracket Weldment 451595 Hitch Bracket Weldment, Floating Hopper Assembly Liquid Cooled Only Note: Illustration is for reference only. Some parts have been Frame removed for visual purposes and may vary depending on model.
  • Page 9 Item # Part # Description 04001-19 Bolt, Hex Head 3/8-16 x 1" 04021-09 Nut, Elastic Stop 3/8-16 04066-03 Quick Pin 451512 Hitch Bracket Weldment 451595 Hitch Bracket Weldment, Floating Hopper Assembly Briggs & Stratton Models Only Frame Note: Illustration is for reference only. Some parts have been removed for visual purposes and may vary depending on model.
  • Page 10 6.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the work area making sure that it is a clean, safe environment. REMOVE 2. Remove the rubber strap holding the adapter to the blower assembly. See Figure 5-1. 3. Remove the belt from the spindle pulley and the quick pin securing the blower to the discharge mounting bracket.

  • Page 11: Maintenance Chart - Recommended Service Intervals

    MAINTENANCE 5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 Procedure Comments (First 10) Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags *Check screen in hopper Remove debris from screen Inspect hose and adapter Inspect fabric bags...
  • Page 12 GC-STT/SCZ-V BLOWER HOUSING ASSEMBLY 2005 GC V+ Blower Assembly...
  • Page 13 GC-STT/SCZ-V BLOWER HOUSING ASSEMBLY Ref. Part Ref. Part Number Description Number Description 04019-04 Nut, Serr. Flange 3/8-16 04067-07 Pin, Ring 2-1/4" Long 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8 481547 Lanyard, Deck Height Pin 483391 Decal, Danger 04019-02 Nut, Serr.
  • Page 14 GC-STT/SCZ-V BLOWER MOUNTING COMPONENTS UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN RIGHT SIDE OF CUTTER DECK SHOWN 2006 GC-STC-V BMC...
  • Page 15 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STT, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4" 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 481625-01 Knob W/Stud, 3/8-16 x 1-1/4"...
  • Page 16 GC-STT/SCZ-CSV HOPPER COMPONENTS 25 36 2011 CSHOPPEREXPLODE-STT SCZ...
  • Page 17 GC-STT/SCZ-CSV HOPPER COMPONENTS Ref. Part Ref. Part Number Description Number Description 483038 Hopper, GC-STT-CS 04001-77 Bolt, Hex Head 3/8-16 x 3-1/2" 482732 Door, GC-CS 04003-04 Bolt, Carriage 5/16-18 x 1" 461626 Sweeper Weldment, GC-CS 04010-01 Screw, #10-32 x 1/2" 482777...
  • Page 18 STT FRONT WEIGHT COMPONENTS Ref. Part Number Description 04021-09 Nut, Elastic Stop 3/8-16 04067-06 Pin, 1/2 x 6-1/4" 481737 Lanyard, Weight Pin 461097 Weight Assembly 422586 Clamp, Bar 451026 Support Weldment, Front Weights 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2"...
  • Page 19 STT61V-28CAT / SCZ61V FRONT WEIGHT COMPONENTS Ref. Part Number Description 04021-11 Nut, Elastic Stop 7/16-14 04067-06 Pin, 1/2 x 6-1/4" 481737 Lanyard, Weight Pin 461097 Weight Assembly 04001-117 Bolt, Hex Head 7/16-14 x 1-3/4" 452175 Support Weldment, Front Weights (STT61V-28CAT. SCZ61) 04040-11 Flatwasher, 7/16-.500 x 1.250 x .083...
  • Page 20 GC-STT-CSV DECALS 483402 482275 MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS: 4,487,006 4,885,903 4,920,733 4,967,543 4,991,382 4,998,948 5,042,239 5,117,617 5,133,176 5,826,416 5,832,708 5,865,018 6,192,666 6,766,633 6,892,519 6,996,962 7,065,946 PATENTS PENDING 483044 481327 483392 483392 483391 483391 483393 483393...
  • Page 21 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.

This manual is also suitable for:

Scz-cs61v
