Instructions for Installing the SFC30 Manual Deck Engagement Kit
Please read through and become familiar with these instructions before beginning to install this kit.
Some parts have been removed in the illustrations provided in the instruction sheet for clarity.
1.
Prepare the machine so there is easy and safe access to the work area. Maintain all safety related work
procedures. Release the drive control and blade control bars from the engaged position. Stop the engine.
Wait for all moving parts to come to a complete stop. Remove the sparkplug wire from the sparkplug.
Always wear eye and hand protection.
2.
Remove the belt cover from the cutter deck.
3.
If the grass catcher bag is installed, remove it from the mower.
4.
Using a piece of scrap material, broom handle or other object wider than the handle bars, lift and support the
rear cover to gain access to the rear of the mower. See Figure 1.
5.
Remove the two (2) 1/4-20 x 1/2" serrated fl ange bolts used to secure the transmission access cover to the
rear of the machine. Retain the cover and mounting hardware for reuse. See Figure 1.
6.
Remove and retain the transmission drive belt. This belt will be re-installed in step number
7.
Remove and retain the deck drive belt.
8.
Remove and discard the deck drive idler spring.
IS 07299 Rev 01
Part #:
Description:
Date:
Do Not operate equipment with shields or guards removed.

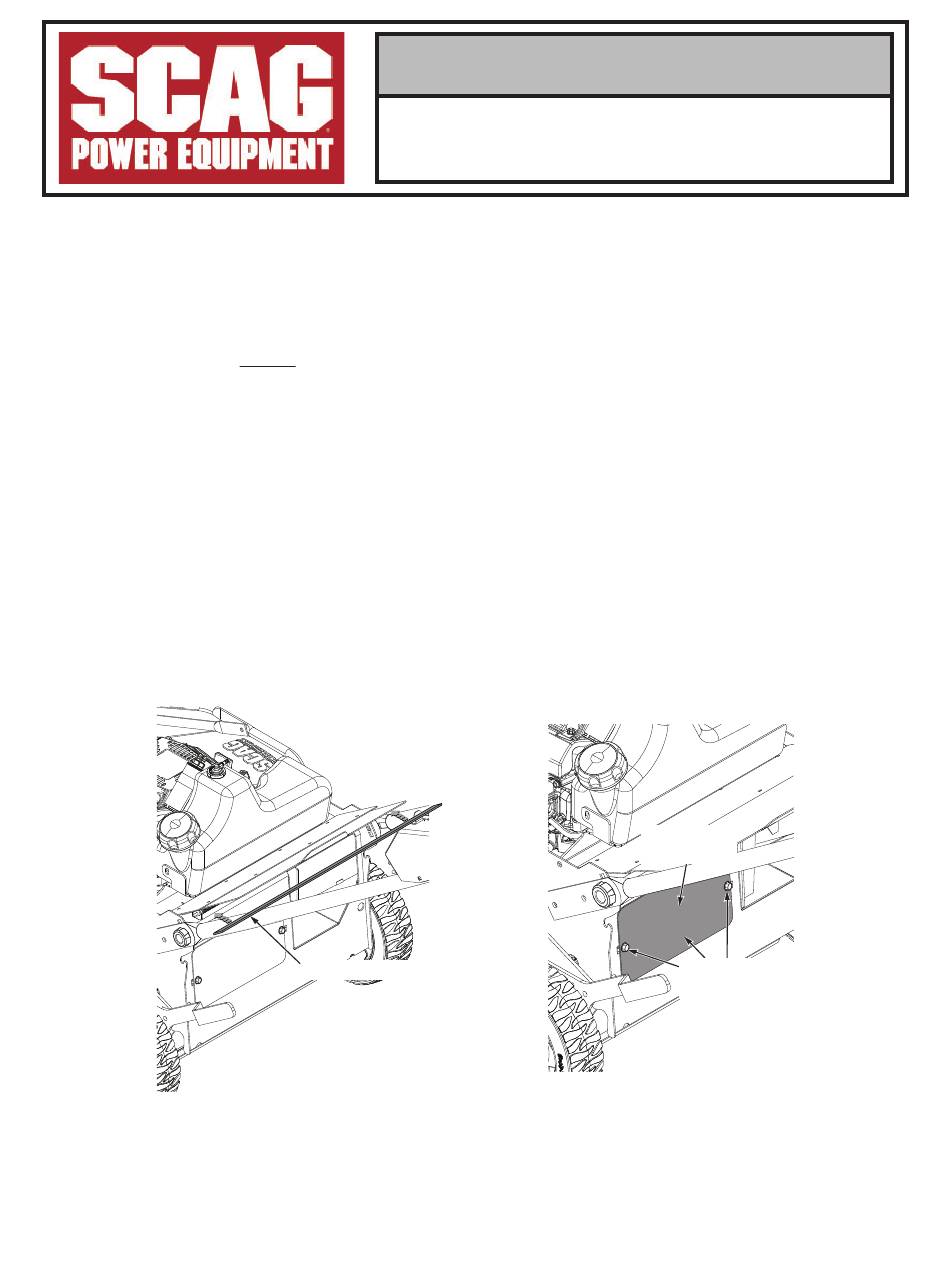

Support Rear Cover
Figure 1. Remove & Retain Transmission Access Cover
This belt will be re-installed in step number
INSTRUCTION SHEET 07299
463475
SFC30 - Manual Deck Engagement Kit
1/05/2023
-NOTE-
Remove
Access Cover
Retain Cover
& Hardware
36.
33.
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the SFC30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scag Power Equipment SFC30

  • Page 1 SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Instructions for Installing the SFC30 Manual Deck Engagement Kit -NOTE- Please read through and become familiar with these instructions before beginning to install this kit. Some parts have been removed in the illustrations provided in the instruction sheet for clarity.
  • Page 2 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Remove the idler arm assembly from the cutter deck making sure to retain the idler pivot. Discard the idler arm mounting hardware shown. See Figure 2.
  • Page 3 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Remove the LH & RH spindle pulleys and 1/2-13 spiral lock nuts used to secure the pulleys to the spindles. Retain the 3/16 x 3/16 x 1-1/2" key from each pulley. These keys will be reused when the new pulleys are installed in step 27.
  • Page 4 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Discard x2 5/16-18 x 3/4” Discard x2 5/16-18 Discard Trans Drive Pulley 3/16” x 3/16“ x 2” Key Retain 3/8” x 1-1/2” Flat Washer 3/8” Lock Washer 3/8-24 x 2”...
  • Page 5 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 5/16-18 x 3/4” LH & RH 5/16-18 LH & RH Belt Guide Bracket Secure to deck with rear mounting bolts for engine. Deck Drive Pulley Trans Drive Pulley 3/16”...
  • Page 6 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Identify the left & right brake mounting brackets included with this kit. Assemble the RH brake mounting bracket to the cutter deck and secure with three (3) 5/16-18 x 1" hex head bolts and three (3) 5/16-18 elastic stop fl...
  • Page 7 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 3/8-16 x 1-1/2” Hex Head Bolt 5/16-18 x 1” Button Head 3/8-16 Capscrew Serr Flg Nut 5/16” Flat Washer Cable Mount 5/16-18 Elastic Stop 3/8-16...
  • Page 8 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Install the idler pulley removed in step 10 to the idler arm with brake band assembly included with this kit. Secure the pulley using one (1) 3/8-16 x 2" carriage bolt, one (1) 3/8 fl atwasher, and one (1) 3/8-16 fl ange elastic stop nut provided.
  • Page 9 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Install the new deck drive engagement cable supplied with this kit to the blade control bar located on the machine instrument panel. Route the cable to the cutter deck following the same path as the original cable that was removed in step 13.
  • Page 10 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Instructions for Blade Brake Cable Adjustment With the blade control bar in the disengaged position, adjust until there is a slight amount of slack on the cable.
  • Page 11 INSTRUCTION SHEET 07299 Part #: 463475 Description: SFC30 - Manual Deck Engagement Kit Date: 1/05/2023 Instructions for Cutter Deck Belt Adjustment With the blade control bar in the disengaged position, adjust the cutter deck belt tension by tightening or loosening the adjustment bolt. See Figure 14.
