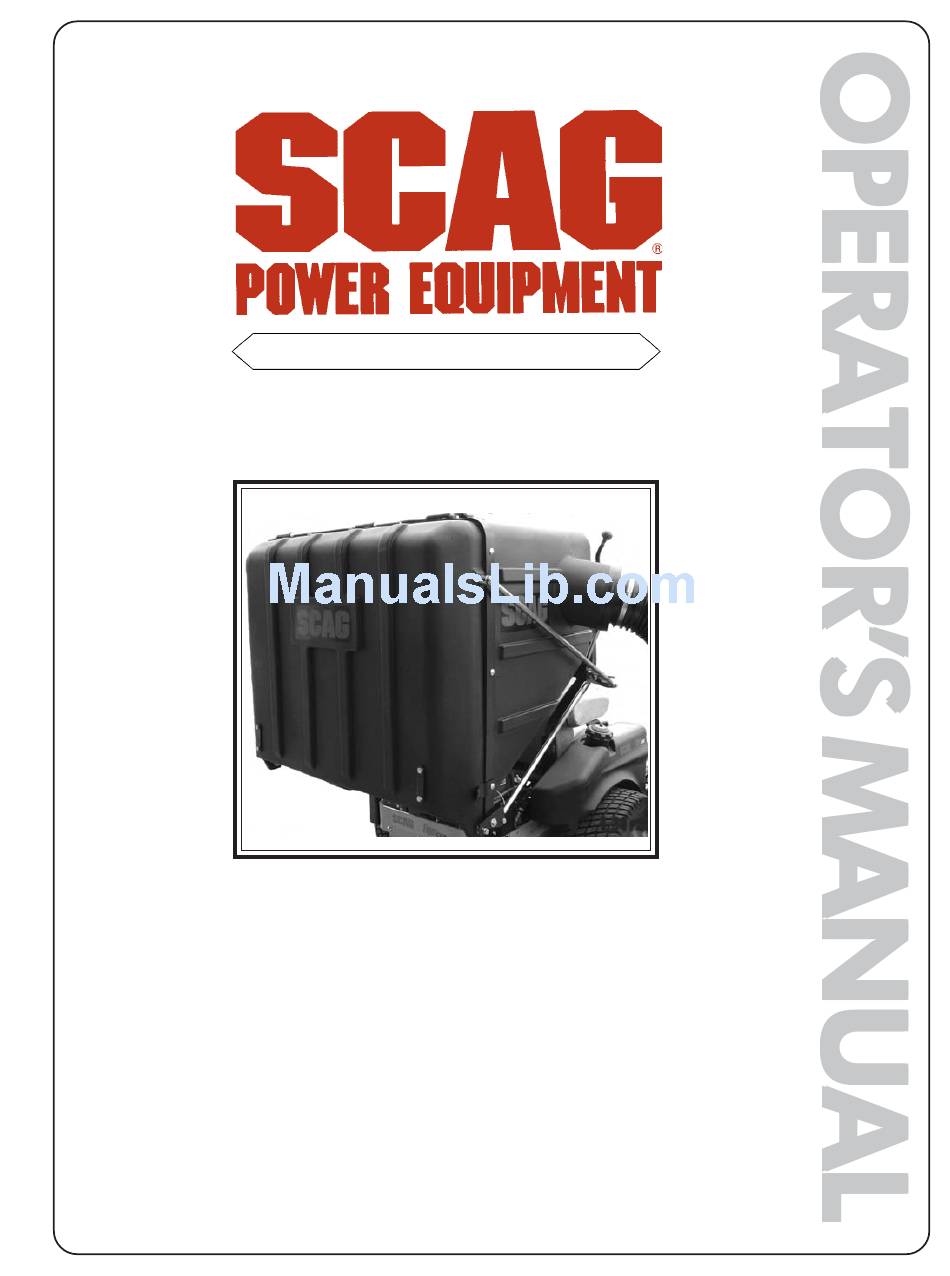

MODEL GC-STWC-CS61V
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03185

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STWC-CS61V and is the answer not in the manual?

Questions and answers

Summary of Contents for Scag Power Equipment GC-STWC-CS61V

  • Page 1 MODEL GC-STWC-CS61V THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
  • Page 2 This manual covers the operating instructions GC-STWC-CS61V with a serial number of B9300001 to B9399999 WARNING and illustrated parts list for:...
  • Page 3: Direction Reference

    A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com. The...
  • Page 4 3. When dumping the hopper into a disposal area: WARNING WARNING DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Disengage the deck drive, apply the parking brake and allow all moving parts to come to a complete stop. Pull downward on the hopper door handle to allow the hopper sweeper to remove the material from inside the hopper.
  • Page 5: Cutter Deck

    3.1 ASSEMBLY INSTRUCTIONS FOR 61" CUTTER DECK -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
  • Page 6 7. Install the blower assembly to the mounting bracket and secure with the mounting pin. See Figure 3-4. 8. Align the blower assembly with the discharge opening of the cutter deck. Tighten the hardware for the mounting bracket. See Figure 3-4.
  • Page 7 14. Install the hose from the blower assembly adapter to the hopper hood and secure using the 8-1/2" clamps. 15. Using the weight support bar (p/n 451517) as a guide, identify the four corresponding mounting holes, and the existing hardware that will need to be removed in order to secure the weight support bar to the front of the machine as shown.
  • Page 8 4.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the machine so there is easy and safe access to the work area. Remove the key and maintain all safety related work procedures. Always wear eye and hand protection. 2. Remove the rubber strap holding the adapter to the blower assembly and the large quick pin securing the blower to the discharge mounting bracket.
  • Page 9: Maintenance Chart - Recommended Service Intervals

    5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 (First 10) * Perform these maintenance procedures more frequently under extreme dusty or dirty conditions. GREASE FITTING ON BEARING HOUSING MAINTENANCE Procedure Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags...
  • Page 10 GC-STWC-CS61V BLOWER HOUSING ASSEMBLY 2006 GC-STWC-61V Blower Assembly...
  • Page 11 GC-STWC-CS61V BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-10 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04066-04 Quick Pin, 5/16" Dia. 04001-21 Bolt, Hex Head 3/8-16 x 1-3/4" 481377 Decal, Blower 482080 Decal, Rotating Blower 481428 Grip, Blower Lever...
  • Page 12 GC-STWC-CS61V BLOWER MOUNTING COMPONENTS RIGHT SIDE OF CUTTER DECK SHOWN UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN 2006 GC-STC-V BMC...
  • Page 13 GC-STWC-CS61V BLOWER MOUNTING COMPONENTS Ref. Part Number Description 483227 Belt Cover, GC-61V 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4"...
  • Page 14 GC-STWC-CS61V HOPPER COMPONENTS 25 36 2006 CSHOPPEREXPLOD-STC...
  • Page 15 GC-STWC-CS61V HOPPER COMPONENTS Ref. Part Number Description 483038 Hopper, GC-STC-CS 482732 Door, GC-CS 461626 Sweeper Weldment, GC-CS 482777 Pad, Rubber 04090-02 Pop Rivet, 3/16 x .652 423834 Plate, Stiffener 423938 Support Frame, Hopper 423849 Hinge Bracket, L.H. 423850 Hinge Bracket, R.H.
  • Page 16 GC-STWC-CS61V DECALS 482871 482871 481327 483037 482275 MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS: 4,487,006 4,885,903 4,920,733 4,967,543 4,991,382 4,998,948 5,042,239 5,118,617 5,133,176 5,826,416 5,832,708 5,865,018 6,192,666 6,766,633 6,892,519 PATENTS PENDING 483044 481377 482080 482080...
  • Page 17: Limited Warranty- Commercial Accessory

    This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
  • Page 18 © 2005 PART NO. 03185 SCAG POWER EQUIPMENT PRINTED 8-2005 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA www.scag.com...
