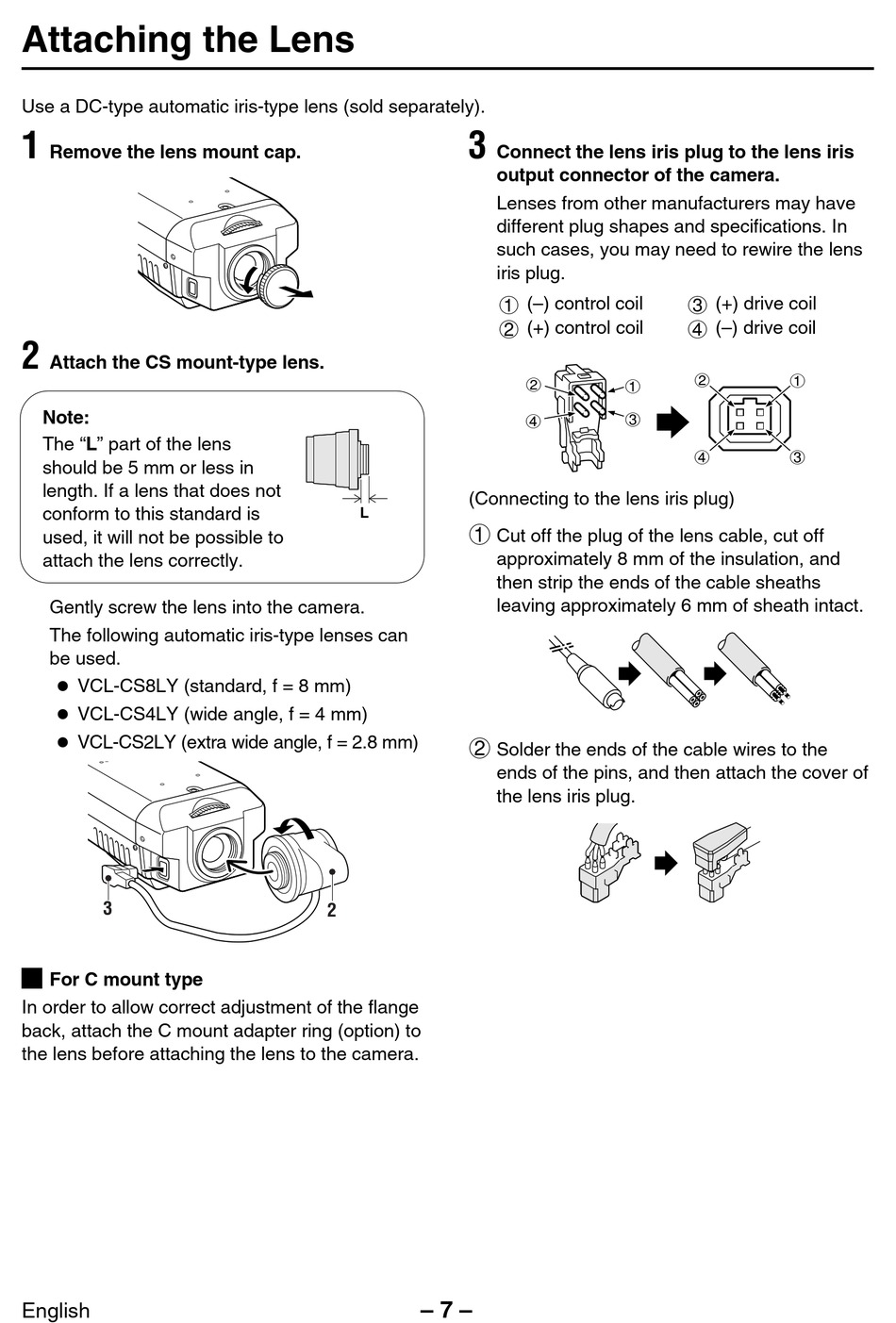

Attaching the Lens

Use a DC-type automatic iris-type lens (sold separately).
1
Remove the lens mount cap.
2
Attach the CS mount-type lens.
Note:
The "L" part of the lens
should be 5 mm or less in
length. If a lens that does not
conform to this standard is
used, it will not be possible to
attach the lens correctly.
Gently screw the lens into the camera.
The following automatic iris-type lenses can
be used.
•
VCL-CS8LY (standard, f = 8 mm)
•
VCL-CS4LY (wide angle, f = 4 mm)
•
VCL-CS2LY (extra wide angle, f = 2.8 mm)
3
For C mount type
In order to allow correct adjustment of the flange
back, attach the C mount adapter ring (option) to
the lens before attaching the lens to the camera.
English
3
Connect the lens iris plug to the lens iris
output connector of the camera.
Lenses from other manufacturers may have
different plug shapes and specifications. In
such cases, you may need to rewire the lens
iris plug.
(Connecting to the lens iris plug)
L
1
Cut off the plug of the lens cable, cut off
approximately 8 mm of the insulation, and
then strip the ends of the cable sheaths
leaving approximately 6 mm of sheath intact.
2
Solder the ends of the cable wires to the
ends of the pins, and then attach the cover of
the lens iris plug.
2
– 7 –
1
(–) control coil
2
(+) control coil
2
1
3
4
3
(+) drive coil
4
(–) drive coil
