Connections

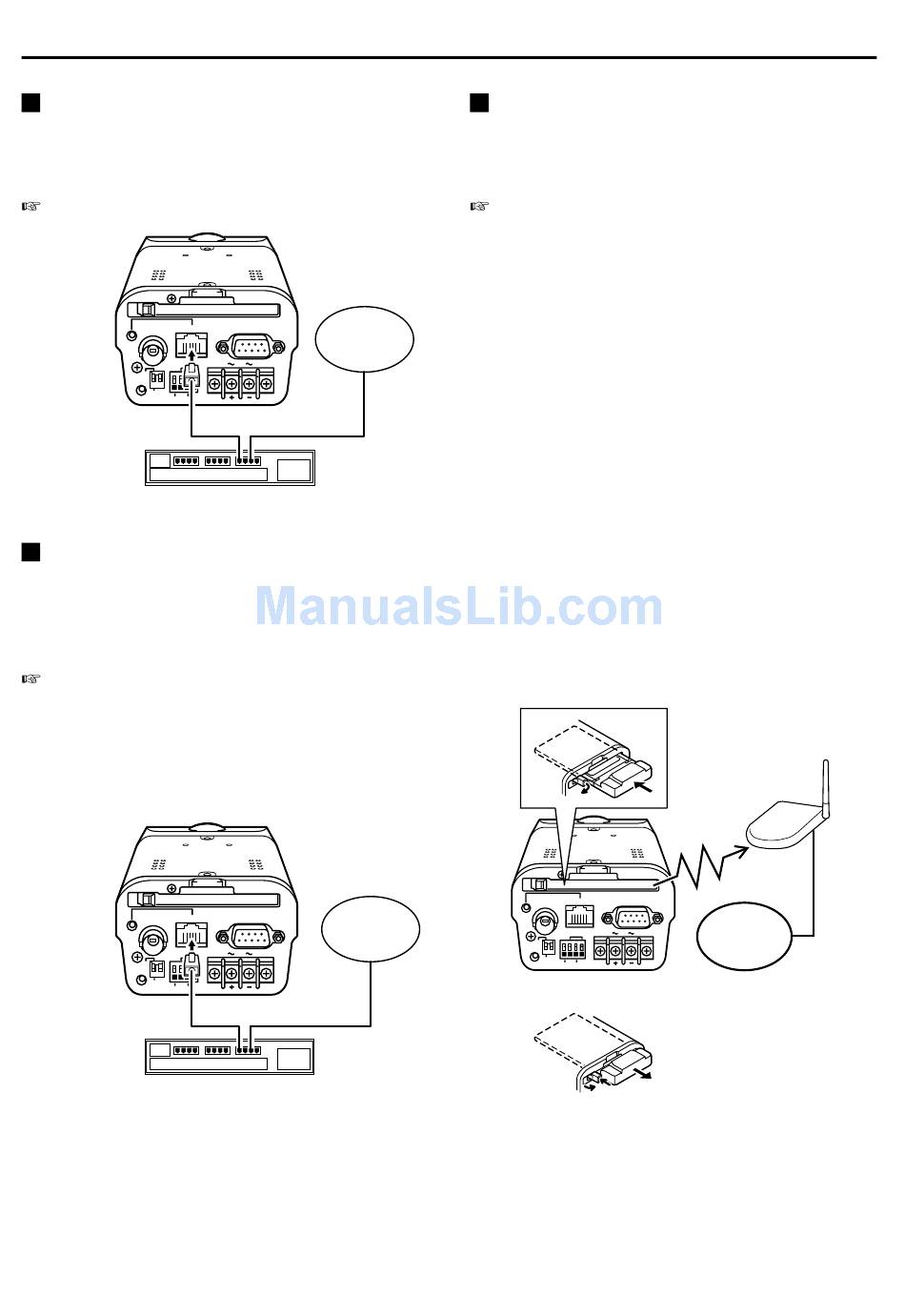

Connecting to a LAN

Use an Ethernet cable to connect the
ETHERNET connector of the camera to the
LAN's Ethernet switching hub.
Use a straight-type Ethernet cable.
MONITOR
ETHERNET
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
Ethernet cable
(straight type)
Ethernet switching hub

Connecting to the Internet

Use an Ethernet cable to connect the
ETHERNET connector of the camera to a
device such as a router or ADSL modem that is
connected to the Internet.
If connecting to a router, use a straight-type
Ethernet cable. If connecting to an ADSL
modem or to some other type of device, refer
to the documentation provided with the
device for details on what type of connection
method should be used.
MONITOR
ETHERNET
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
Ethernet cable
(straight type)
Router or ADSL modem
PC CARD
RS-232C
LAN
AC24V GND
DC12V
CLASS 2 WIRING
PC CARD
RS-232C
Internet
AC24V GND
DC12V
CLASS 2 WIRING

Connecting to a Wireless LAN

This camera can be connected to wired LANs
using an Ethernet cable, and it can be
connected to wireless LANS.
To connect the camera to a wireless LAN,
insert a wireless LAN card into the PC CARD
slot of the camera. You should use only the
recommended wireless LAN cards and
access points.
When a wireless LAN card has been
inserted into the camera, the wireless LAN
basically has priority, but if you change the
network address to a different setting, you
can also use the camera with a wired LAN at
the same time, so that if a connection cannot
be made to the wireless LAN, you can check
the settings using the wired LAN instead.
(A) Inserting the wireless LAN card
Insert the wireless LAN card while checking that
the direction is correct, and then press the eject
button to lock it in.
(B) Removing the wireless LAN card
Press the eject button to eject the wireless LAN
card.
(A)
MONITOR
ETHERNET
OUT
COM
PC
POWER
1 2
MODEM
ALARM IN OUT
(B)
Note: Consult the place of purchase for the
camera for details on obtaining a
recommended wireless LAN card.
