3.2.3. DC Power Supply Wiring Example

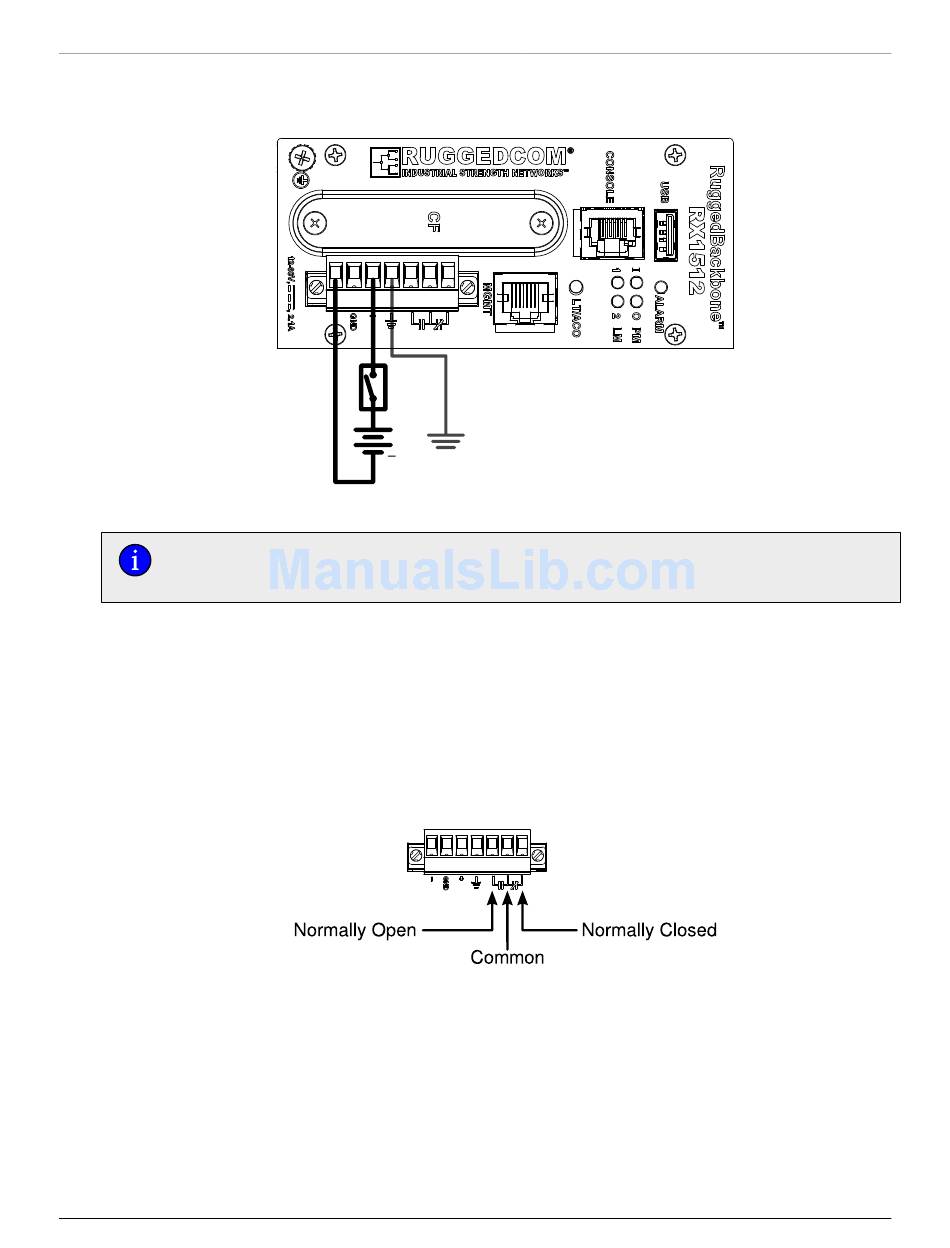

Figure 3.9. Wiring for RX1512 DC Power Supply

• It is recommended to provide a separate circuit breaker for the power supply.

• Equipment must be installed according to applicable local wiring codes.

The Critical Alarm output relay signals critical error conditions that may occur on the

RuggedBackbone™ RX1512. The contacts are energized upon power-up of the unit and remain

energized unless a critical alarm condition is detected. Relay connections are shown in the

Alarm Relay Connector

user interface.

A common application for this output is to signal an alarm in case of a power failure.

Figure 3.10. Critical Alarm Relay Connector

RuggedCom® RuggedBackbone™

diagram. You can configure control of the relay output through the ROX™
