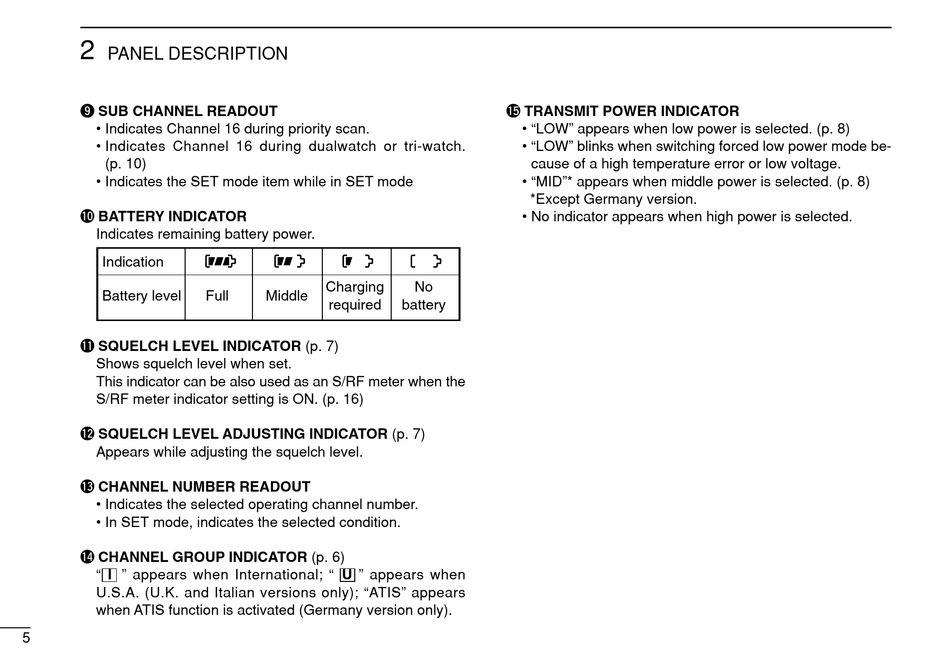

PANEL DESCRIPTION

o SUB CHANNEL READOUT
• Indicates Channel 16 during priority scan.
• Indicates Channel 16 during dualwatch or tri-watch.
(p. 10)
• Indicates the SET mode item while in SET mode
!0 BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level
!1 SQUELCH LEVEL INDICATOR (p. 7)
Shows squelch level when set.
This indicator can be also used as an S/RF meter when the
S/RF meter indicator setting is ON. (p. 16)
!2 SQUELCH LEVEL ADJUSTING INDICATOR (p. 7)
Appears while adjusting the squelch level.
!3 CHANNEL NUMBER READOUT
• Indicates the selected operating channel number.
• In SET mode, indicates the selected condition.
!4 CHANNEL GROUP INDICATOR (p. 6)
" I " appears when International; " U " appears when
U.S.A. (U.K. and Italian versions only); "ATIS" appears
when ATIS function is activated (Germany version only).
5
Charging
Full Middle
required
!5 TRANSMIT POWER INDICATOR
• "LOW" appears when low power is selected. (p. 8)
• "LOW" blinks when switching forced low power mode be-
cause of a high temperature error or low voltage.
• "MID"* appears when middle power is selected. (p. 8)
*Except Germany version.
• No indicator appears when high power is selected.
No
battery
