2

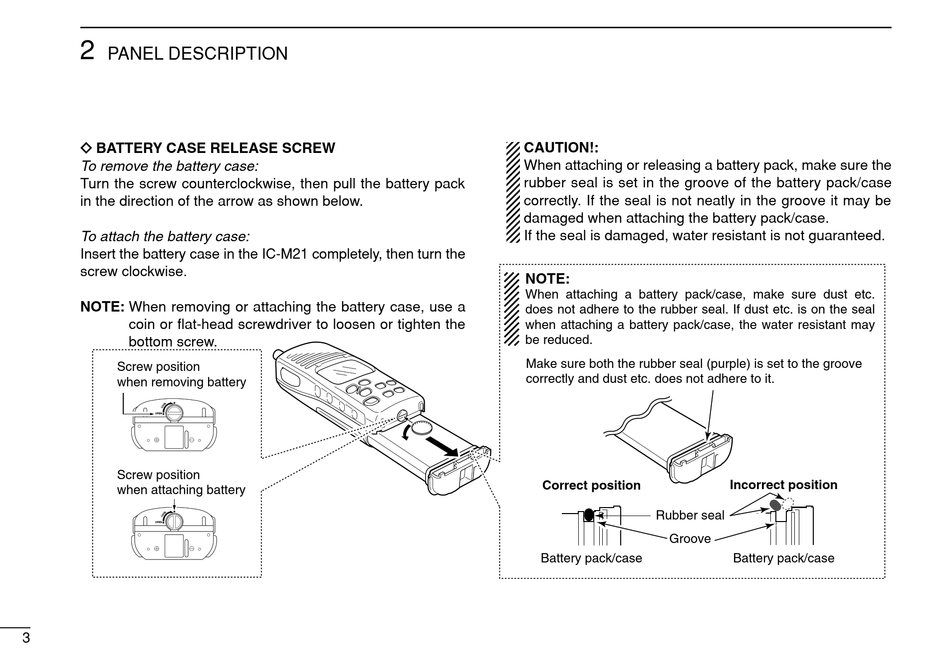

PANEL DESCRIPTION
ï BATTERY CASE RELEASE SCREW
To remove the battery case:
Turn the screw counterclockwise, then pull the battery pack
in the direction of the arrow as shown below.
To attach the battery case:
Insert the battery case in the IC-M21 completely, then turn the
screw clockwise.
NOTE: When removing or attaching the battery case, use a
coin or flat-head screwdriver to loosen or tighten the
bottom screw.
Screw position
when removing battery
OPEN
Screw position
when attaching battery
OPEN
3
CAUTION!:
When attaching or releasing a battery pack, make sure the
rubber seal is set in the groove of the battery pack/case
correctly. If the seal is not neatly in the groove it may be
damaged when attaching the battery pack/case.
If the seal is damaged, water resistant is not guaranteed.
NOTE:
When attaching a battery pack/case, make sure dust etc.
does not adhere to the rubber seal. If dust etc. is on the seal
when attaching a battery pack/case, the water resistant may
be reduced.
Make sure both the rubber seal (purple) is set to the groove
correctly and dust etc. does not adhere to it.
Correct position
Rubber seal
Groove
Battery pack/case
Incorrect position
Battery pack/case
