4. Install the shelf in the rack.
1U Universal Rack Shelf
Front false
faceplate
uses 2
screws.
Use 2 mounting holes on
opposite corners.

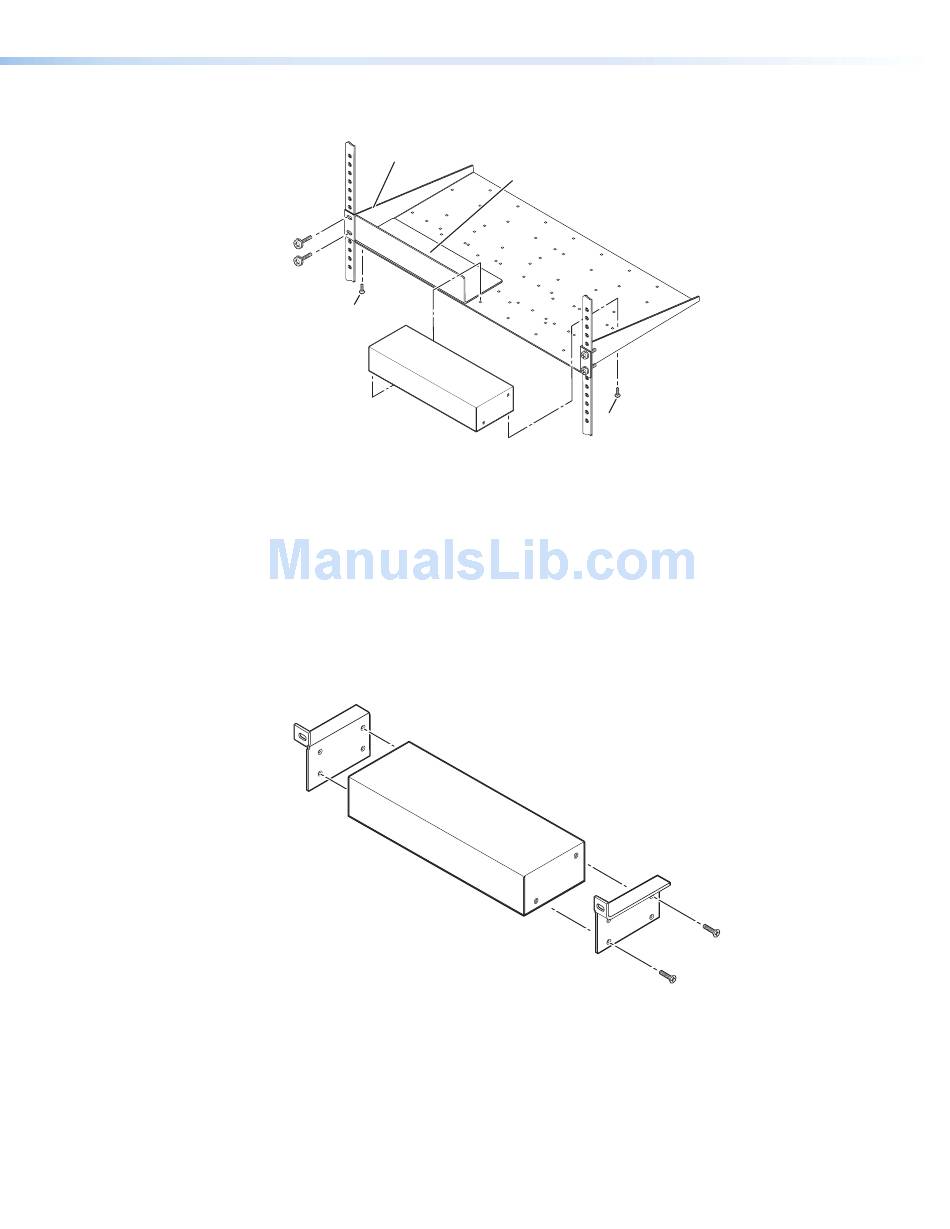

Figure 19. Mounting an SW HDMI LC Switcher on a Standard 9.5-inch Deep Rack
Shelf
Mounting to the back of the rack
The SW HDMI LC can also be mounted vertically to the front or rear rack supports, using
the optional MBB 100 Back of the Rack Mounting Kit (part #70-367-01) as follows:
1.
If rubber feet were previously attached to the bottom of the unit, remove them.
2. Remove the two screws from each side of the switcher. Retain the screws for possible
later reassembly.
3.
Attach the brackets to the sides of the unit, using the longer screws included in the
mounting kit (see the illustration below).
Figure 20. Attaching the Back of the Rack Mounting Brackets to an SW HDMI LC
Switcher
1/2 Rack Width Front False
Faceplate
(2) 4-40 x 3/16"
Screws
SW HDMI LC • Reference Information 26
