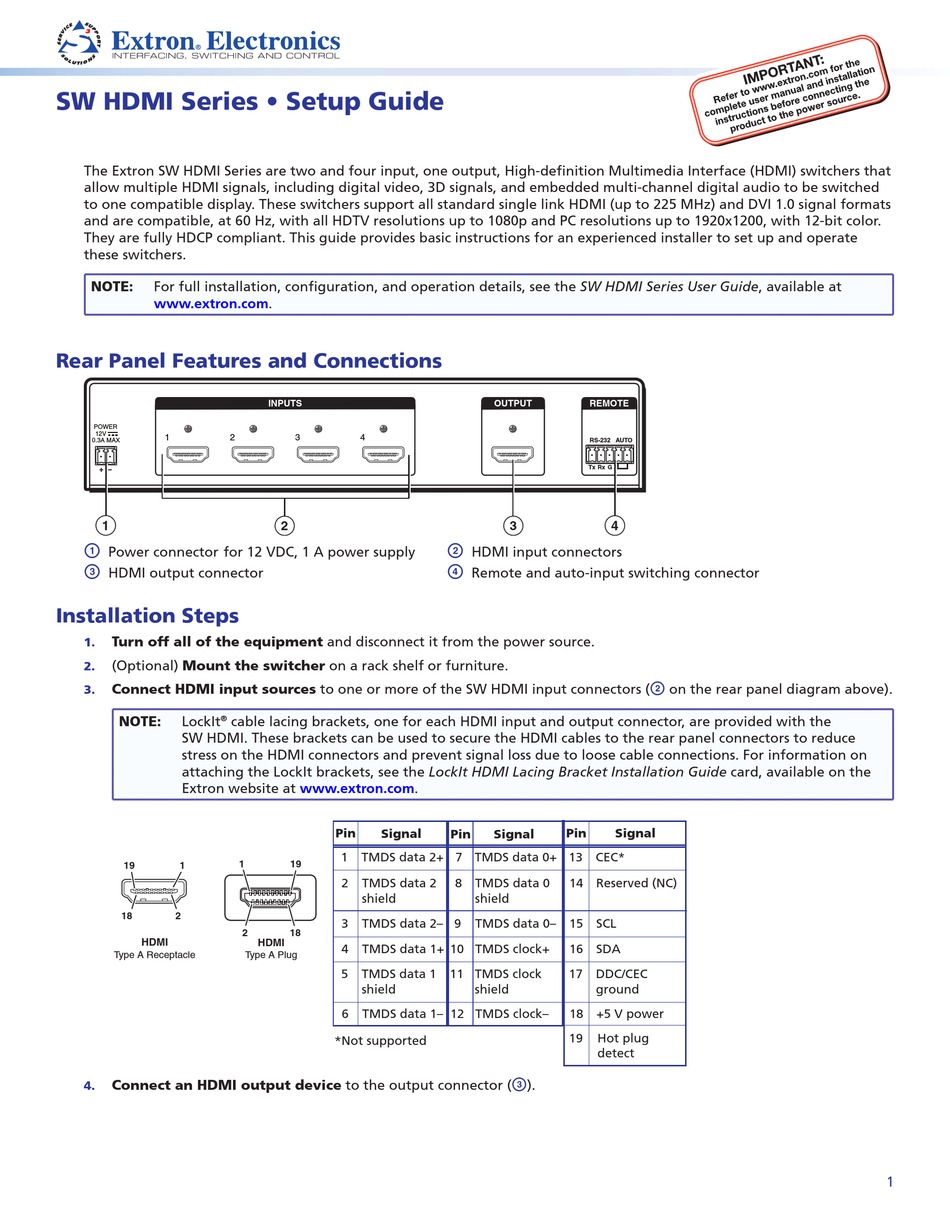

SW HDMI Series • Setup Guide
The Extron SW HDMI Series are two and four input, one output, High-definition Multimedia Interface (HDMI) switchers that
allow multiple HDMI signals, including digital video, 3D signals, and embedded multi-channel digital audio to be switched
to one compatible display. These switchers support all standard single link HDMI (up to 225 MHz) and DVI 1.0 signal formats
and are compatible, at 60 Hz, with all HDTV resolutions up to 1080p and PC resolutions up to 1920x1200, with 12-bit color.
They are fully HDCP compliant. This guide provides basic instructions for an experienced installer to set up and operate
these switchers.
NOTE: For full installation, configuration, and operation details, see the SW HDMI Series User Guide, available at
www.extron.com.
Rear Panel Features and Connections
POWER
12V
1 2
0.3A MAX
1
a
Power connector for 12 VDC, 1 A power supply
c
HDMI output connector

Installation Steps

Turn off all of the equipment and disconnect it from the power source.
1.
(Optional) Mount the switcher on a rack shelf or furniture.
2.
Connect HDMI input sources to one or more of the SW HDMI input connectors (
3.
NOTE: LockIt cable lacing brackets, one for each HDMI input and output connector, are provided with the
®
SW HDMI. These brackets can be used to secure the HDMI cables to the rear panel connectors to reduce
stress on the HDMI connectors and prevent signal loss due to loose cable connections. For information on
attaching the LockIt brackets, see the LockIt HDMI Lacing Bracket Installation Guide card, available on the
Extron website at www.extron.com.
19 1
18 2
HDMI
Type A Receptacle
Connect an HDMI output device to the output connector (
4.
INPUTS
3 4
2
Pin Signal
1 TMDS data 2+ 7 TMDS data 0+ 13 CEC*
1 19
2 TMDS data 2
shield
3 TMDS data 2– 9
2 18
HDMI
4 TMDS data 1+ 10 TMDS clock+
Type A Plug
5 TMDS data 1
shield
6 TMDS data 1– 12 TMDS clock–
*Not supported
OUTPUT REMOTE
RS-232 AUTO
Tx Rx G
4
3
b
HDMI input connectors
d
Remote and auto-input switching connector
Pin Signal Pin Signal
8 TMDS data 0 14 Reserved (NC)
shield
TMDS data 0– 15 SCL
16 SDA
11 TMDS clock 17 DDC/CEC
shield ground
18 +5 V power
19 Hot plug
detect
c
).
Product Category
b
on the rear panel diagram above).
