Kramer Galil 6-AW Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
Galil 6-AW All Weather Speakers
2 mounting U-brackets

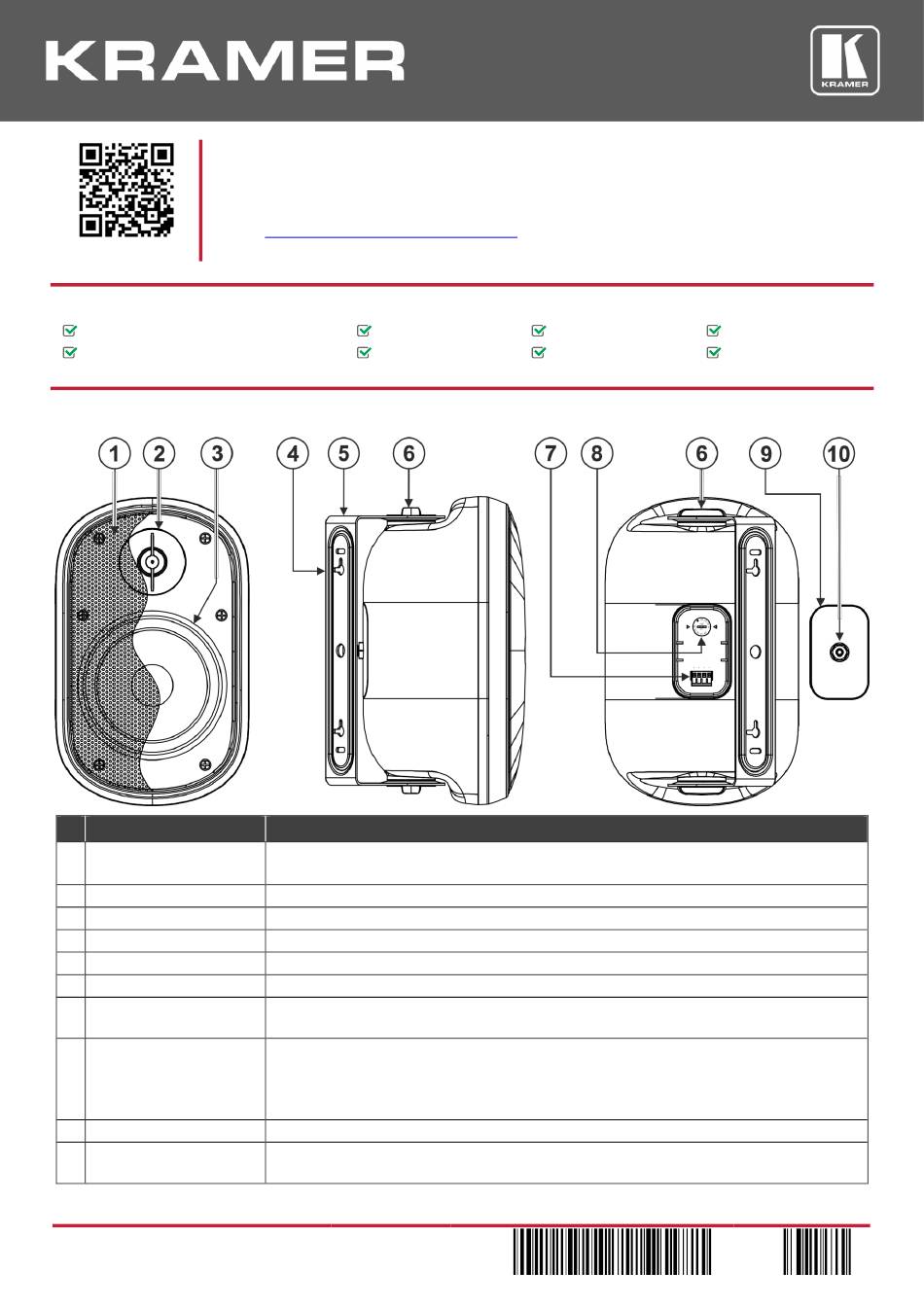

Step 2: Get to know your Galil 6-AW

# Feature
1 Speaker Grille
2 Tweeter
3 Woofer Driver
4 Keyhole Mounting Point
5 U-Bracket
6 U-Bracket knobs (2x2)
7 Input and Output Terminal
Block Connectors
8 Tap Selector
9 Protective Cover
10 Cable Gland/Grommet
Galil 6-AW Quick Start
Galil 6-AW Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/Galil 6-AW
upgrades are available.
4 knobs
4 mounting screws
Function
Protects the internal components of the speaker from foreign objects.
Do not remove the grille from the speakers.
Emits high frequency sounds.
Emits low frequency sounds.
Use to attach the U-bracket to a wall.
Use to mount the speaker onto a wall (allowing left/right rotation).
Use to fasten the U-bracket to the speaker (two knobs per bracket).
One +, - pair for the input and one +, - pair to output to the next speaker in an array
configuration.
Adjust each speaker to the appropriate tap setting:
For 70V: select 3.7W, 7.5W, 15W, or 30W; For 100V: select 7.5W, 15W, or 30W.
Alternatively, select 8 to bypass the transformer when connecting directly to an amplifier
without using the 70/100V array option.
Protects speaker cables and tap selector.
Pass the speaker cable through the cable gland/grommet to protect the connectors from outdoor
weather conditions.
Galil 6-AW for the first time.
to download the latest user manual and check if firmware
2 cable glands
2 grommets
P/N: 2 9 0 0 - 3 0 1 4 0 2 QS
1 Quick start guide
1 User manual
Rev: 2
