Summary of Contents for StarTech.com MPEXUSB3S2
- Page 1 MPEXUSB3S2 Instruction Manual Mini PCI Express USB 3.0 Adapter 2-Port Mini PCI Express SuperSpeed USB 3.0 Adapter Card Manual Revision:01/10/2011 For the most up-to-date information, please visit www.startech.com...
- Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
-
Page 3: Table Of Contents
Table of Contents Introduction .............. 1 Packaging Contents............. 1 System Requirements ............1 Installation ..............2 Hardware Installation ............2 Driver Installation ..............3 Specifications ............4 Technical Support ............ 5 Warranty Information ..........5... -
Page 4: Introduction

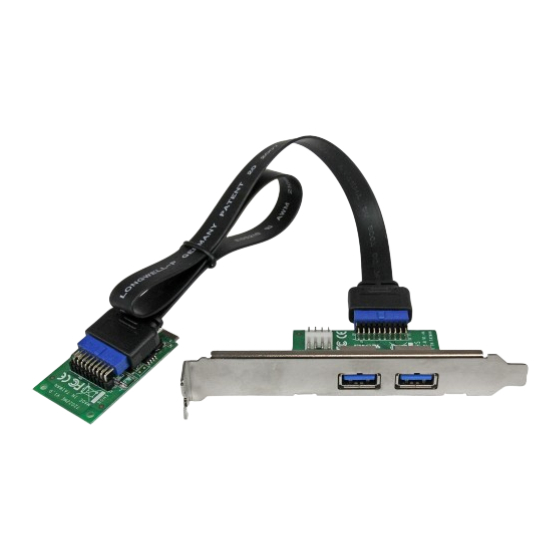

Introduction The MPEXUSB3S2 2-Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter adds two external USB to small form factor systems, for connecting a variety of different peripherals. Supporting the SuperSpeed USB 3.0 specification, each port is capable of supporting transfer speeds up to 5 Gbps (10x faster than USB 2.0) and providing up to 900 mA of... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your Mini PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is... -
Page 6: Driver Installation
5. Place the expansion card bracket from the Mini Card in the opening and fasten the card’s bracket to the rear of the case. NOTE: If the system case/chassis only supports full profile brackets, replacing the pre-installed low profile bracket with the included full profile installation bracket may be necessary. -
Page 7: Specifications
Specifications PCI Express Mini Card Host Interface specification 1.2 Full Length Mini PCIe Form Factor Full/Low Profile Card Bracket Chipset ID NEC uPD720200 External Connectors 2 x USB 3.0 type A female Internal Connectors 1 x SP4 power male USB 3.0 revision 1.0 Supported Standards Intel xHCI revision 0.96 Maximum Data Transfer Rate... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
