StarTech.com MDP2DPDVHD Quick Start Manual

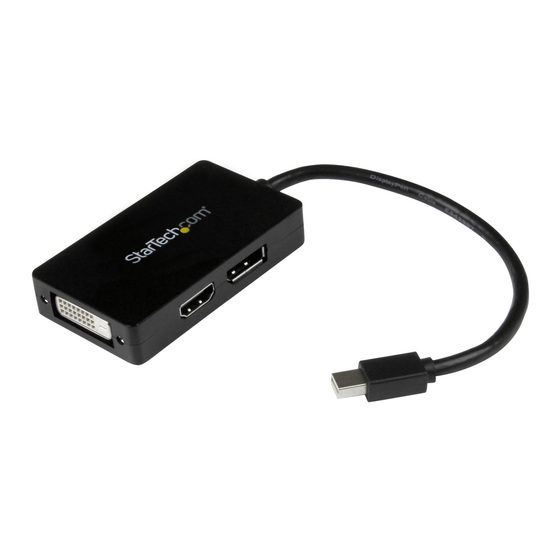

Mini DisplayPort to DisplayPort, DVI or HDMI™ Multifunction Adapter

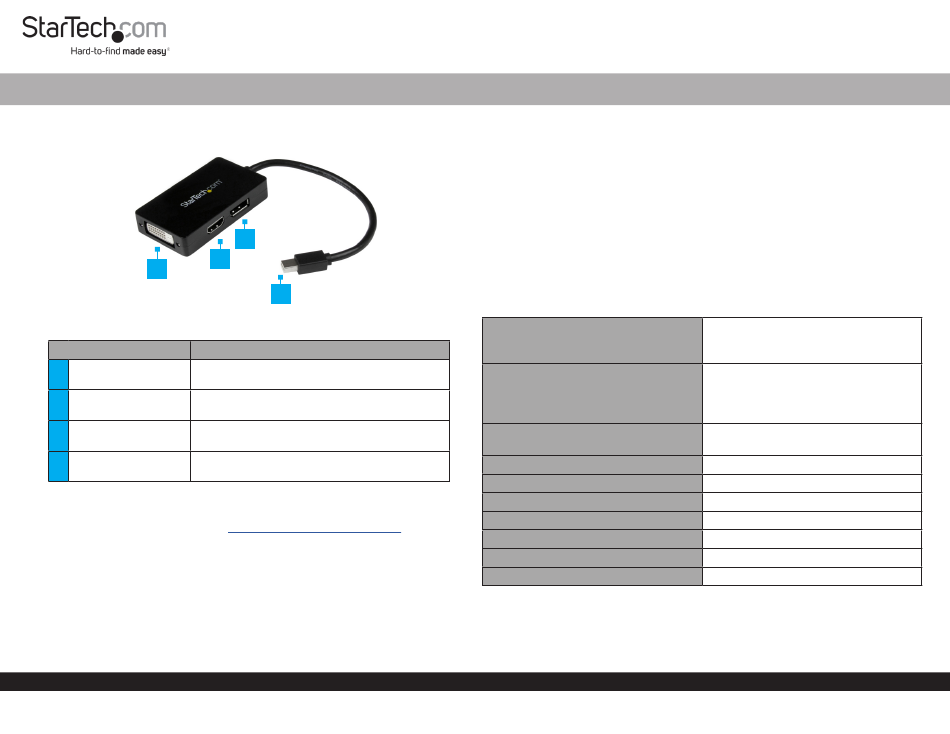

Product Diagram (MDP2DPDVHD)
1
Component
• Used to connect a DVI-D Display Device to the
1 DVI-D Connector
Video Adapter.
• Used to connect a HDMI Display Device to the
2
HDMI Port
Video Adapter.
• Used to connect a DisplayPort Display Device
3 DisplayPort Port
to the Video Adapter.
Mini DisplayPort • Used to connect the Video Adapter to the
4
Connector Host Computer.
Requirements
For the latest requirements, please visit www.startech.com/MDP2DPDVHD.
• DisplayPort enabled computer system with available Mini
• DisplayPort connector
• DisplayPort, DVI or HDMI enabled display device (e.g. monitor) with appropriate
cable
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
2
4
Function
Installation
1. Connect the Mini DisplayPort Connector on the Video Adapter to the Mini
DisplayPort port on the Host Computer. The Host Computer can be turned on or
off check documentation for the Host Computer for details).
2. Power on the Display Device.
3. Connect the Display Device (i.e. monitor) to the Video Adapter using the
appropriate type of video cable (not included).
NOTE: Only one video output is supported on the video adapter at a time. If multiple
connections are made, only one of the outputs will function in order of: DisplayPort
then HDMI then DVI.
Specifications
Video Signal
Connectors
Maximum Video Resolution
Enclosure Material
Operating Temperature
Storage Temperature
Humidity
Integrated Cable Length
Dimensions (LxWxH)
Weight
Quick-Start Guide
• DisplayPort
• DVI-D (Digital)
• HDMI
• Mini DisplayPort male x 1
• DVI-D 25-pin female x 1
• HDMI x 1
• DisplayPort female x 1
• DisplayPort 2560x1600
• DVI/HDMI 1920x1200
• Plastic
• 0°C ~ 70°C (32°F ~ 158°F)
• -10°C ~ 80°C (14°F ~ 176°F)
• 10% ~ 85% RH
• 150mm / 0.5ft
• 79.0mm x 50.0mm x 16.0mm
• 64g
Manual Revision: March 28, 2019 12:58 PM
