Instruction Manual

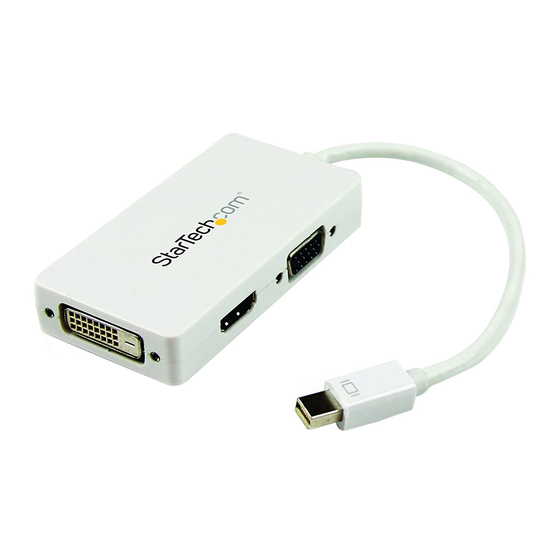

Mini DisplayPort® to HDMI/VGA/DVI Adapter
MDP2VGDVHD / MDP2VGDVHDW
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 X Mini DisplayPort to HDMI/VGA/DVI Adapter
• 1 X Instruction Manual
System Requirements
• Mini DisplayPort enabled Computer System
• HDMI, VGA, or DVI enabled display device
(e.g. Projector/Television/Monitor Etc.)
• M/M Video Cable (HDMI, VGA or DVI depending on display device)
HDMI video
output
DVI-D video
output
For the most up-to-date information, please visit: www.startech.com
VGA video
output
Mini-DisplayPort
video input
*actual product may vary from photos
Installation
1. Ensure your computer system and display device are powered off.
2. Connect the Mini DisplayPort video input on the MDP2VGDVHD /
MDP2VGDVHDW to the Mini DisplayPort video output port on the
host computer system.
3. Connect the video cable (not included) from the appropriate
video output (HDMI/VGA/DVI) on the MDP2VGDVHD to the video
input Display device (Projector, Television, Monitor, Etc.) to the
video cable (not included).
4. Power on the Display device followed by your computer system.
NOTE: Only one video output is supported on the video
adapter at a time. If multiple connections are made, only one
of the video outputs will function.
Manual Revision: 03/25/2014
