Instruction Manual

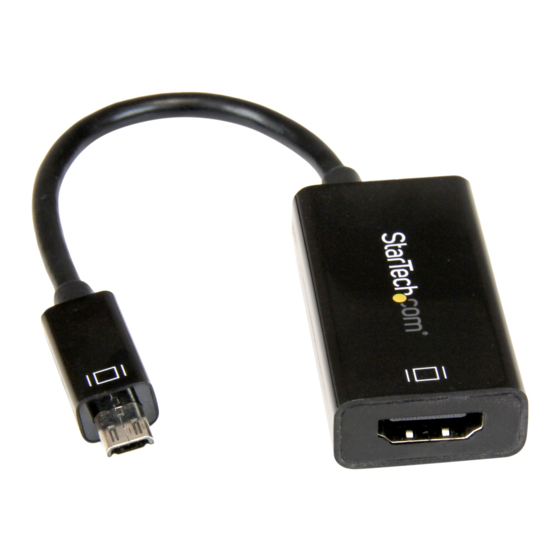

MHL™ Samsung Galaxy™ 11-pin Adapter – Micro USB to HDMI®
MHD2HDF11
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x MHL™ to HDMI® Adapter
System Requirements
• MHL™ enabled Samsung Galaxy™ source device (i.e. Smartphone)
• HDMI® enabled video display device (i.e. television, projector)
• HDMI® Cable (male/male)
• Micro USB Cable (Typically included with Smartphone)
Hardware Installation and Operation
1. Connect the "Samsung Galaxy™ MHL™ Breakout Cable" to the
Micro USB Port on your Samsung MHL™-enabled video source
device.
2. Connect an HDMI® Cable (m/m) from the "HDMI Output Port" on
the MHD2HDF11, to the HDMI input port on your HDMI-enabled
video display device (i.e. television, projector).
3. Connect a USB Power source to the "Micro USB Power Port" on the
MHD2HDF11 using the USB A to USB Micro B cable included with
your mobile device.
4. The MHL-enabled Samsung device output will now appear on the
HDMI® display.
For the most up-to-date information, please visit: www.startech.com

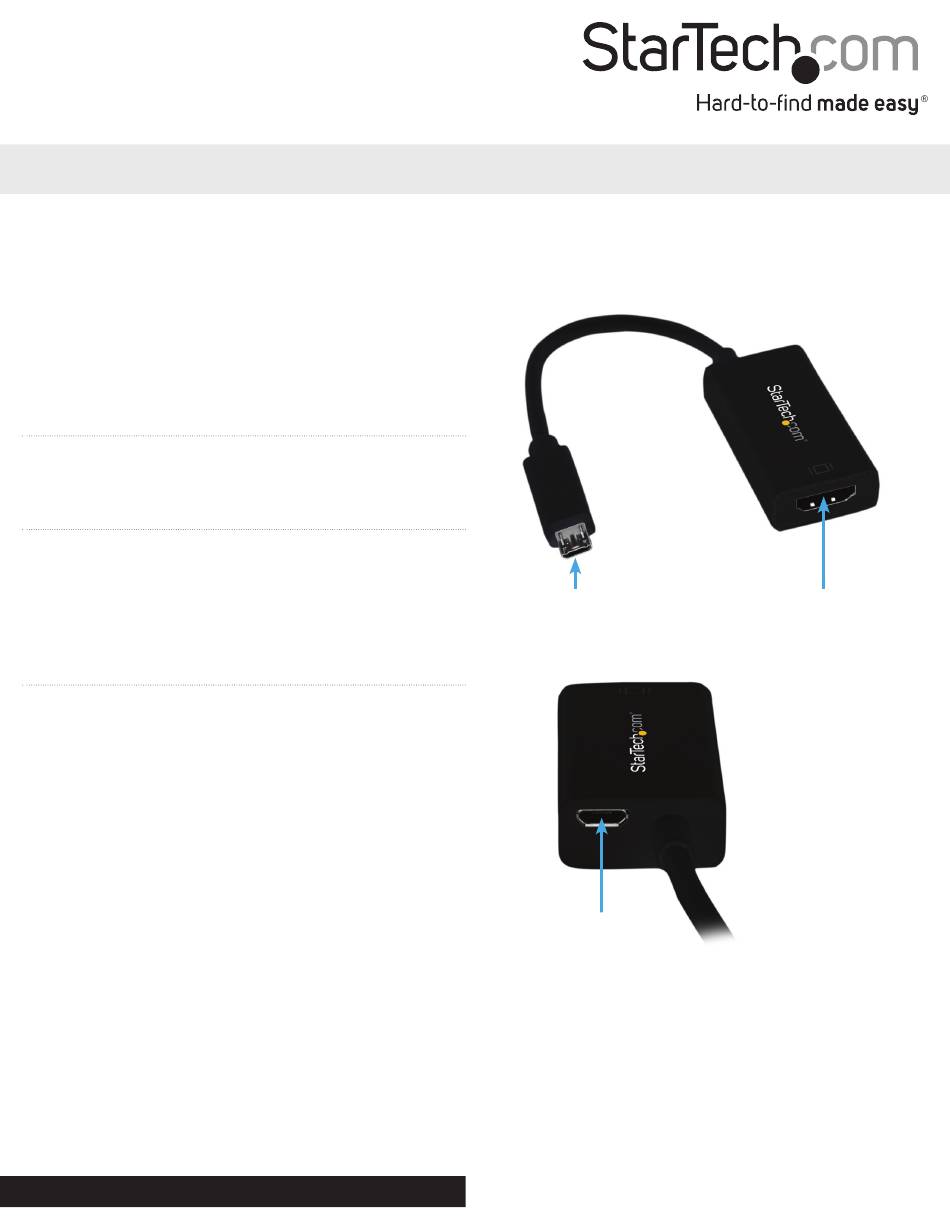

Samsung Galaxy™
MHL™ Breakout Cable
Micro USB
Power Port
*actual product may vary from photos
HDMI® Output Port
*actual product may vary from photos
Manual Revision: 05/27/2013
