StarTech.com MSAT2SAT3 Instruction Manual

Instruction Manual
mSATA to SATA port Adapter
MSAT2SAT3
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x mSATA to SATA Adapter
• 2 x Installation Screws
• 1 x Instruction Manual

System Requirements

• SATA Hard Drive
• Computer System with:
Available mSATA port on the motherboard
Available SATA Power connector on the power supply

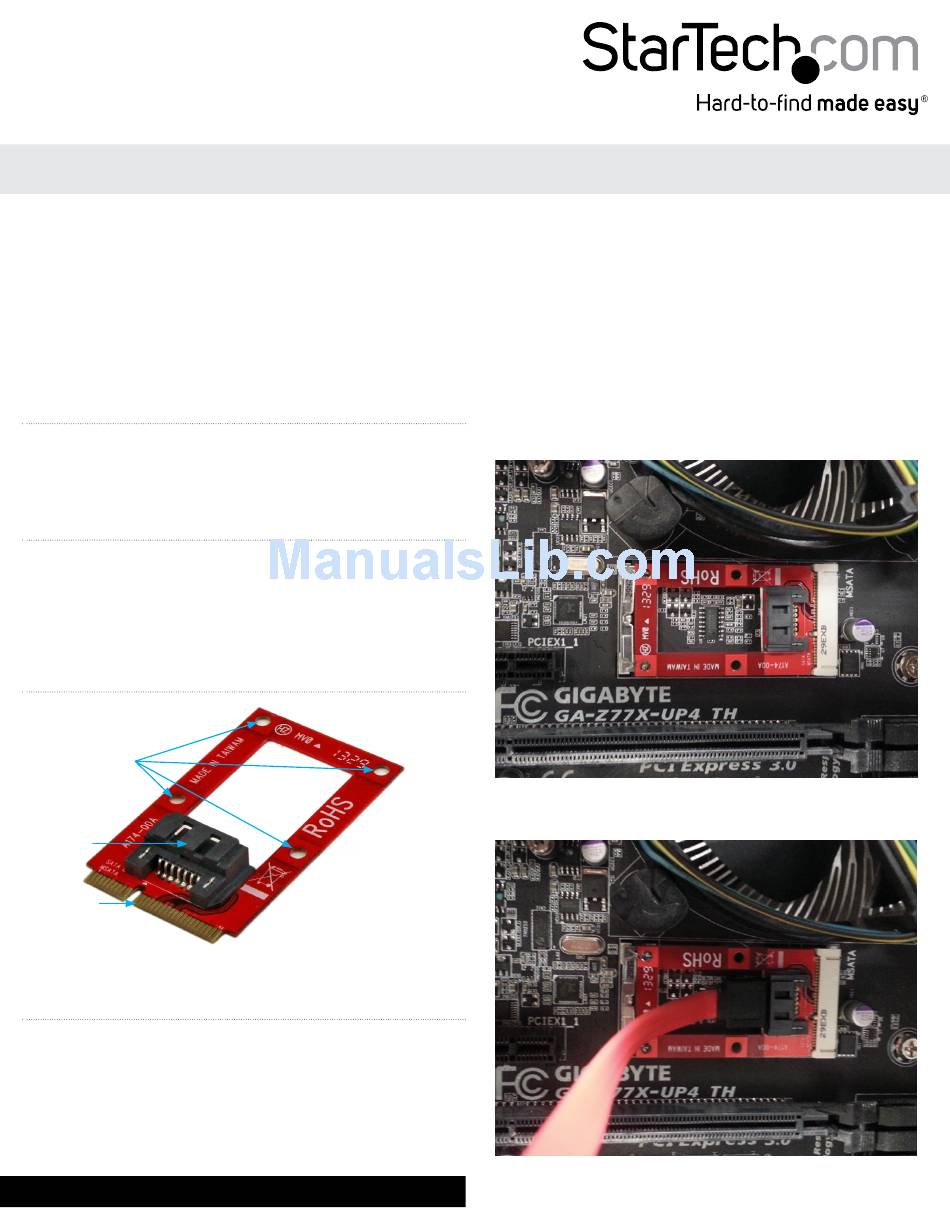

Product Overview

Installation Holes
SATA Port
mSATA Port

Adapter Installation

WARNING! Hard Drives and format adapters require careful
handling. If you are not careful with your Drive, lost data may result.
Always handle your drive with caution. Be sure that you are properly
grounded by wearing an anti-static strap when handling computer
components or discharge yourself of any static electricity build-up
by touching a large grounded metal surface (such as the computer
case) for several seconds.
For the most up-to-date information, please visit: www.startech.com
1. Slide the mSATA to SATA adapter into the mSATA connector on
the system motherboard.
2. Secure the drive into place.
If the board has an installation clip, gently apply pressure to the
top center of the adapter until it locks into place on either side of
the SSD clip. To release the adapter refer to your motherboards
user manual for detailed instruction.
or
If the board has mounting holes. Drive each of the included
installation screws through the matching installation holes on the
adapter into the mounting holes on the motherboard.
3. The SATA port on the adapter now functions as a standard SATA
port to the specification of the motherboard's mSATA port.
*actual product may vary from photos
Manual Revision: 10/07/2013
