StarTech.com MDP2HDMIUSBA Instruction Manual

Instruction Manual
Mini DisplayPort® to HDMI® Adapter with USB Audio
MDP2HDMIUSBA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x MDP2HDMIUSBA adapter
System Requirements
• DisplayPort® enabled computer system with available mini
DisplayPort® port
• USB enabled computer system with available port
• HDMI® enabled display device
Installation
1. Make sure the computer system and display device are
turned off.
2. Connect the mini DisplayPort® connector into the host
computer system's video card.
3. Connect the USB connector on the adapter into an
available USB port on the host computer system.
4. Connect a standard male/male HDMI® cable (not included)
from the adapter to an available HDMI® connector on the
display device.
5. Power on the display device.
6. Power on the computer system. The Power LED on the
adapter should light up.
7. The computer system should automatically detect the display
device. Driver installation or special setup requirements
depend on the connected display device. Consult any
documentation included with your display device.
8. The operating system should also automatically detect and
install a new audio output device.
9. If you wish to send audio over HDMI®, check the audio
properties for the operating system, to make sure the USB
adapter is set as the default audio device.
For the most up-to-date information, please visit: www.startech.com

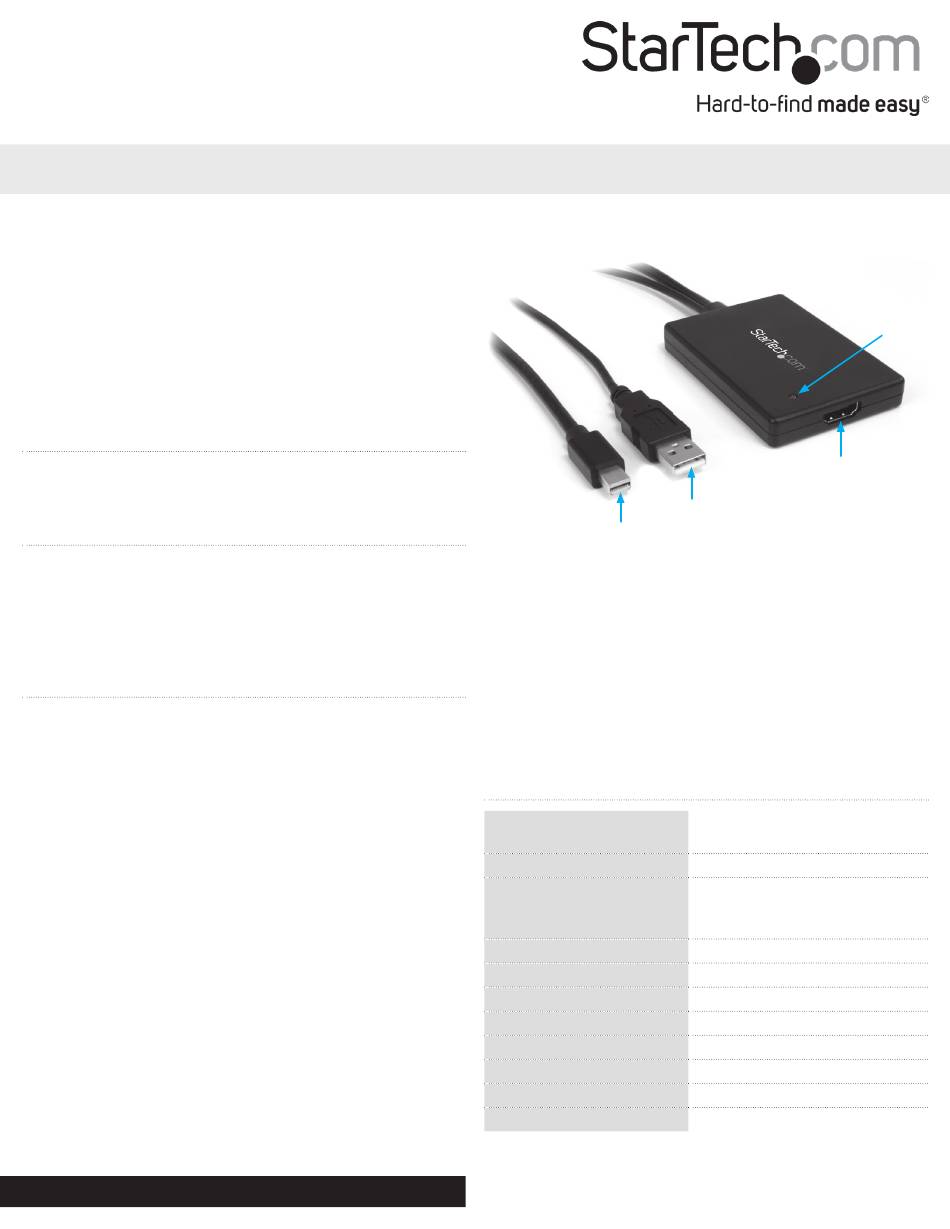

Mini
DisplayPort®
connector
NOTE: This will disable audio output from any speakers/
headphones currently connected to the computer system.
10. If you do not wish to use audio over HDMI®, set the default
audio device back to the original audio output device (e.g.
sound card) for your system.
Specifications
Bus Interface
Video Signal
Connectors
LEDs
Integrated Cable Length
Maximum Video Resolution
Audio Support
HDCP Support
Operating Temperature
Storage Temperature
Humidity
Power LED
HDMI®
connector
(output)
USB connector
*actual product may vary from photos
Mini DisplayPort® 1.1a
USB 2.0
High speed HDMI®
1 x Mini DisplayPort® male
1 x USB type A male
1 x HDMI® female
1 x Power
60cm / 2ft
1920x1200 / 1080p
Yes - 2 channel LPCM
Yes
5°C ~ 35°C (41°F ~ 35°F)
0°C ~ 70°C (32°F ~ 158°F)
0 ~ 80% RH
Manual Revision: 03/28/2019
