4-drive removable 2.5” sas/ sata mobile rack backplane

Advertisement

Quick Links

SATSASBAY425
Instruction Manual
SATA Hard Drive Backplane
4-Drive Removable 2.5" SAS/
SATA Mobile Rack Backplane

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATSASBAY425 and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com SATSASBAY425

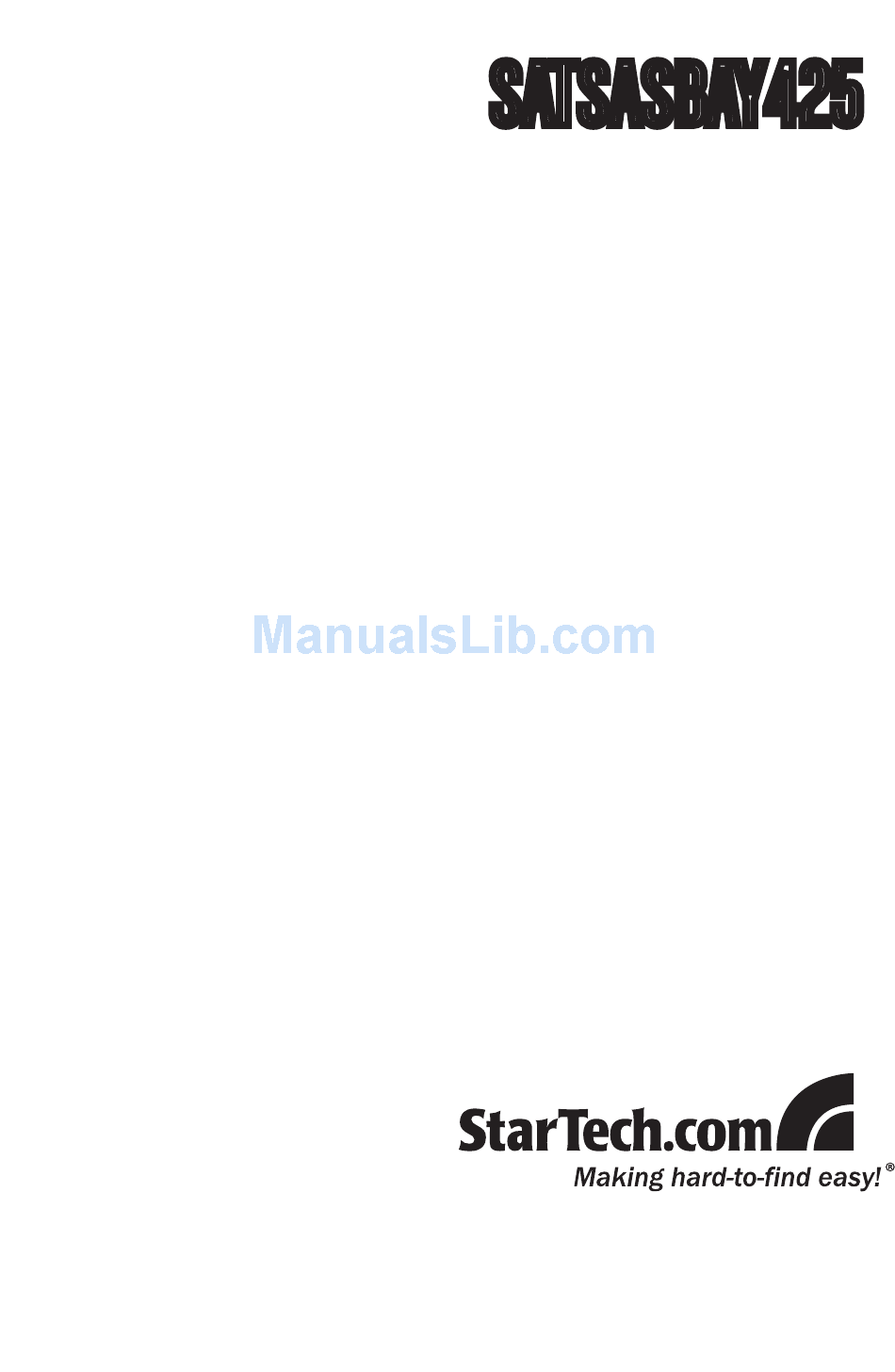

  • Page 1 SATSASBAY425 Instruction Manual SATA Hard Drive Backplane 4-Drive Removable 2.5” SAS/ SATA Mobile Rack Backplane...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
  • Page 3: Table Of Contents

    Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................5 Specifications ..............6 Technical Support ............7 Warranty Information ............7...
  • Page 4: Introduction

    Introduction This StarTech.com SATSASBAY425 4-Drive Removable SAS/SATA Backplane/Mobile Rack offers a convenient and efficient way to maximize the storage density of your PC or Server. The backplane can hold up to four 2.5” SAS and/or SATA hard drives (9.5mm, 12.5mm, or 14.8mm thick) in a single 5.25in drive bay.
  • Page 5: Front View

    Front View Power/Activity Tray Release Latch Rear View 7-pin SAS/SATA connectors LED On/Off switch LP4 Power Cooling Fans connector...
  • Page 6: Installation

    Open an unused 5.25” external bay in the computer case. Slide the SATSASBAY425 into the 5.25” bay, per the installation instructions for the computer system/case and secure to the frame. Connect an LP4 molex power connector from the computer power supply to the power connector on the rear of the backplane.
  • Page 7 Remove the drive trays from the backplane by pressing the colored tray release latch to the left and swing it open. Pull the drive trays out of the backplane. If using a 9.5mm height drive, then the top of the drive tray does not need to be removed.
  • Page 8: Driver Installation

    Slide the drive trays back into the backplane and lock the trays in place by closing the swing handle and making sure the latch locks properly. Driver Installation No driver installation is required for any operating system, as a backplane is a pass-through device, so will not visible to the computer system.
  • Page 9: Specifications

    Specifications SATA Bus Interface Maximum Number of Hard Drives 4 x 7-pin SATA/SAS Connectors 1 x LP4 Power LEDs 4 x Power/Activity 2 x 40mm Insertion Rating 25,000 cycles 2.5” SATA, 9.5/12.5mm height Compatible Hard Drives 2.5” SAS, 14.8mm height Operating Temperature -10°C to 70°C (14°F to 158°F) Storage Temperature...
  • Page 10: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
  • Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
